SOME RECOMMENDED DEVELOPMENT TECHNOLOGIES



Locally built Moringa sand filters for water purification.



How to make a Moringa sand filter.



Information supplied by courtesy of:



Centre for Affordable Water and Sanitation Technology (CAWST), Canada.



and



Rural Africa Water Development Project (RAWDP), Nigeria.



A general description:



A step by step description:

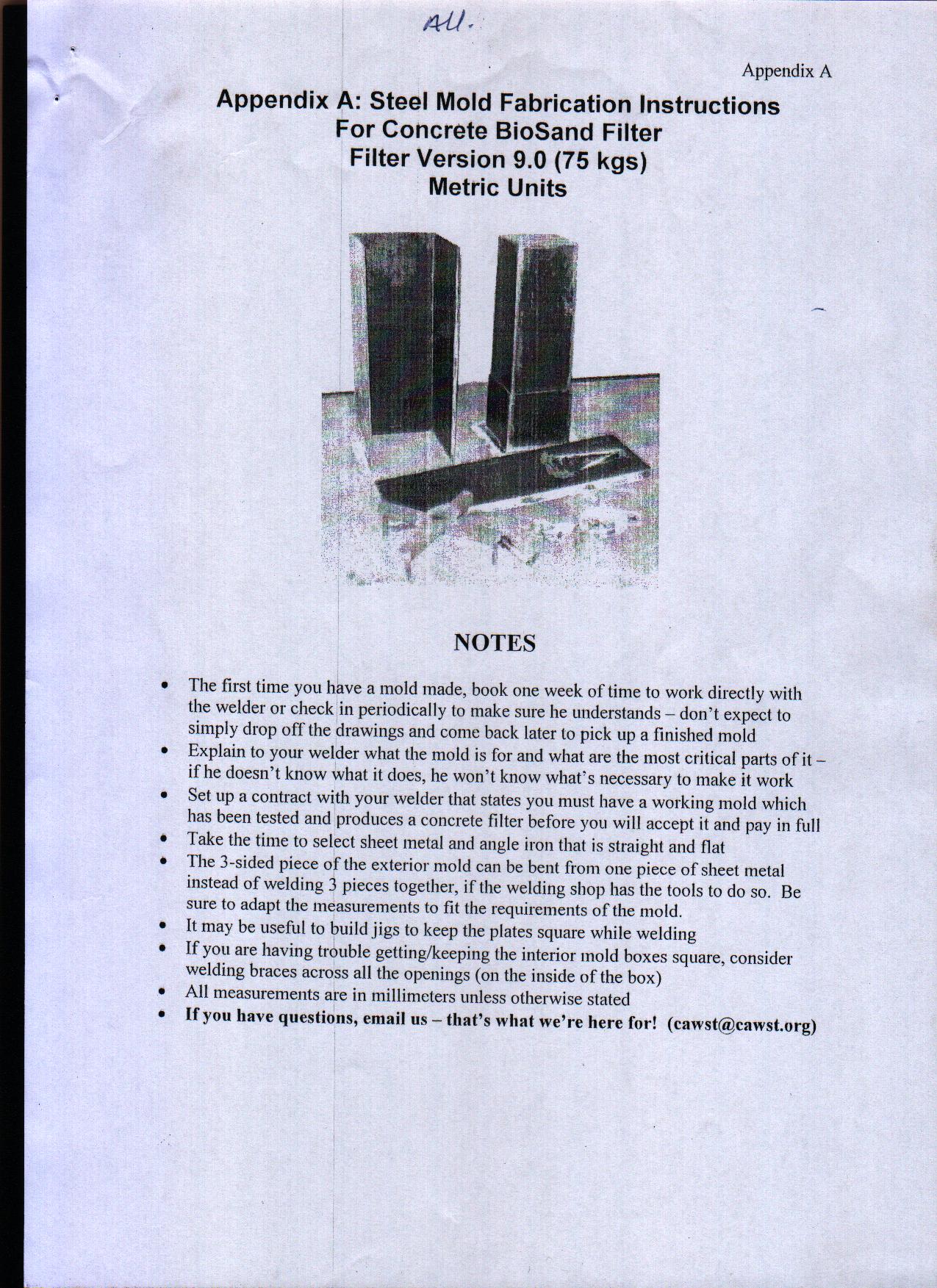

Moulds for the external filter body.

General advice.

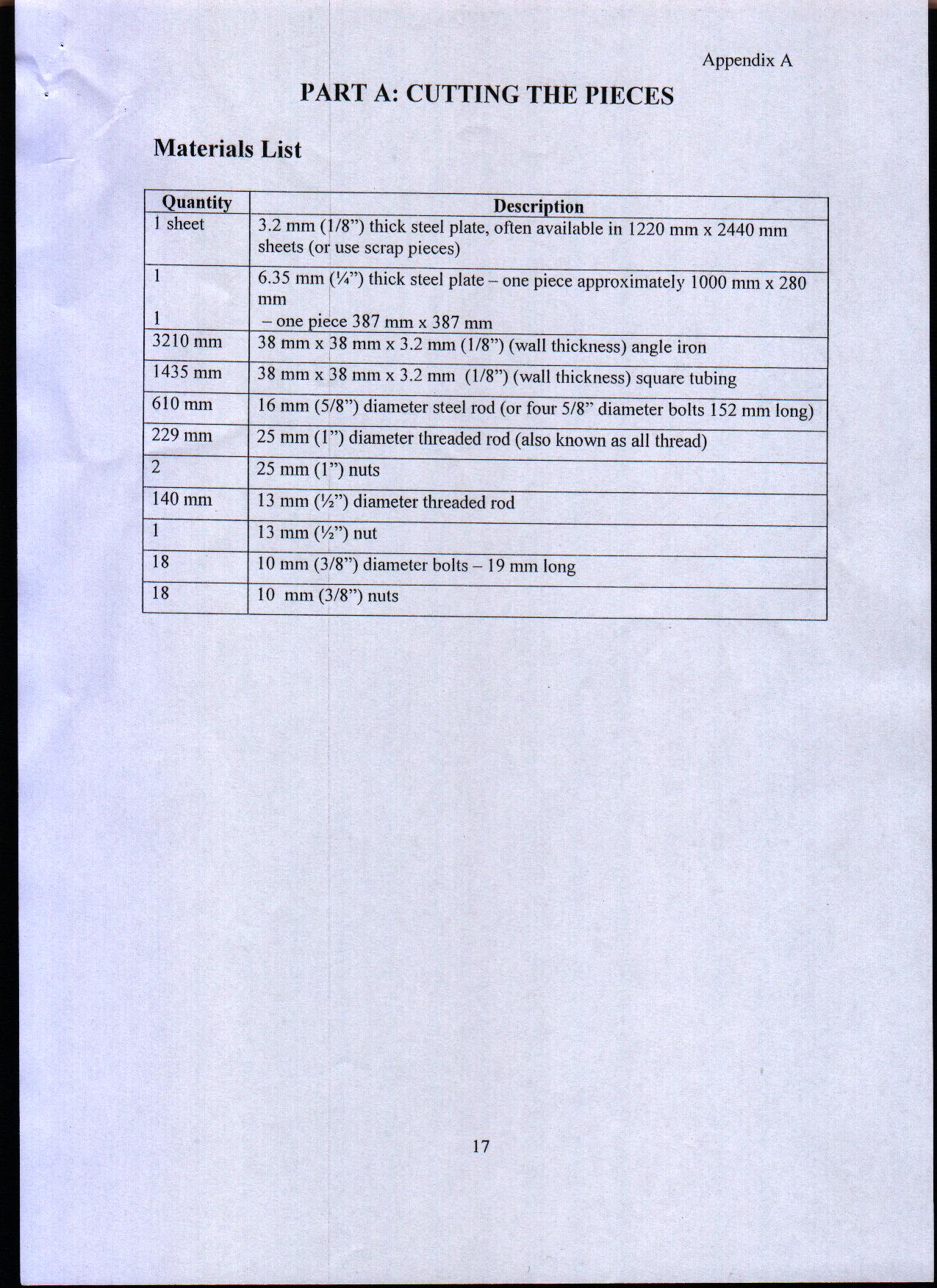

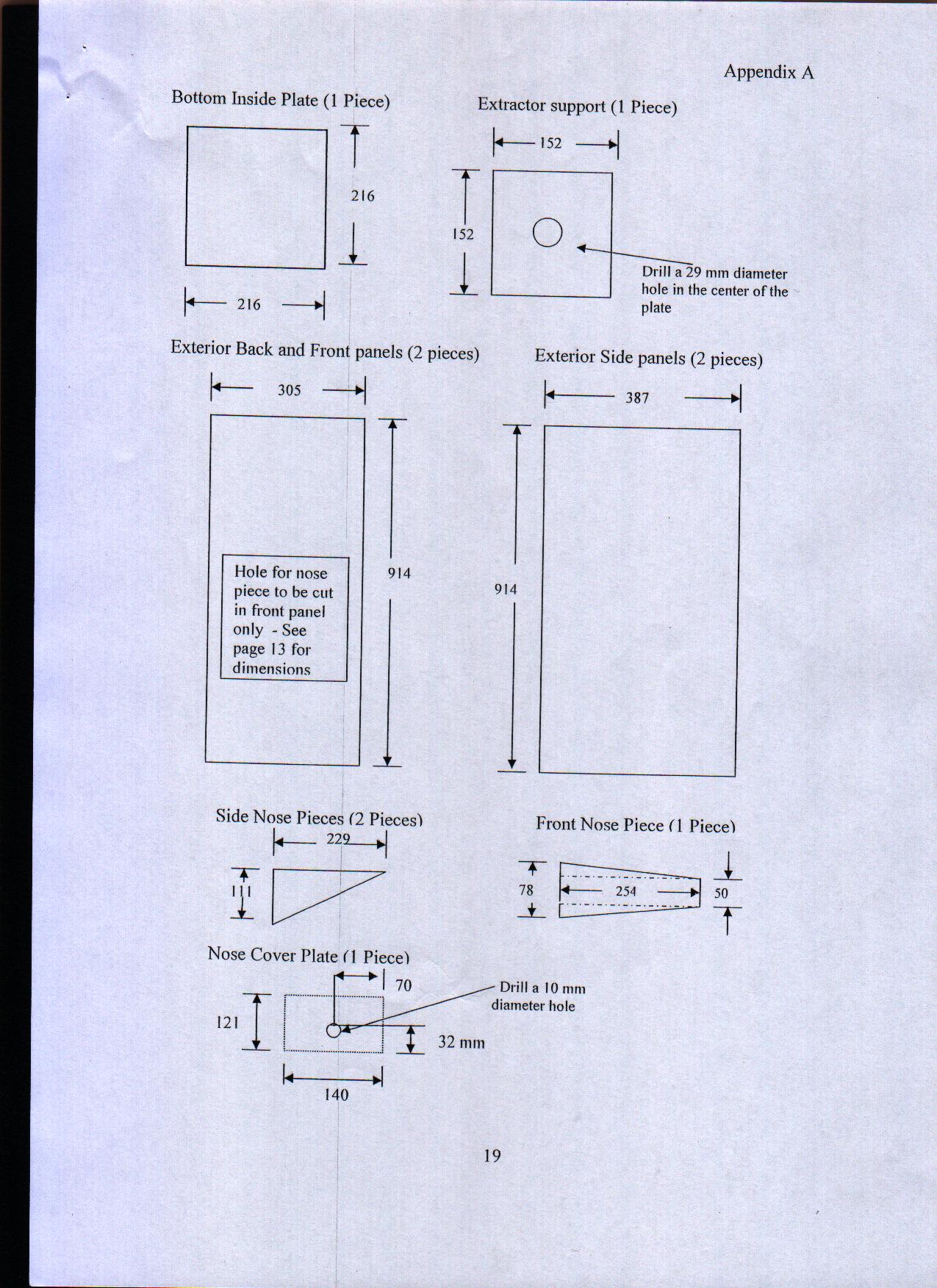

Materials list.

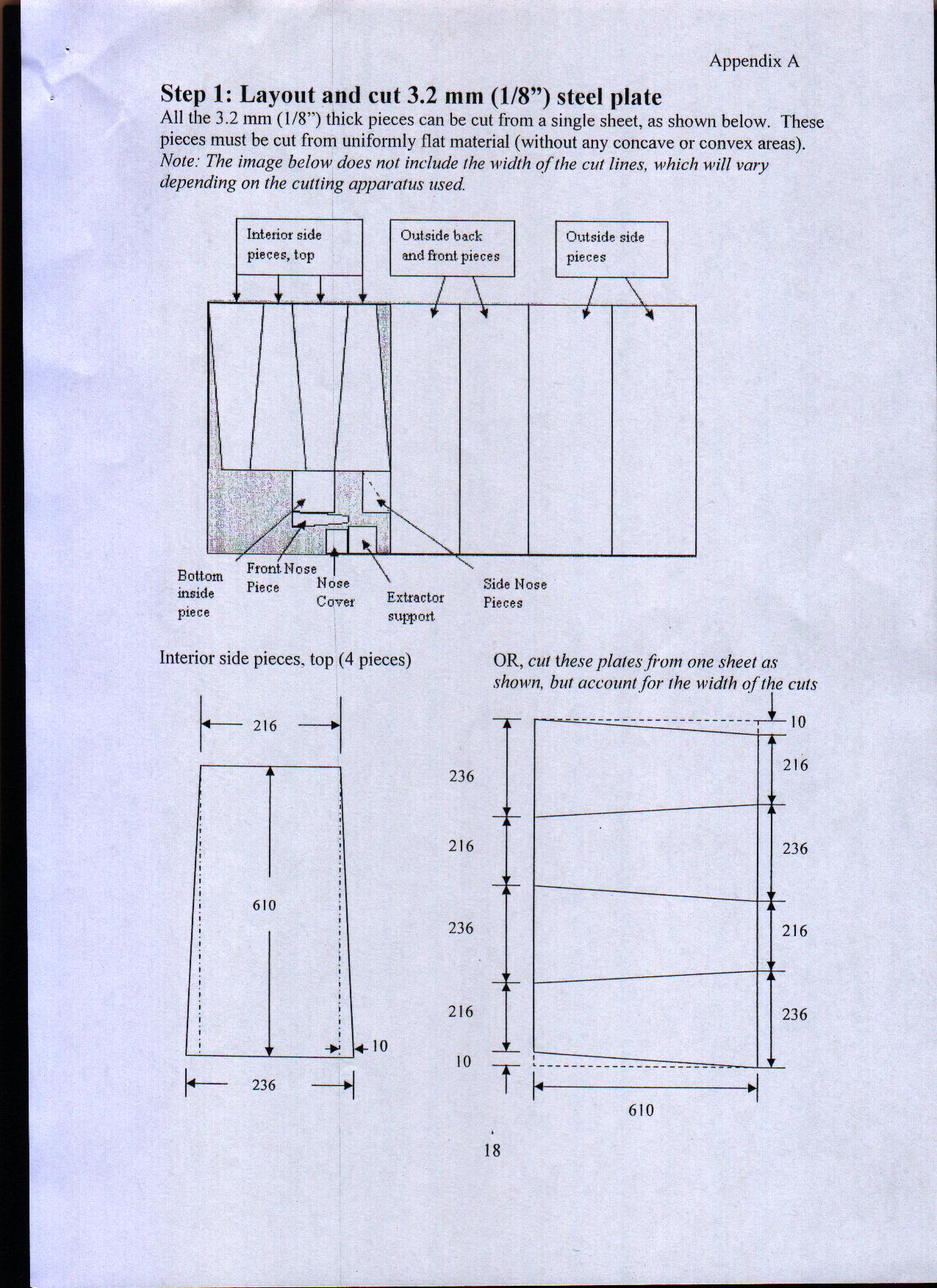

Step 1.

Step 1 (continued).

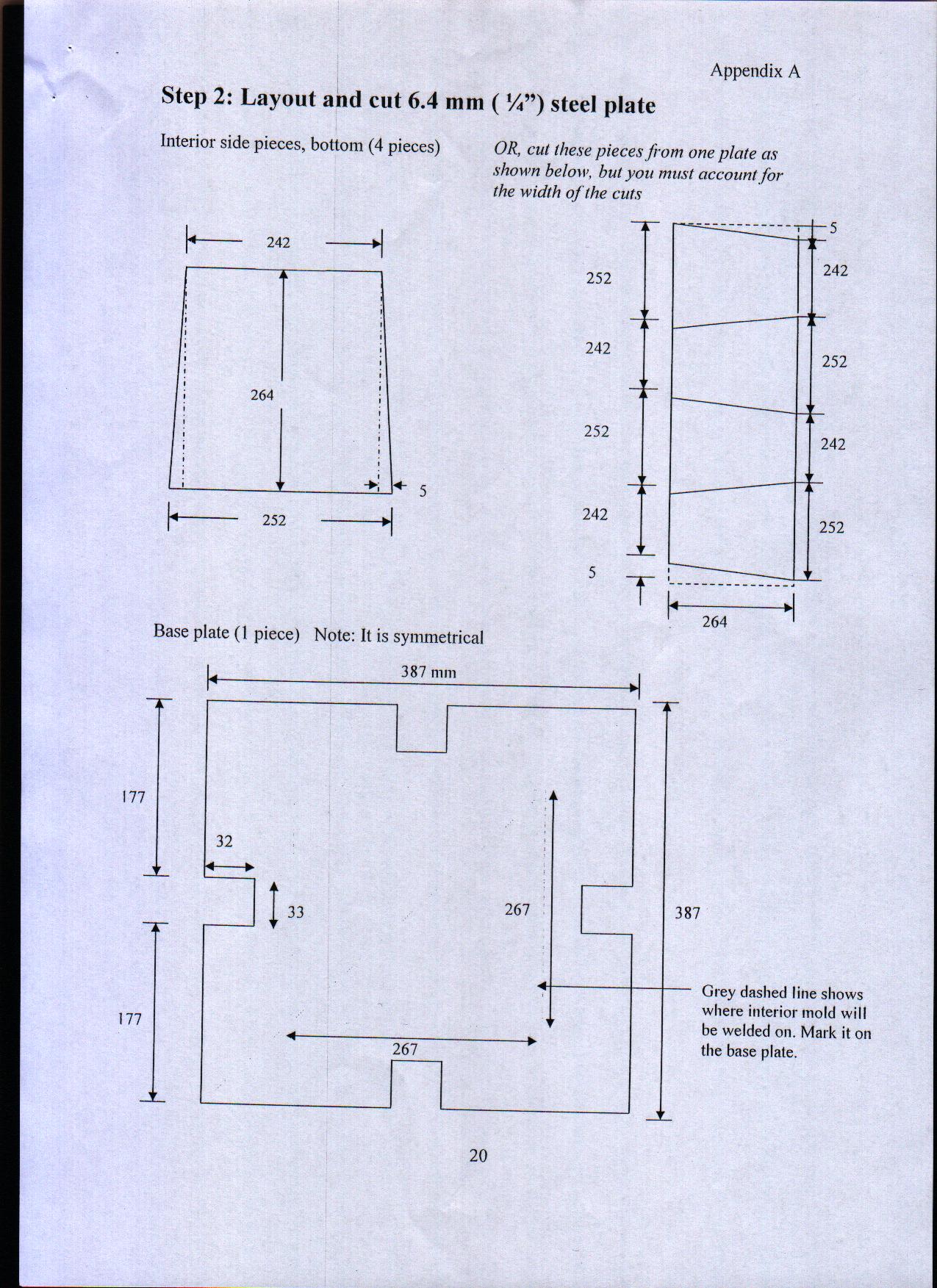

Step 2.

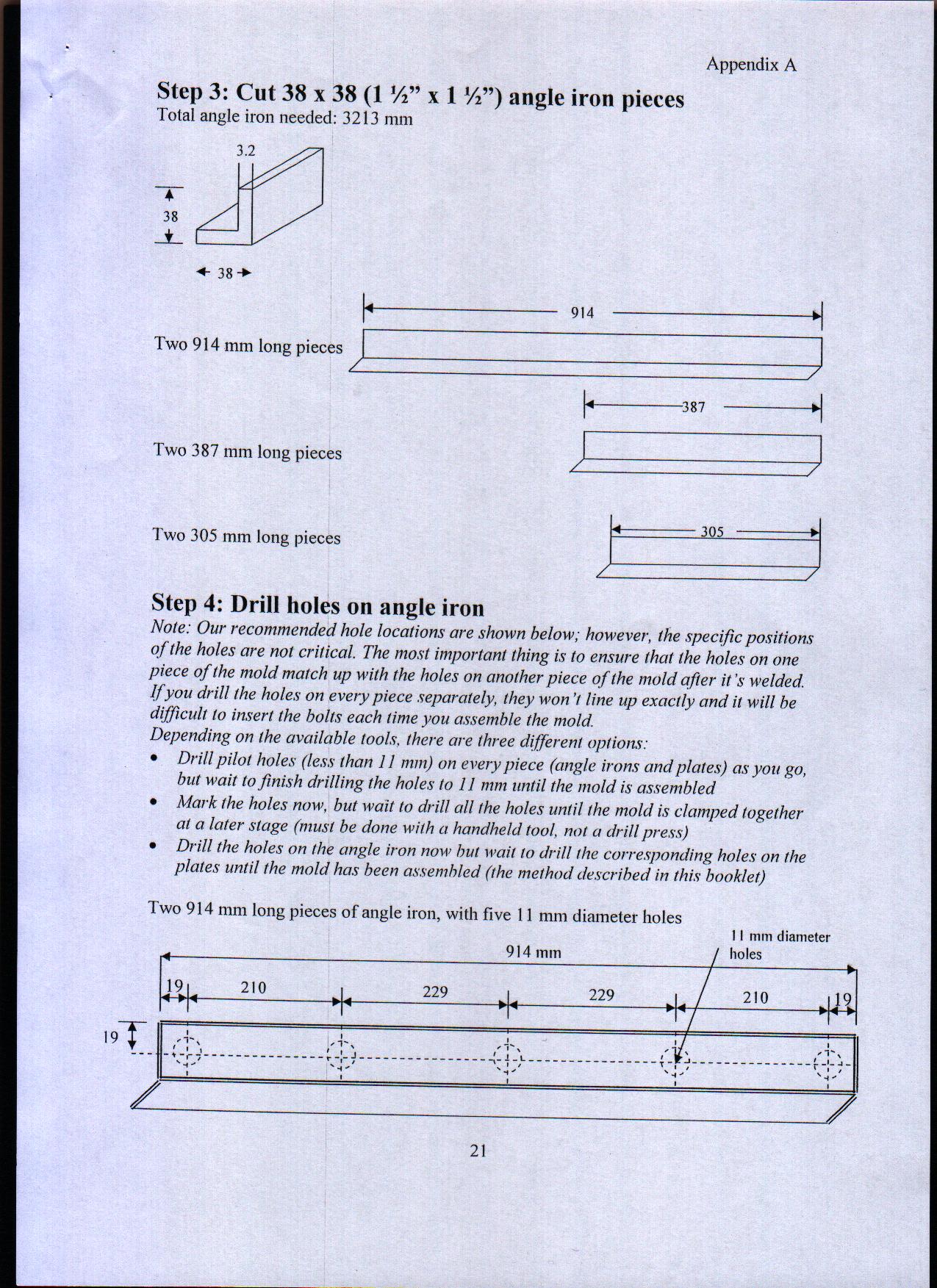

Steps 3 and 4.

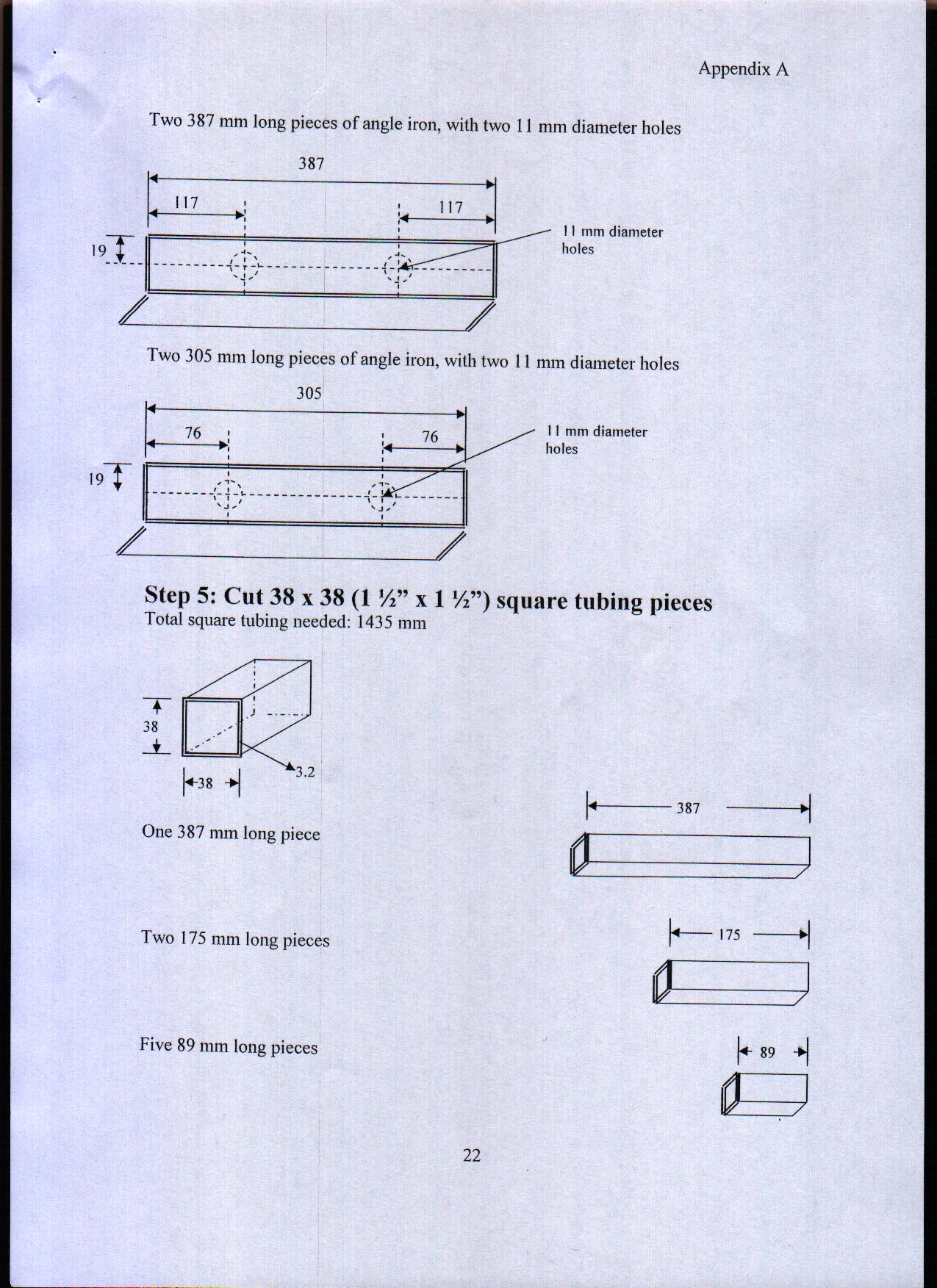

Step 5.

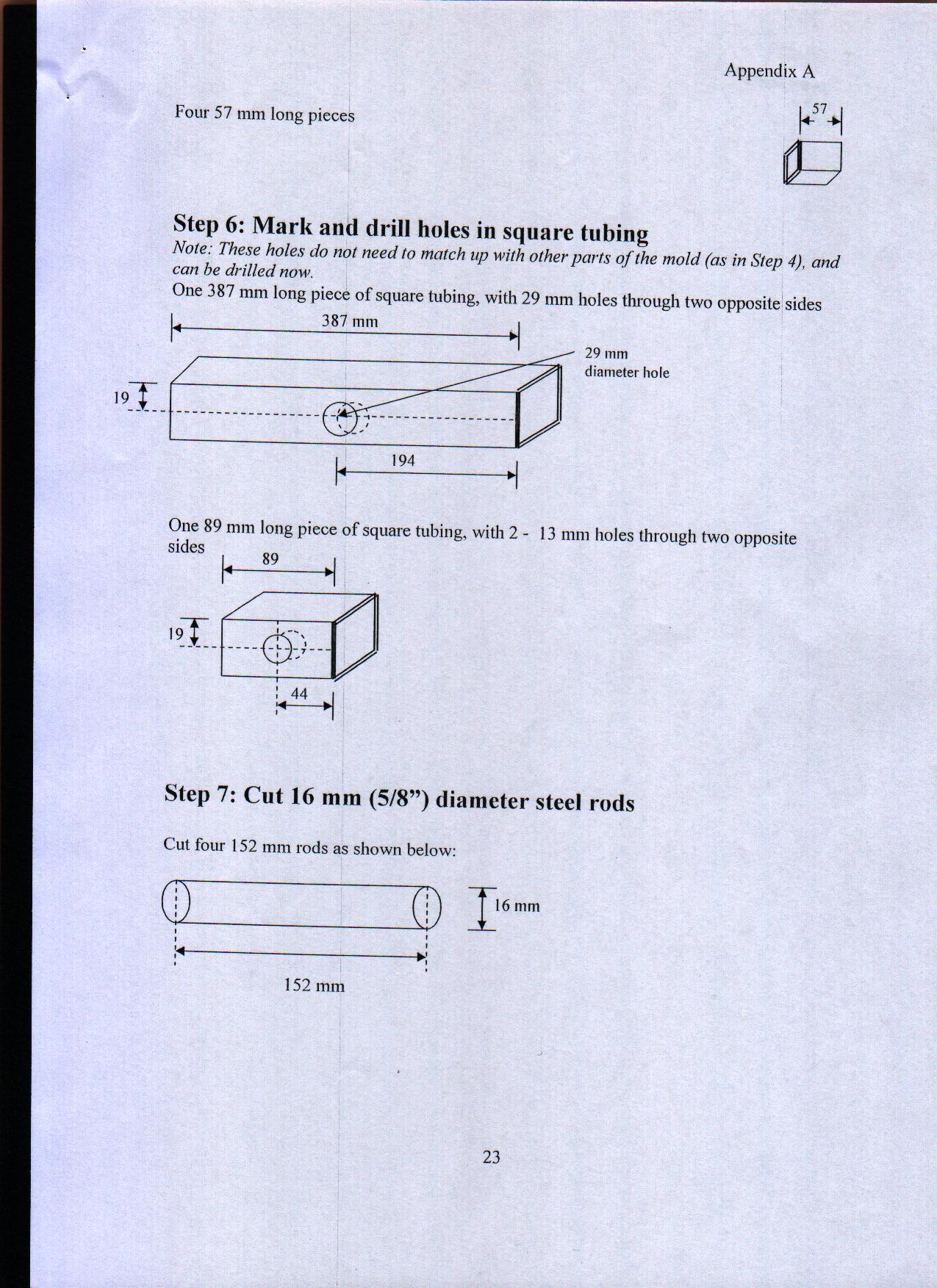

Steps 6 and 7.

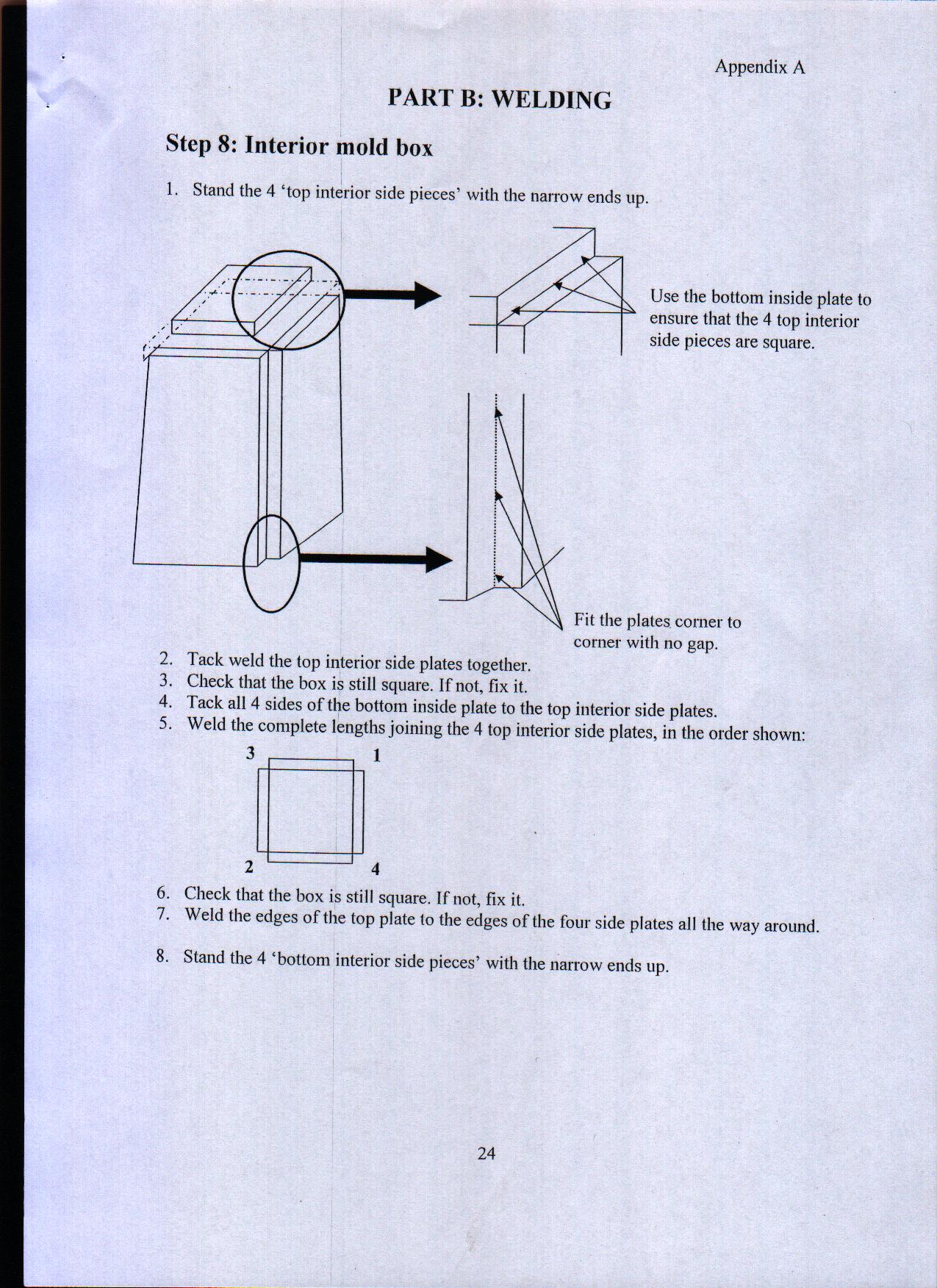

Step 8.

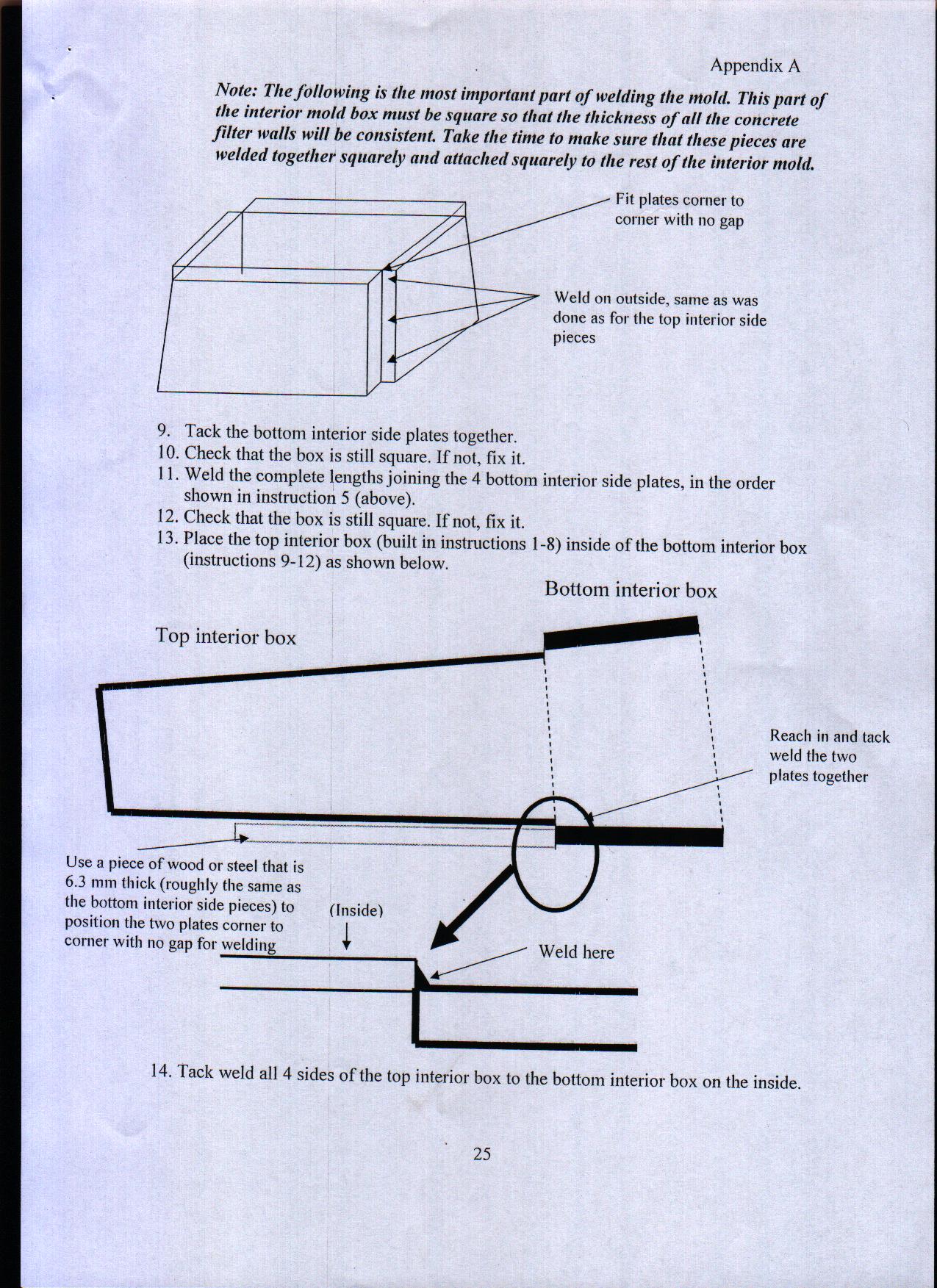

Step 8 (continued).

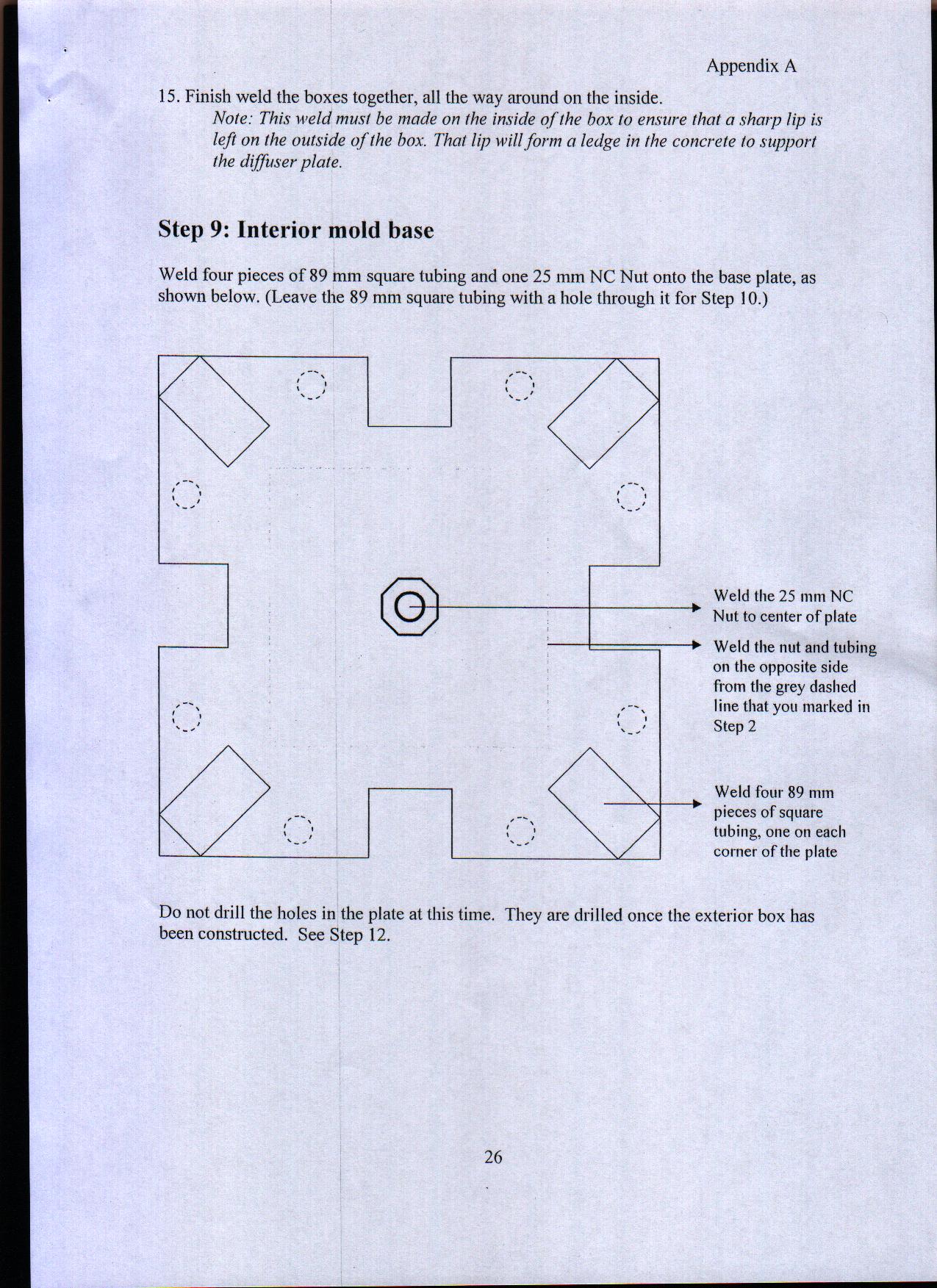

Step 9.

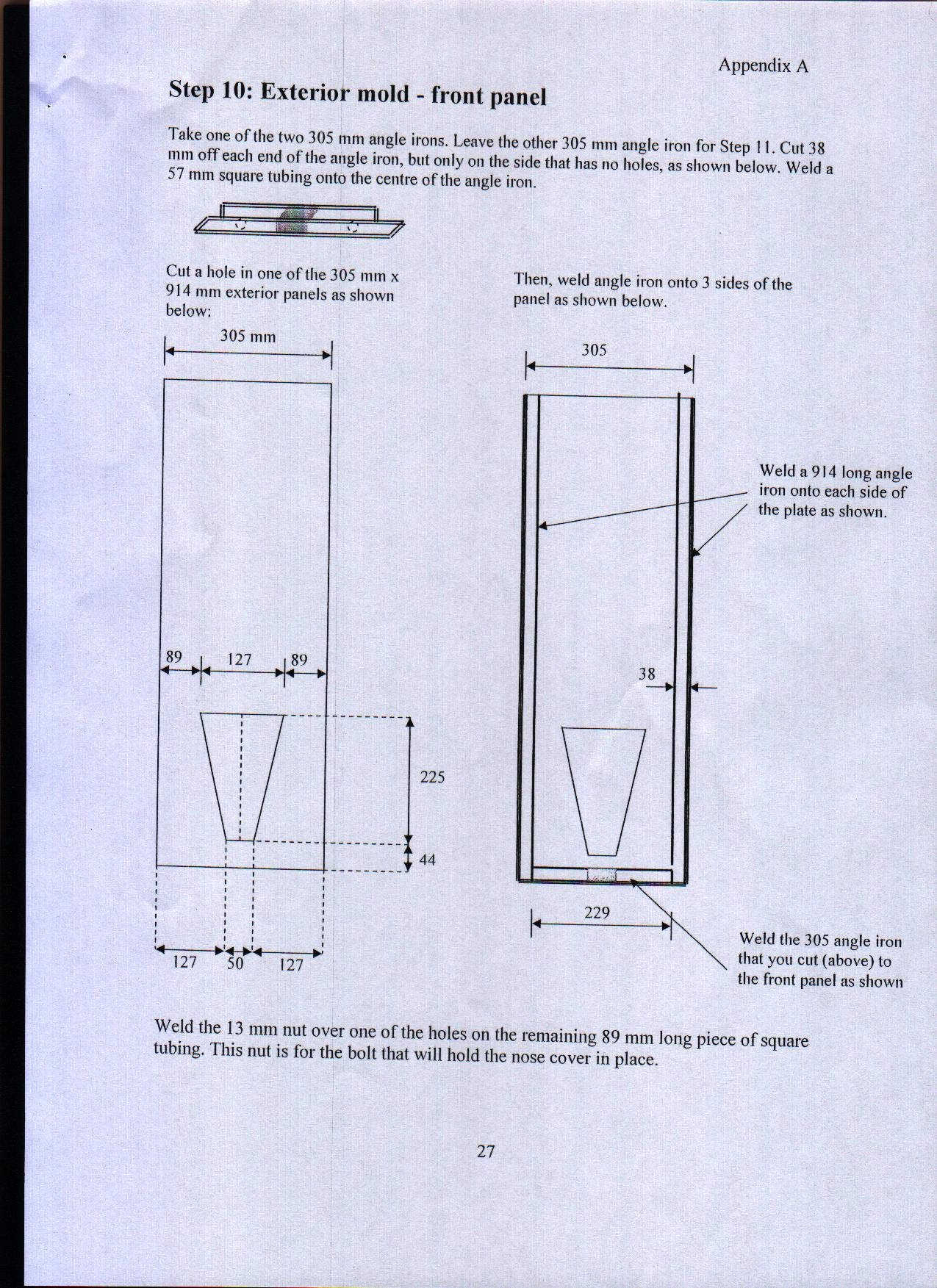

Step 10.

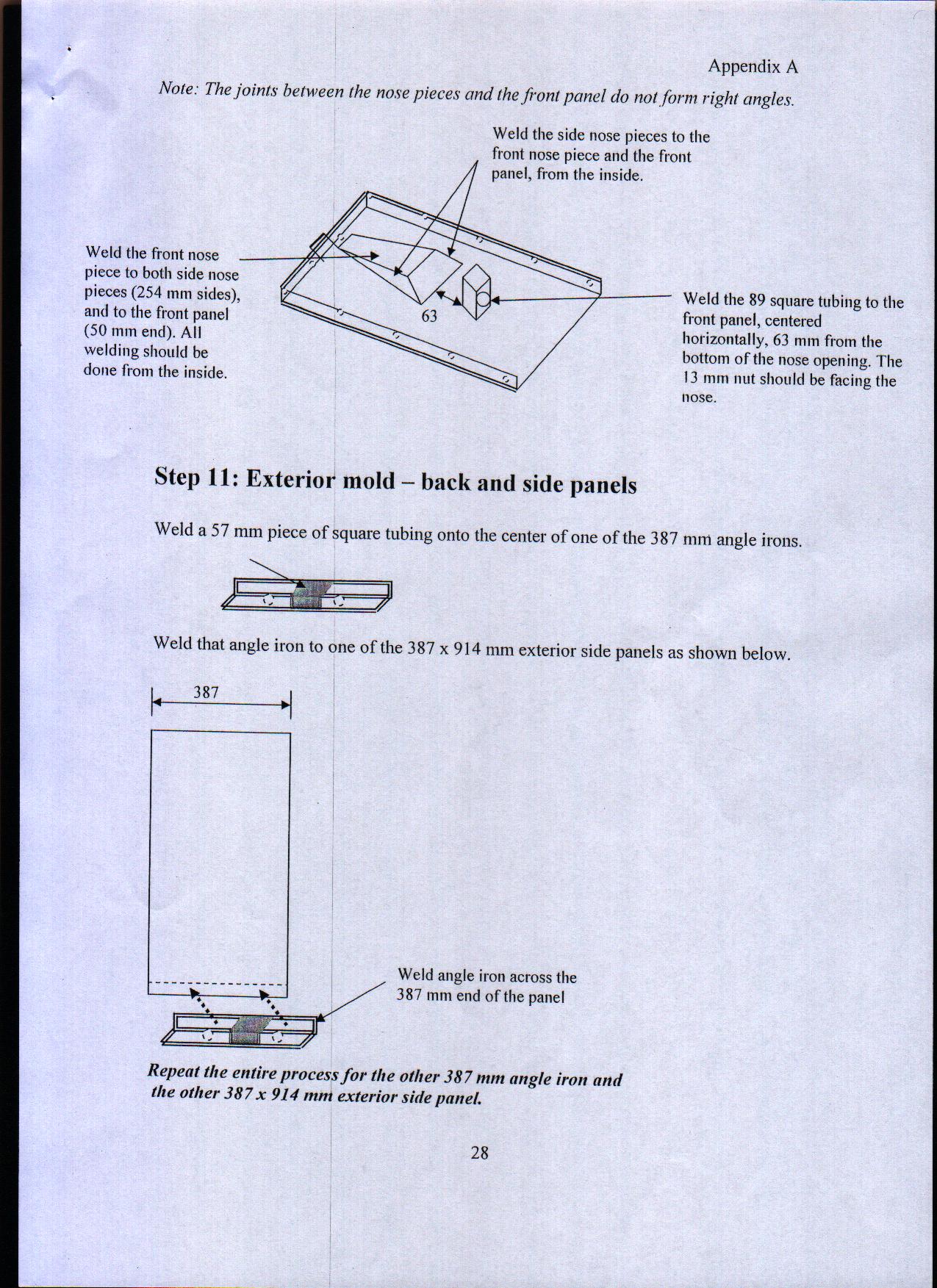

Step 11.

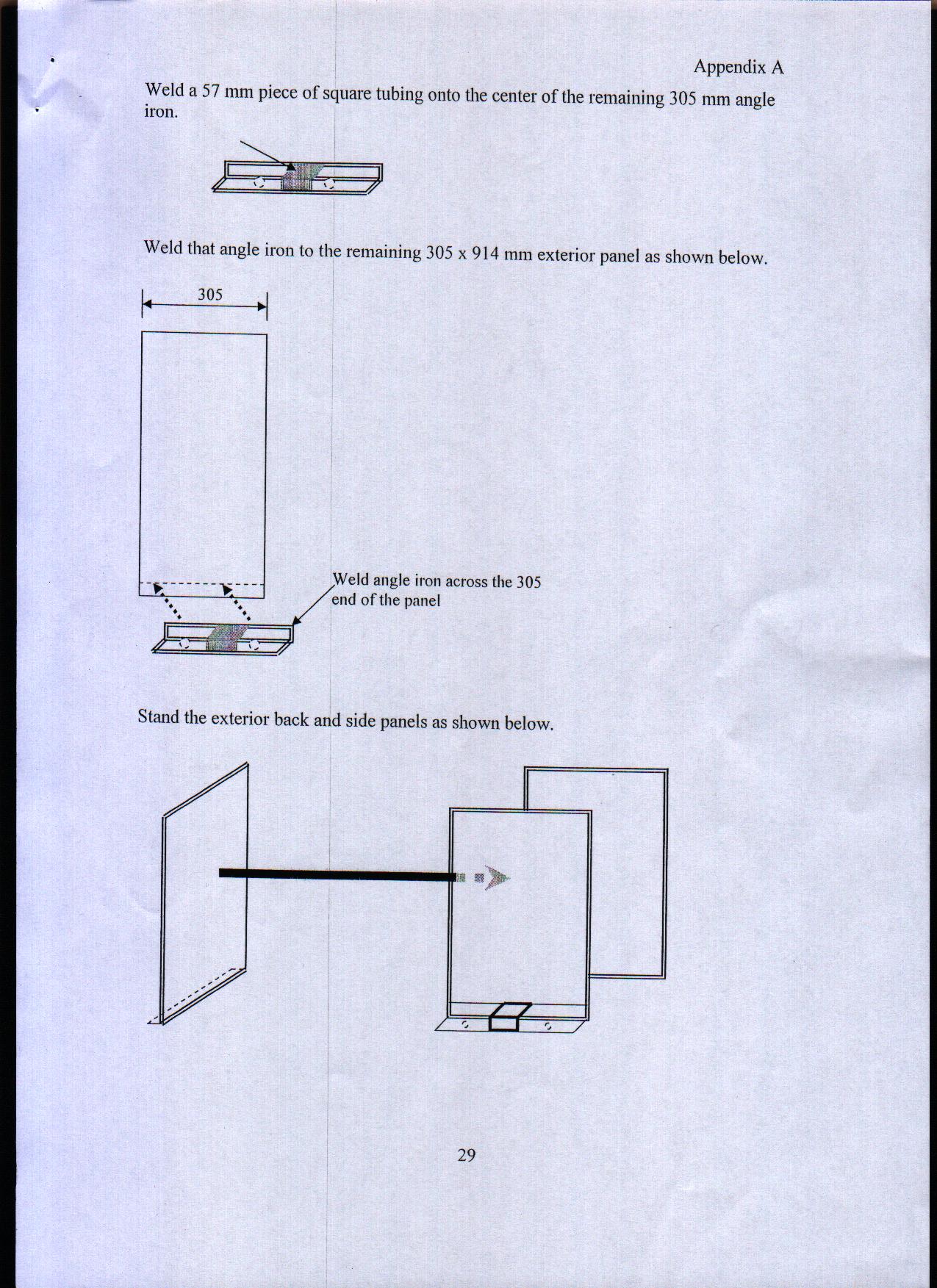

Step 11 (continued).

Steps 12 and 13.

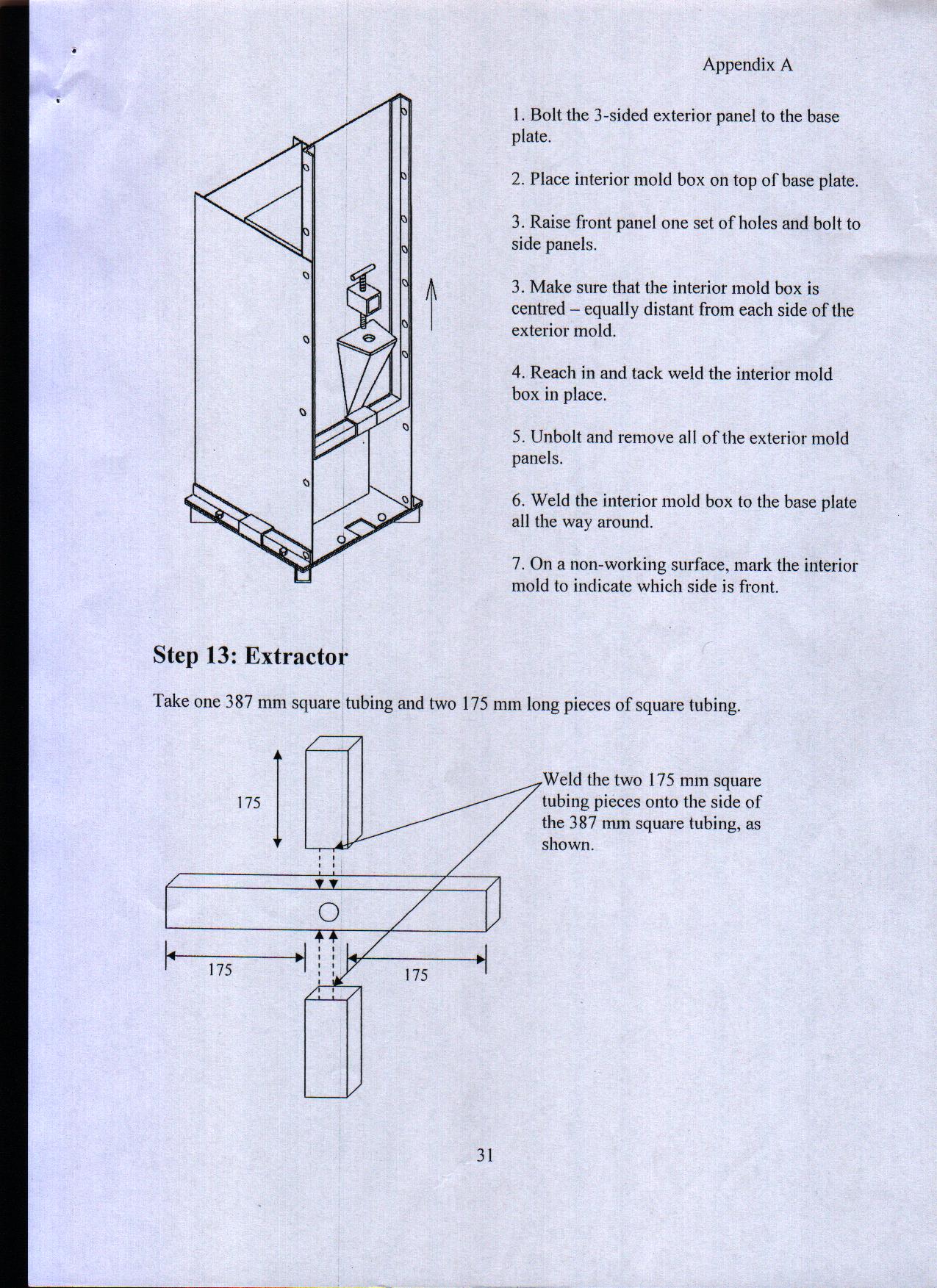

Steps 13(continued) and 14

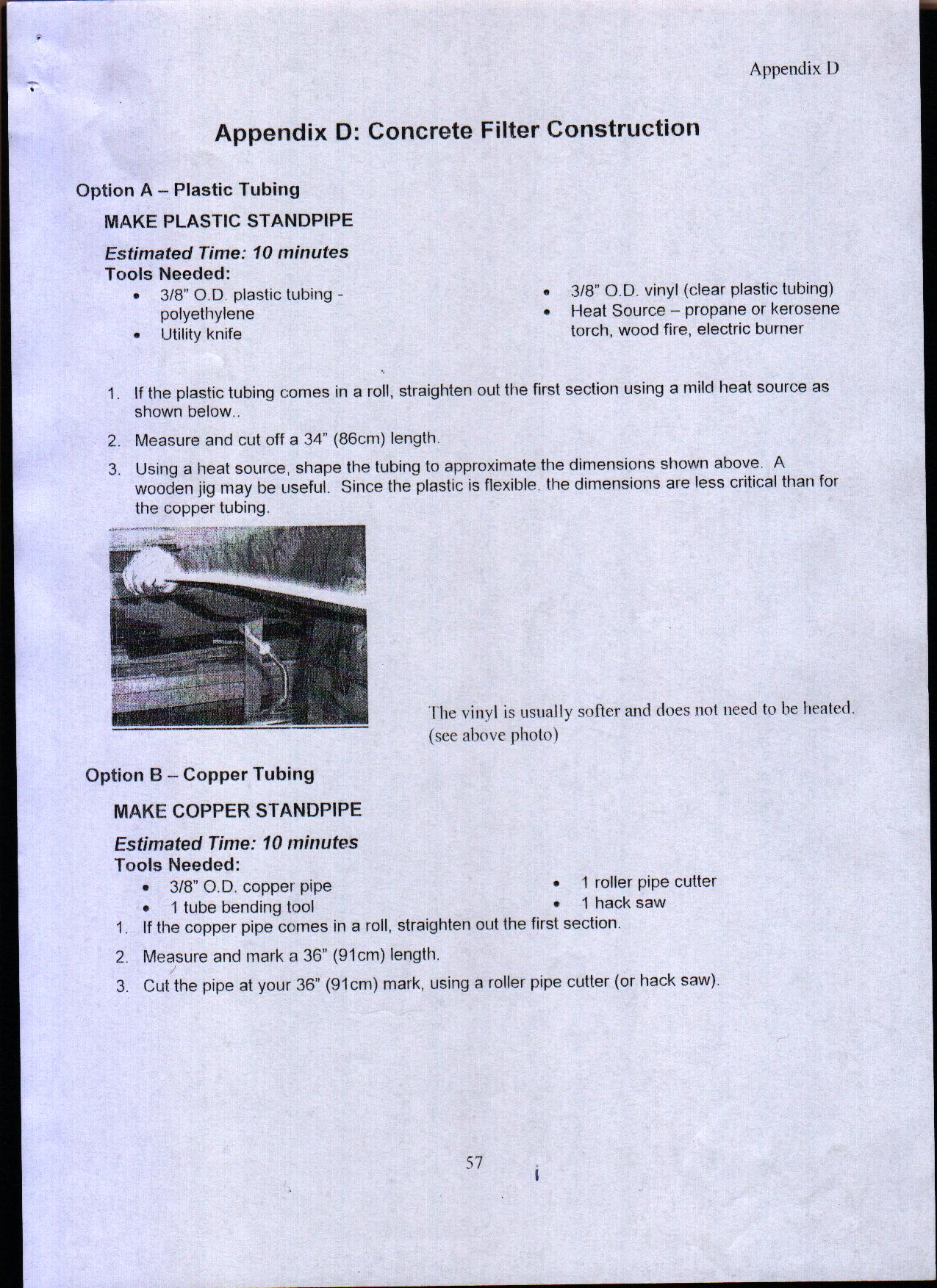

Concrete filter construction



Standpipe.

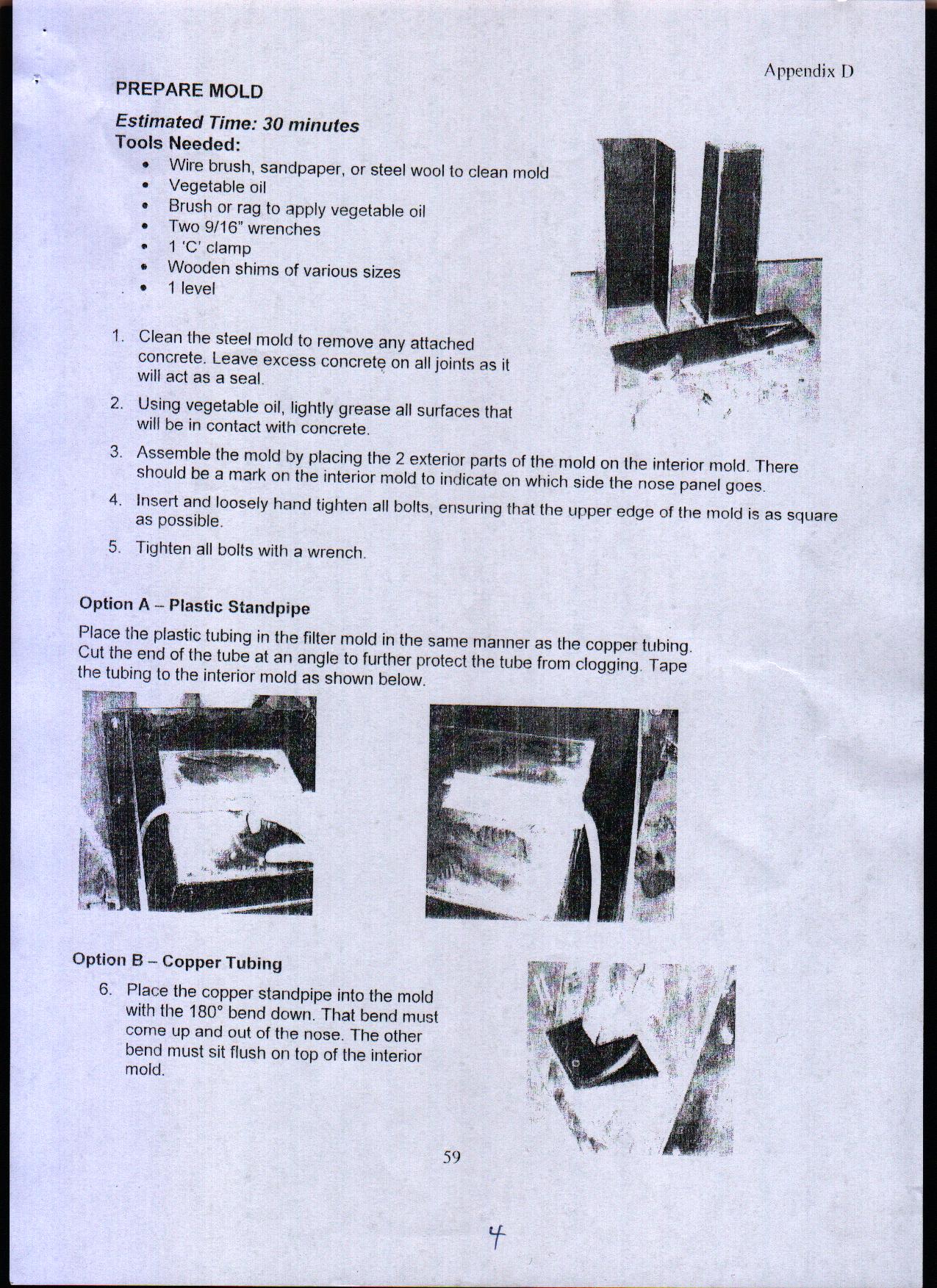

Preparing the mould for casting.

Preparing the mould for casting (2) (continued).

Preparing the mould for casting (3) (continued).

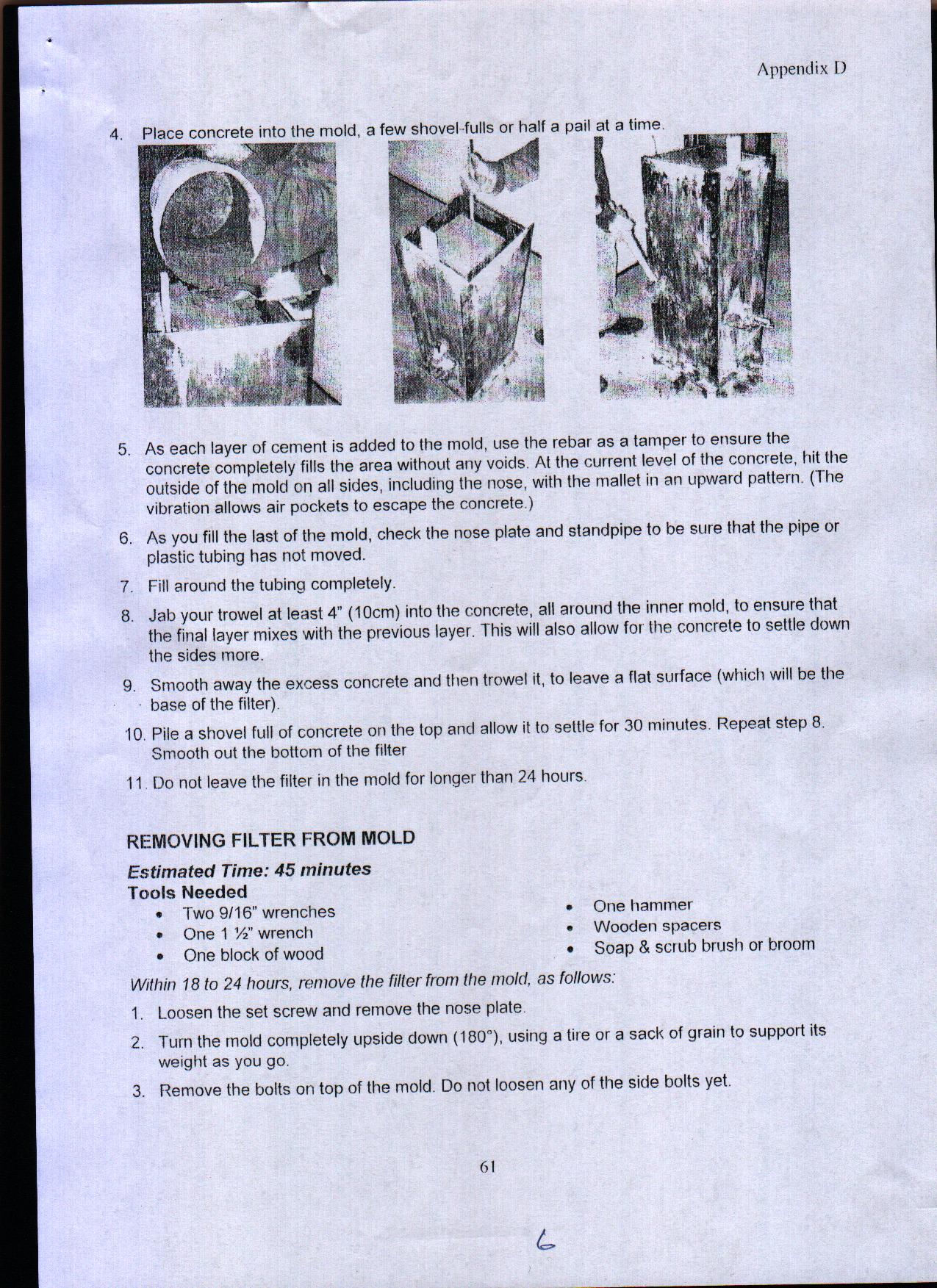

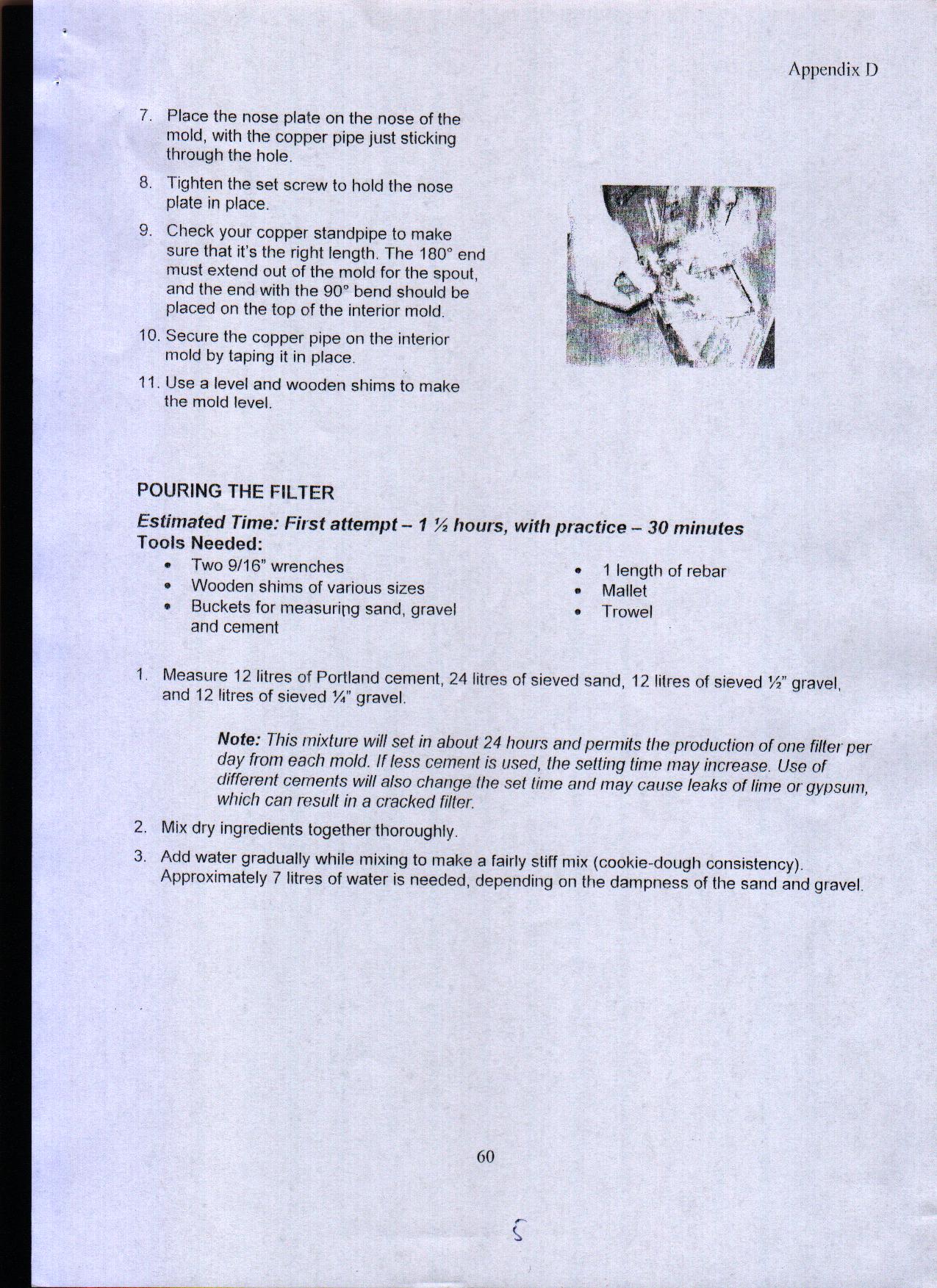

Pouring the filter.

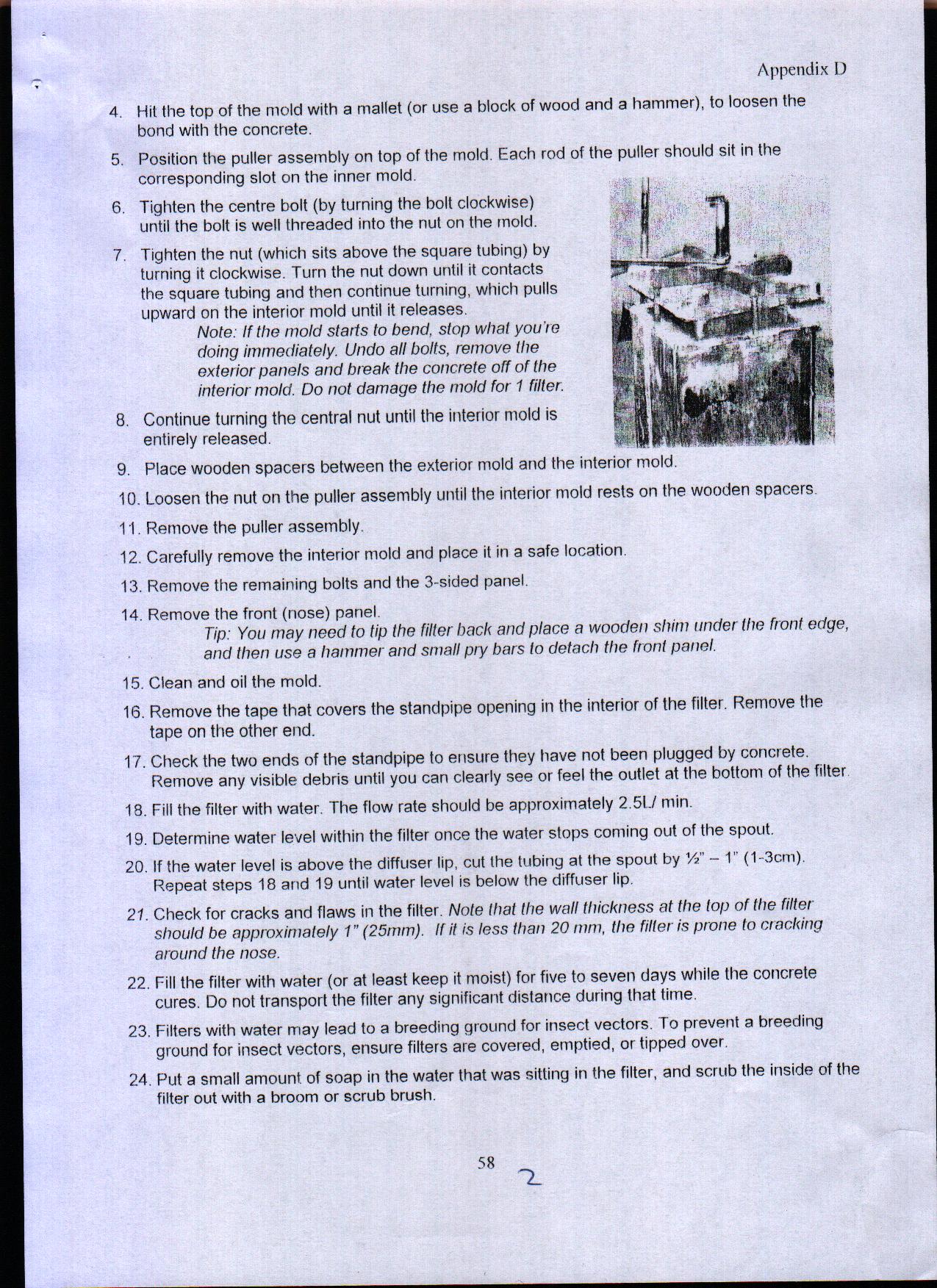

Removing the filter from the mould

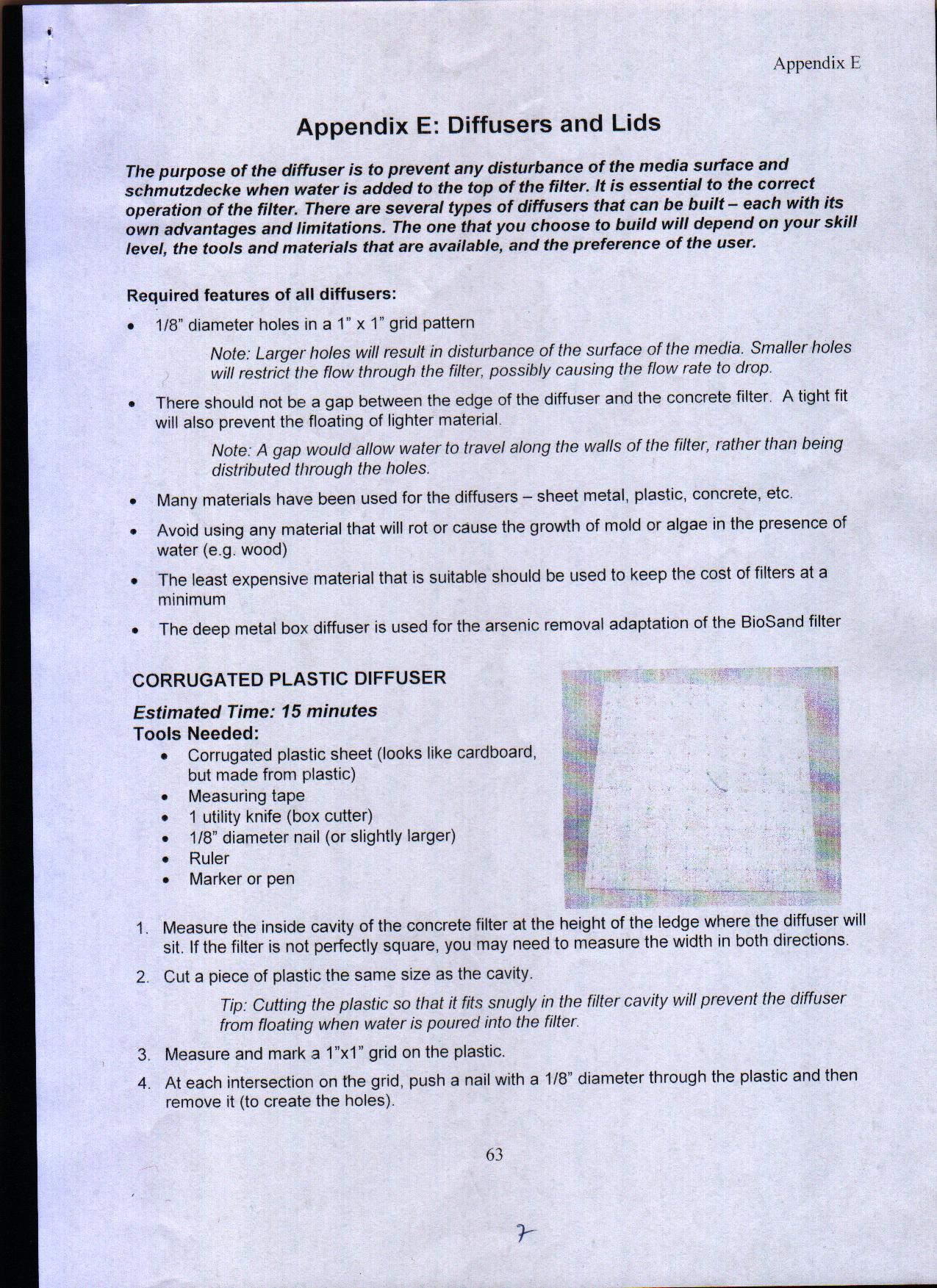

Diffusers and lids



Specifications.

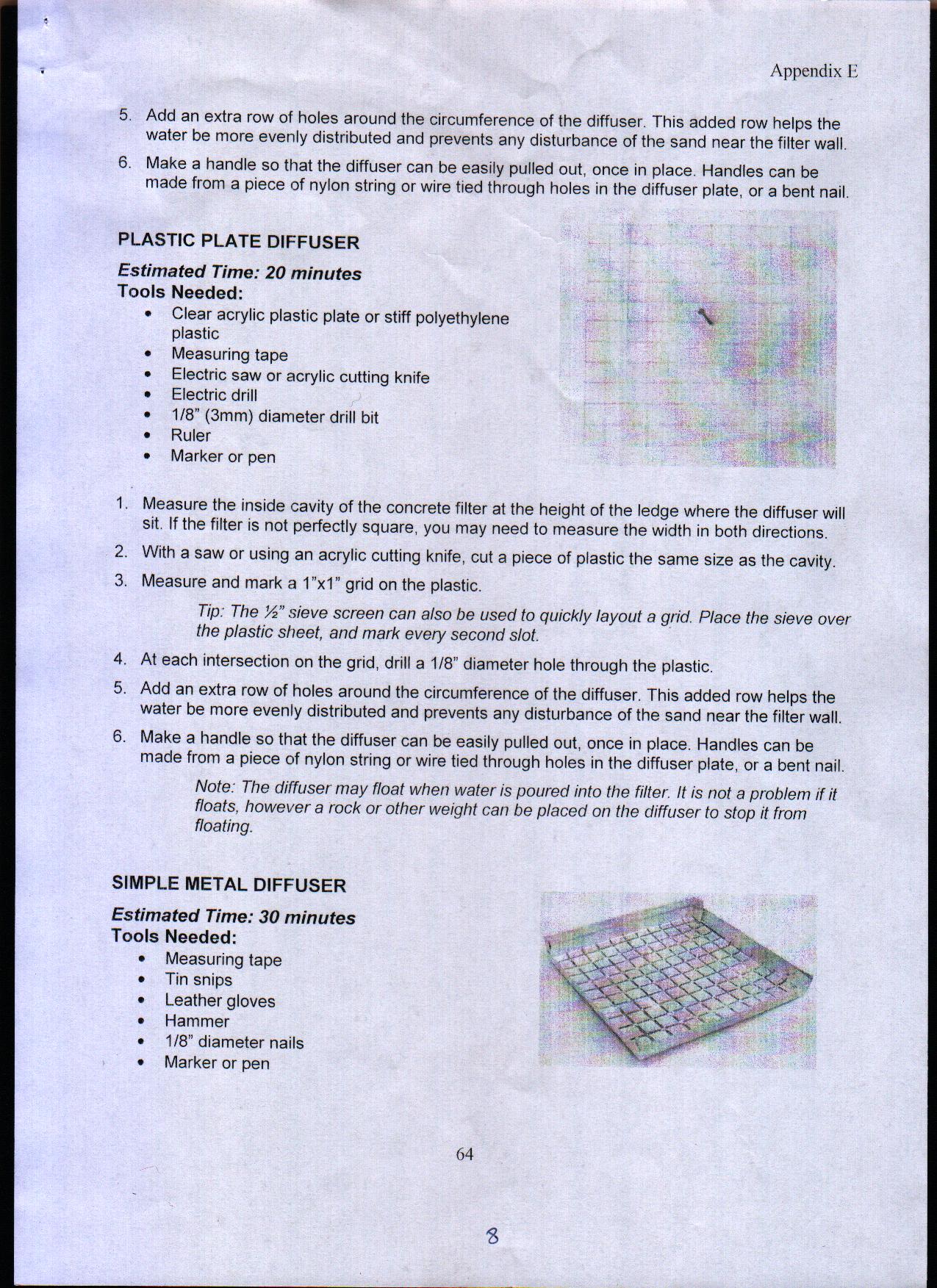

Plastic and metal diffusers.

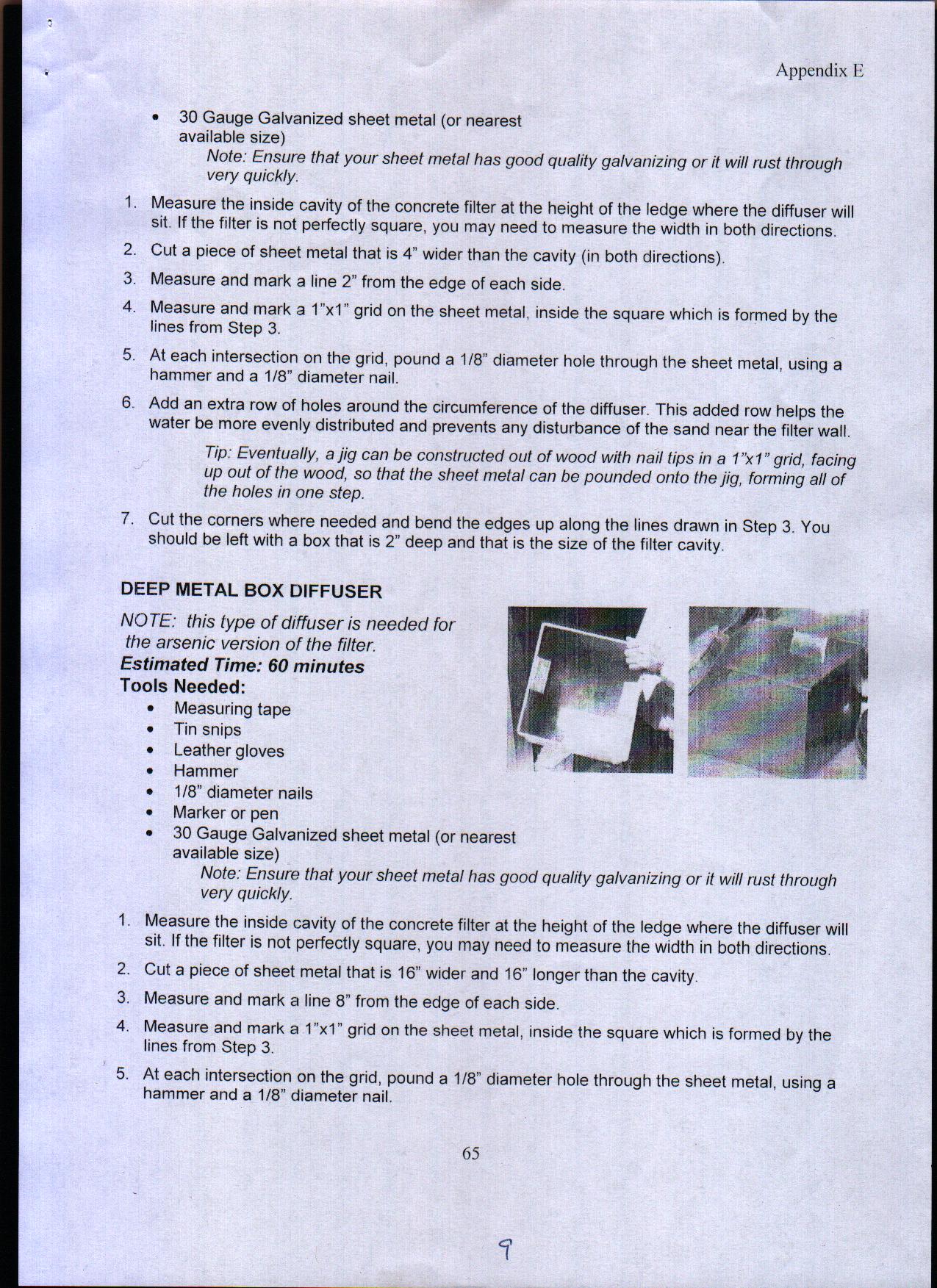

Deep metal box diffuser.

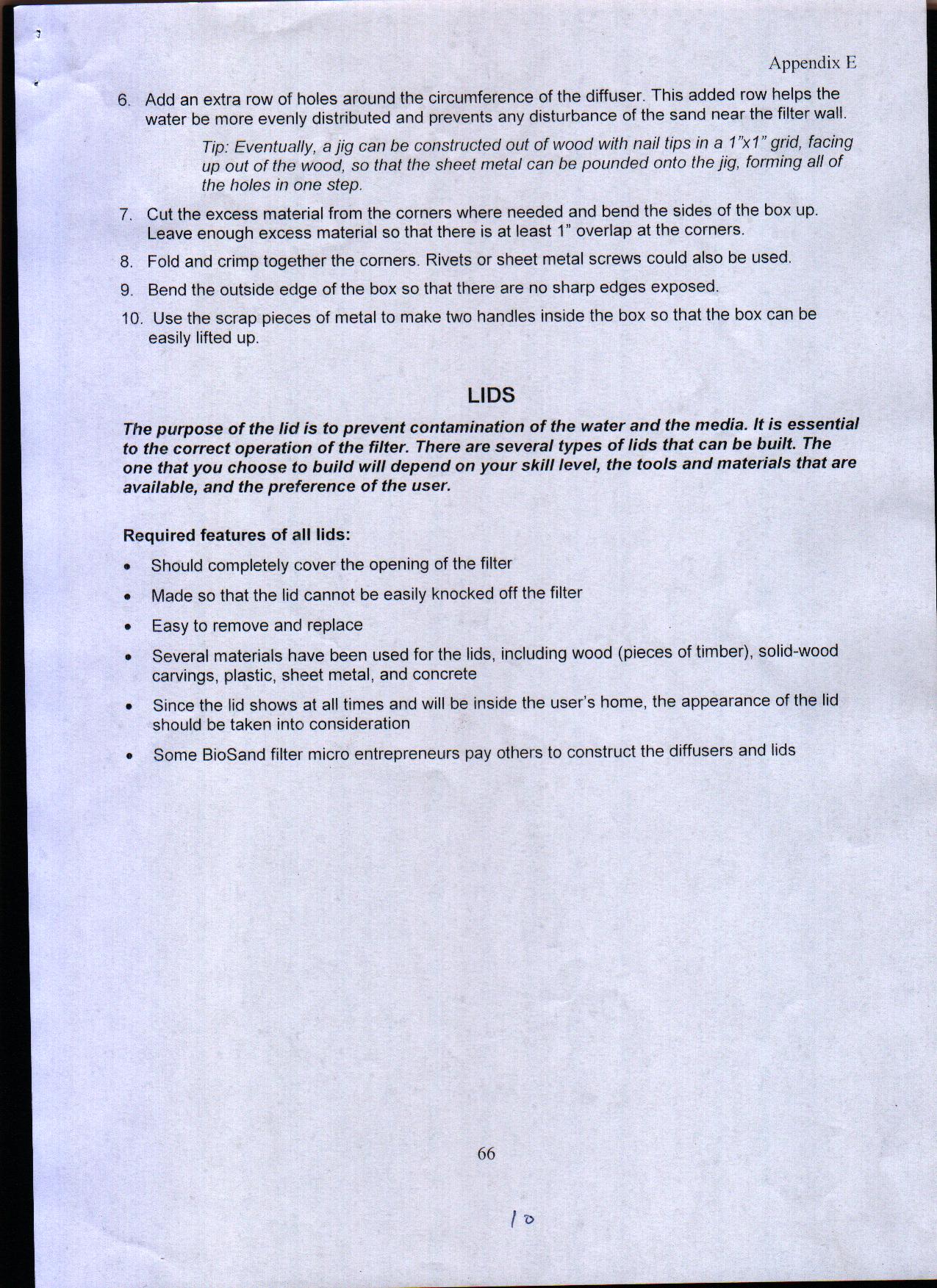

Lids.

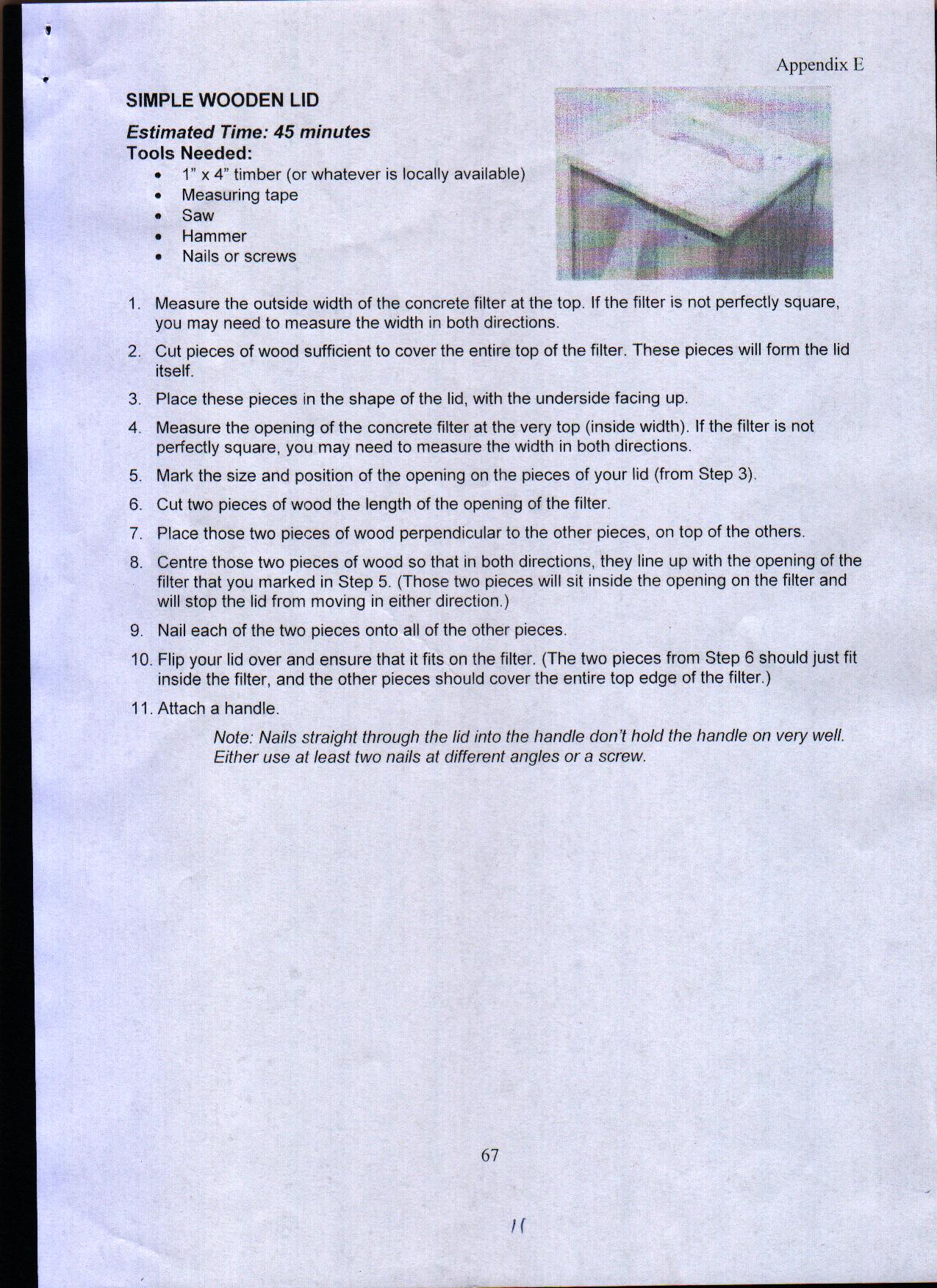

Simple wooden lid.



Placing filter materials.



Note that is available a 5 cm layer of pumice should be placed at the bottom of the filter media. The role of this pumice layer is basically to rid the water of organ chlorides, and dissolved organic carbon (DOC) as well as other micro-elements or ions like those from phosphorus, lead, iron and manganese.



Placing the media.

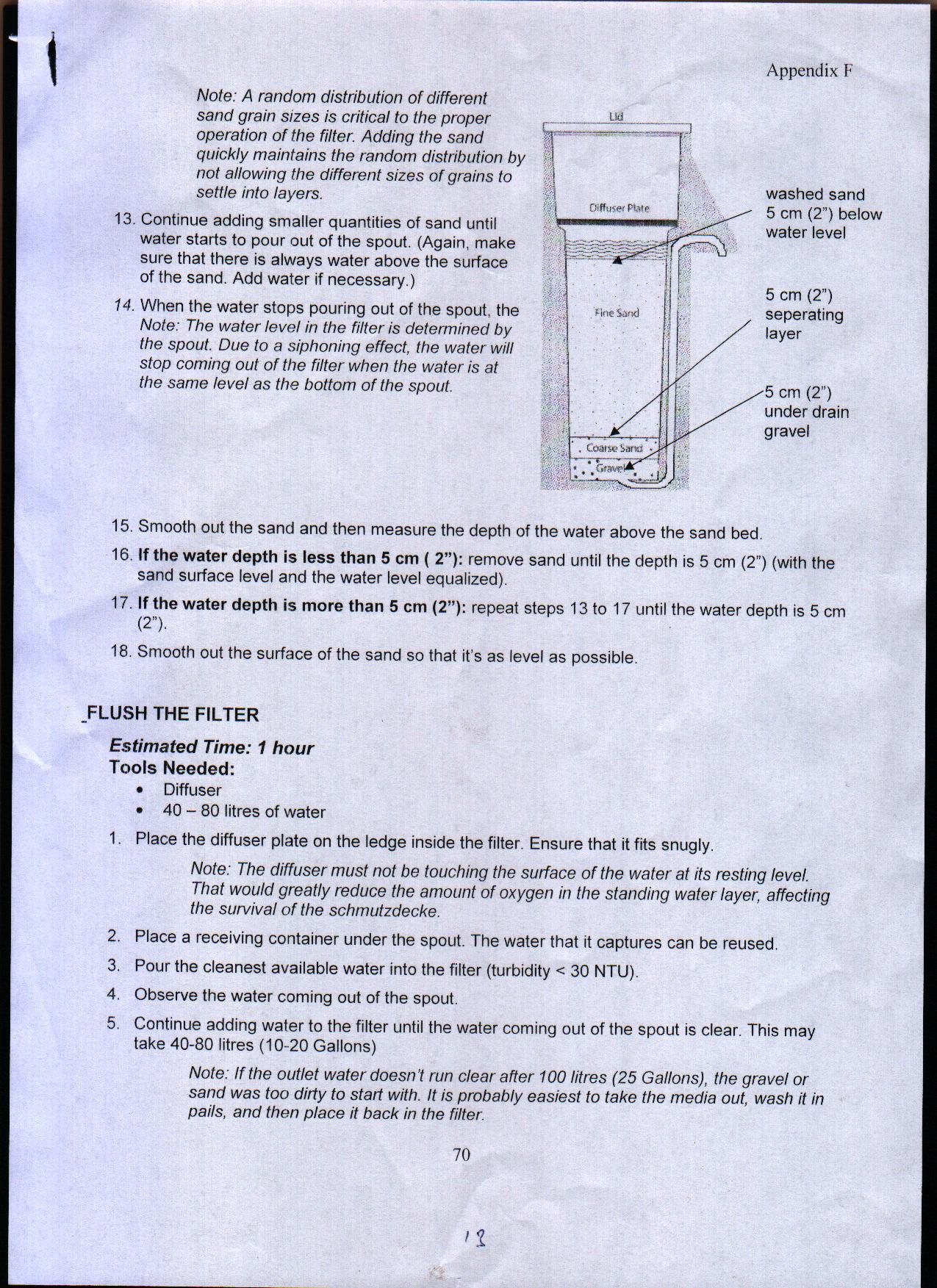

Flushing the filter.

Testing the flow rate.
