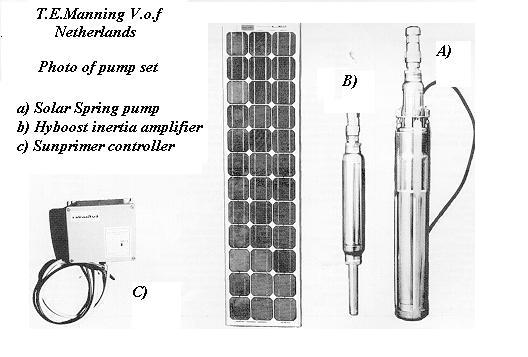

DETAILED PHOTO OF PUMP WARNING! This is a file of 426kb without captions for use in the preparation of promotional material
| Code | Description | Materials | Dimensions | No.pieces |
|---|---|---|---|---|
| 10301 | Coupling rapid complete | Brass, neoprene | 3/4" | - |
| 10302 | Head of rapid coupling | Brass | 3/4" | 1 |
| 10303 | Clinching ring for coupling | Brass | 3/4" | 1 |
| 10304 | Press ring | Brass | 3/4" | 1 |
| 10305 | Coupling "O" ring | Neoprene | 3/4" | 1 |
| 10306 | Coupling body | Brass | 3/4" | 1 |
| 10307 | Foot valve body with valve | Brass, polymer | 3/4" | 1 |
| 10308 | Nipple male-male with bleeder | Brass, stainless steel | 3/4" | 1 |
| 10309 | Connector with stop bar | Brass, stainless steel | 3/4" to 1 1/2" | 1 |
| 10310 | Ovoid chamber with 2 ovoids | Stainless steel, elastomer | ; | ; |
| 10311 | Inertia pipe, male threaded | Stainless steel aisi 304 | ; | ; |
| 20312 | Self-locking nuts | Nickel plated brass | MA8 | 4 |
| 20313 | Tie-rod strip washers | Stainless steel | ;nbsp | 4 |
| 20314 | Upper flange with cable guide | Stainless steel aisi 304 | ; | 1 |
| 20315 | Code plate | Stainless steel aisi 304 | ; | 1 |
| 20316 | Ovoid chamber | Stainless steel aisi 304 | 1kg | 1 |
| 20317 | "O" ring | Neoprene | 113.7 x 6.99 | 1 |
| 20318 | Ovoid with support | Elastomer | ; | - |
| 20319 | Ovoid | Elastomer | ; | (1) |
| 20320 | Ovoid centerer | Elastomer | ; | (1) |
| 30321 | Valve group filter | Stainless steel aisi 304 | ; | 1 |
| 30322 | Nuts for valve spindle and pistons | Brass | ; | 3 |
| 30323 | Upper valve positioning ring | Brass | ; | 1 |
| 30324 | Valve rubber | Neoprene | ; | 2 |
| 30325 | Upper valve support | Brass | ; | 1 |
| 30326 | Valve chamber | Stainless steel aisi 304 | ; | 1 |
| 30327 | Upper spindle "O" ring | Neoprene | 12.42 x 1.78 | 1 |
| 30328 | Lower valve support | Brass | ; | 1 |
| 30329 | Lower spindle "O" ring | Neoprene | 15.6 x 1.78 | 1 |
| 30330 | Valve spindle | Brass | ; | 1 |
| 40331 | Upper body "O" ring | Neoprene | 78.47 x 3.53 | 1 |
| 40332 | Pump body | Brass <2% lead | 2kg | 1 |
| 40333 | Lower body "O" ring | Neoprene | 81.92 x 5.34 | 1 |
| 40334 | Shaft bearing | Special steel | ; | 1 |
| 40335 | Spring clip for shaft bearing | Steel | ; | 1 |
| 40336 | Oil seal for shaft | Viton | 24 x 12 x 7 | 1 |
| 40337 | Spring clip for oil seal | Steel | ; | 1 |
| 40338/18 | Cam shaft (alternative) | Special hardened seal | 1.8mm | (1) |
| 40338/20 | Cam shaft (alternative) | Special hardened seal | 2.0mm | (1) |
| 40338/22 | Cam shaft (alternative) | Special hardened seal | 2.2mm | (1) |
| 40338/24 | Cam shaft (alternative) | Special hardened seal | 2.4mm | (1) |
| 40338/26 | Cam shaft (standard) | Special hardened seal | 2.6mm | 1 |
| 40338/28 | Cam shaft (alternative) | Special hardened seal | 2.8mm | (1) |
| 40338/30 | Cam shaft (alternative) | Special hardened seal | 3.0mm | (1) |
| 50339 | Shaft key | Steel | 5 x 30 | 1 |
| 50340 | Cam connector | Steel | PR 80 | 1 |
| 50341 | Grub screws | Steel | 8 x 8 | 2 |
| 50342 | Motor screws | Steel | 5 x 10 | 4 |
| 50343/65 | Complete motor group + brushes | Special alloys | 200 nominal | 1 |
| 50344 | Brushes for motor | Special carbon alloy | 15mm | 2 |
| 50345 | Earth screw | Steel | ;nbsp | 1 |
| 60346 | Complete piston group 347-350 | Bronze/special steel | ; | - |
| 60347 | Vertical bearings | Special steel | 22 x 20 | 2 |
| 60348 | Piston axis rods | Special steel | ; | 2 |
| 60349 | Bearing spacer rings | Steel | PR 80 | 4 |
| 60350 | Piston body | Bronze | 40mm | 2 |
| 60351/04 | Springs 4kg (alternative) | Spring steel | ; | - |
| 60351/07 | Springs 7kg (alternative) | Spring steel | ; | - |
| 60351/10 | Springs 10kg (standard) | Spring steel | ; | 2 |
| 60352 | Piston guide "O" rings | Neoprene | ; | 2 |
| 60353 | Piston guides | Stainless steel | 47.22 x 3.53 | 2 |
| 60354 | Piston gaskets | Neoprene | ; | 2 |
| 60355 | Gasket washers | Stainless steel | ; | 2 |
| 60356 | Gasket plates | Stainless steel | ; | 2 |
| 60357 | Conical gasket screws | Stainless steel | 5 x 16 | 8 |
| 70358 | Motor shroud with sealed cable | Stainless steel | Diameter 98mm | 1 |
| 70359 | Fast on terminals | Copper | ; | 2 |
| 70360 | Spade for earth terminal | Copper | ; | 1 |
| 70361 | Motor cover base | Stainless steel aisi 304 | Diameter 98mm | 1 |
| 70362 | Tie-rod straps | Stainless steel aisi 304 | ; | 2 |
| 70363 | Electric cable max 1.5 ohm | Neoprene | 1.5m; 3x1.5mm | - |
| 90956 | Non-toxic oil Petro-Canada | Purity FGA W46 | 40cc | 1 |
| Code | Description | Materials | Dimensions | No.pieces |
|---|---|---|---|---|
| 90901 | Piston support tool | For operator's convenience | Special tool | 1 |
| 90904 | Piston spindle driver | For operator's convenience | Special tool | 1 |
| 90907 | Pump body clamp support | For operator's convenience | Special tool | 1 |
| 90910 | Wing nut for clamp | ; | ; | 1 |
| 90913 | Valve spindle mounting support | For operator's convenience | Special tool | 1 |
| 90914 | Pump body support tool | For operator's convenience | Special tool | 1 |
| 90917 | Chain wrench | ; | 12 MA | 1 |
| 90920 | Flat screwdriver | ; | no.6 | 1 |
| 90923 | Star screwdriver | ; | no.6 | 1 |
| 90926 | Allen key, hexagonal | ; | no.3 | 1 |
| 90929 | Mallet, small | Wood or plastic | ; | 1 |
| 90932 | Extension socket spanner | ; | Size 13 | 1 |
| 90935 | Ring spanner | ; | Size 22 | 1 |
| 90938 | Ring spanner | ; | Size 36 | 1 |
| 90941 | Allen key | ; | 8mm | 1 |
| 90944 | Socket spanner | ; | Size 7 | 1 |
| 90947 | Cable stripper (small) | ; | ; | 1 |
| 90950 | Marine grease | ; | ; | ; |
| 90953 | Silicon (alternative to grease) | ; | ; | ; |
| 90956 | Non toxic oil Petro Canada | Purity FGA W46 | 5 liter tins | ; |
| 90959 | Hemp wool | ; | ; | ; |
