VILLAGE LIFE SPRING REBOUND INERTIA HANDPUMPS

OR

WATER OSCILLATION HANDPUMPS

FOR RURAL WATER SUPPLY IN DEVELOPING COUNTRIES



COMPLETE MANUAL



Section 3: Maintenance of the pump.



Page 01 :  Introduction.

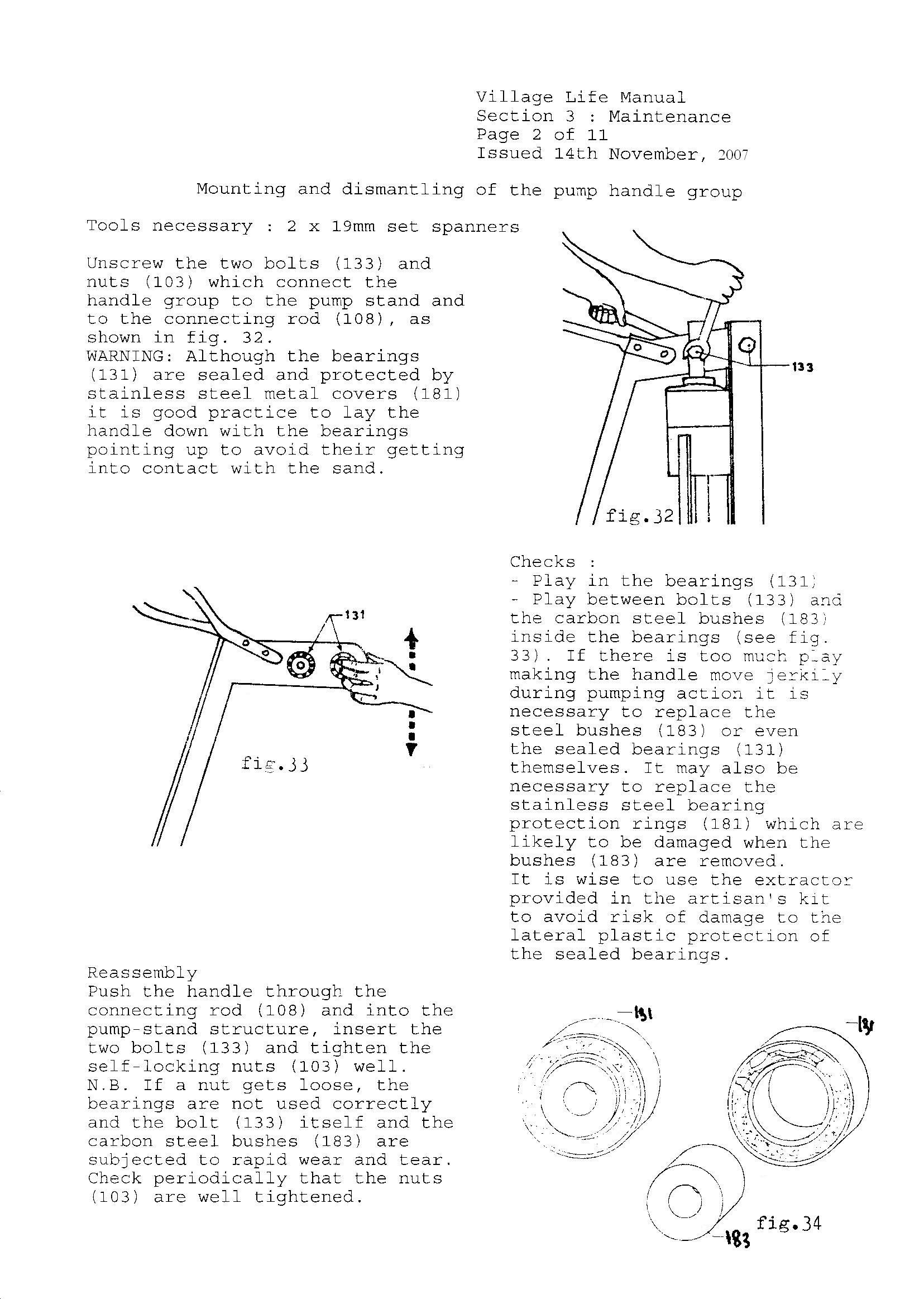

Page 02 :  Mounting and dismantling the pump handle group.

Page 03 :  Removal of the upper pump group.

Page 04 :  Fitting the stainless steel handle bearing covers.
