Edition 01: 23 February, 2008.

Edition 02 : 18 April, 2012.

VILLAGE LIFE SPRING REBOUND INERTIA HANDPUMPS

OR

WATER OSCILLATION HANDPUMPS

FOR RURAL WATER SUPPLY IN DEVELOPING COUNTRIES



COMPLETE MANUAL



Section 4: Specifications.

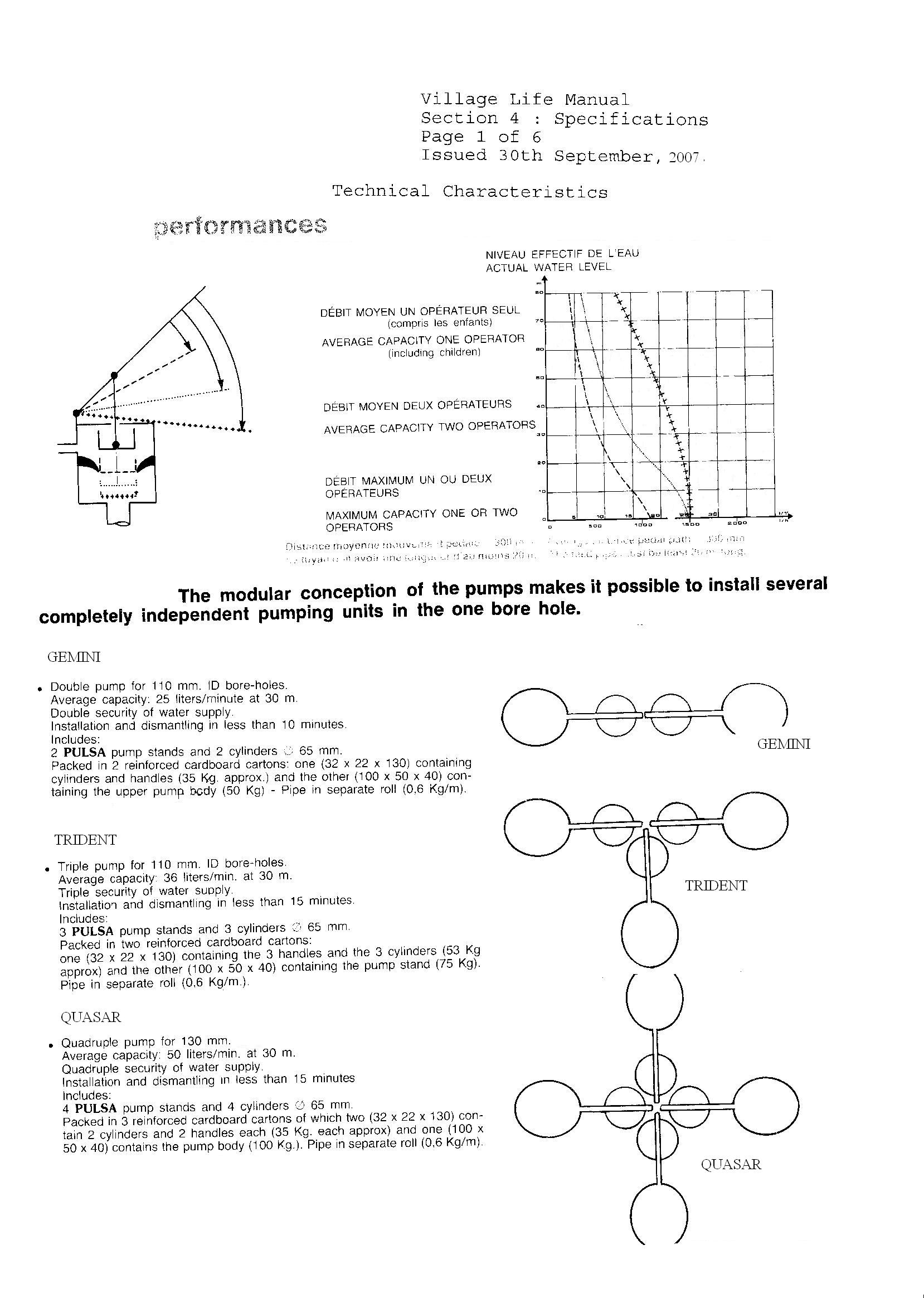

Page 01 :  Technical characteristics.

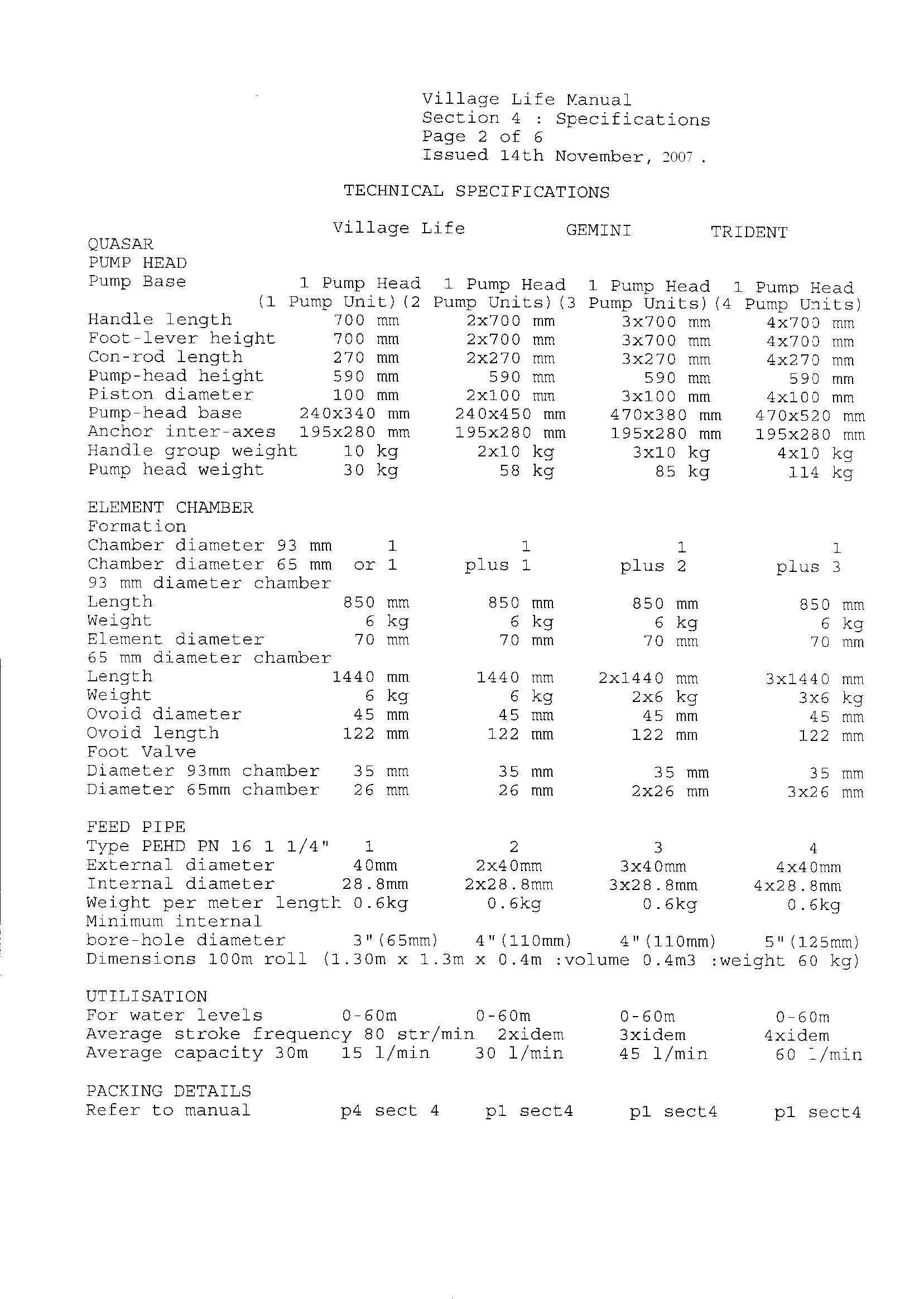

Page 02 :  Technical specifications.

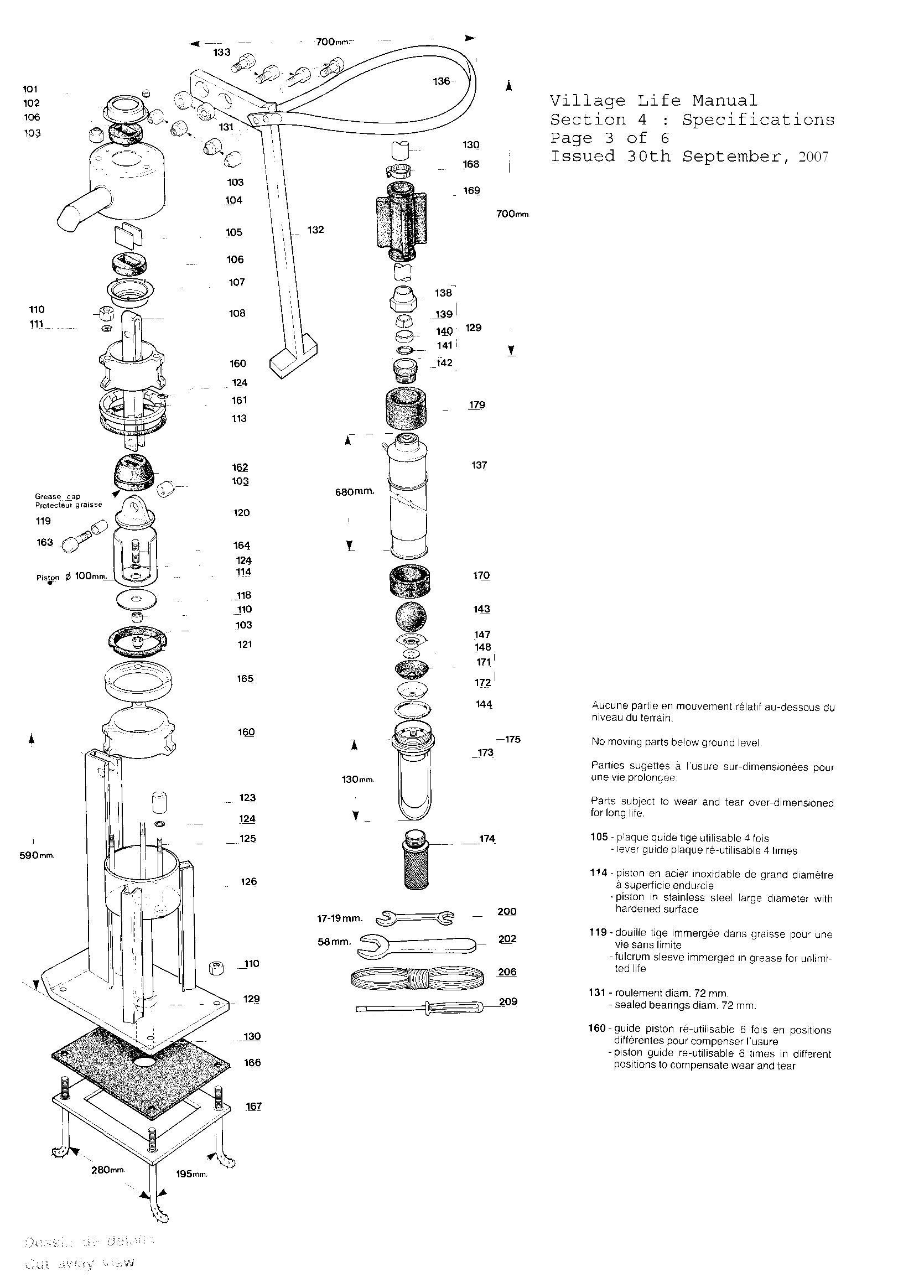

Page 03 :  Cut-away view.

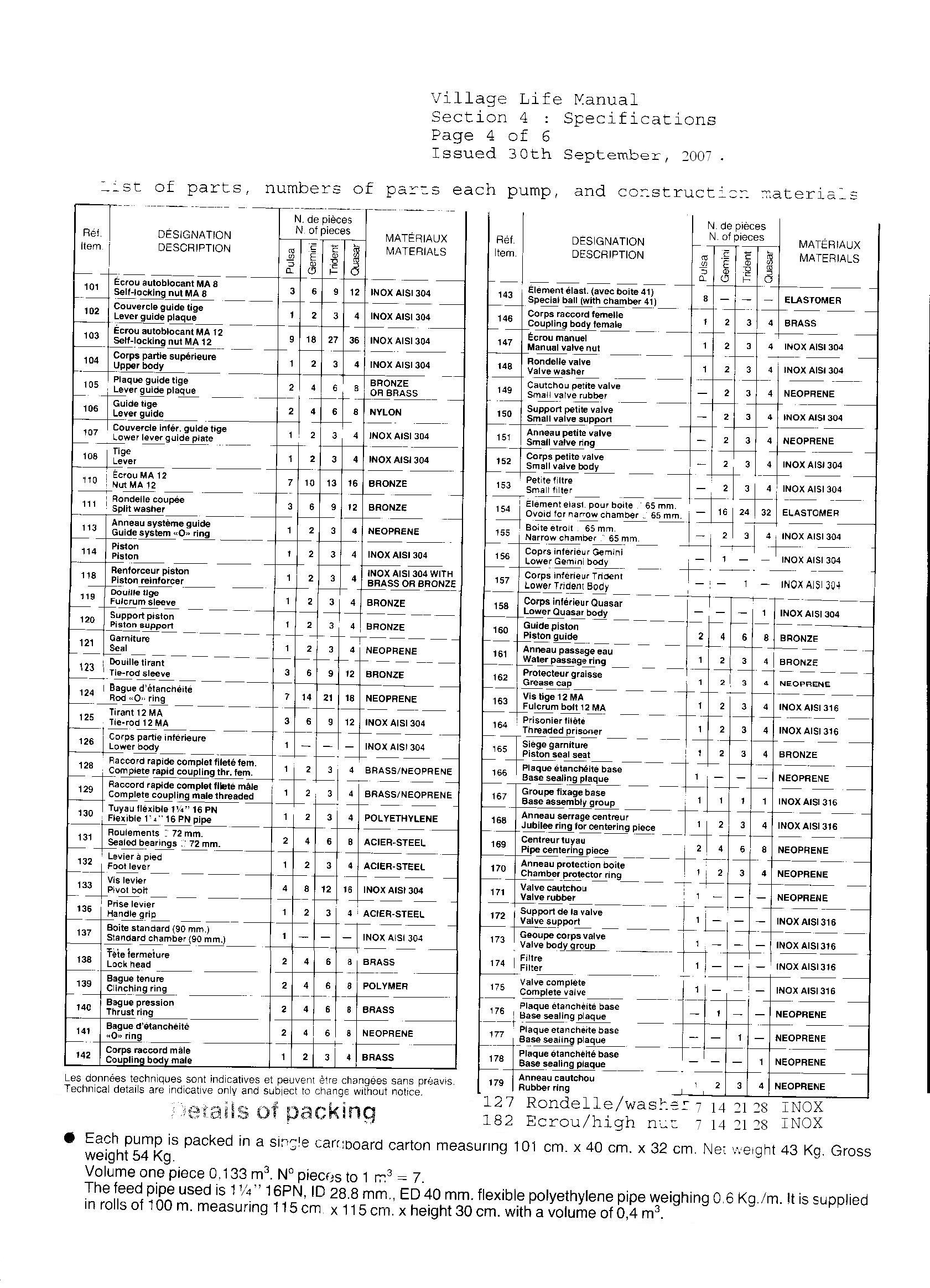

Page 04 :  List of parts and materials.
