VILLAGE LIFE SPRING REBOUND INERTIA HANDPUMPS

OR

WATER OSCILLATION HANDPUMPS

FOR RURAL WATER SUPPLY IN DEVELOPING COUNTRIES



COMPLETE MANUAL



Section 5: Hygiene around the water point.

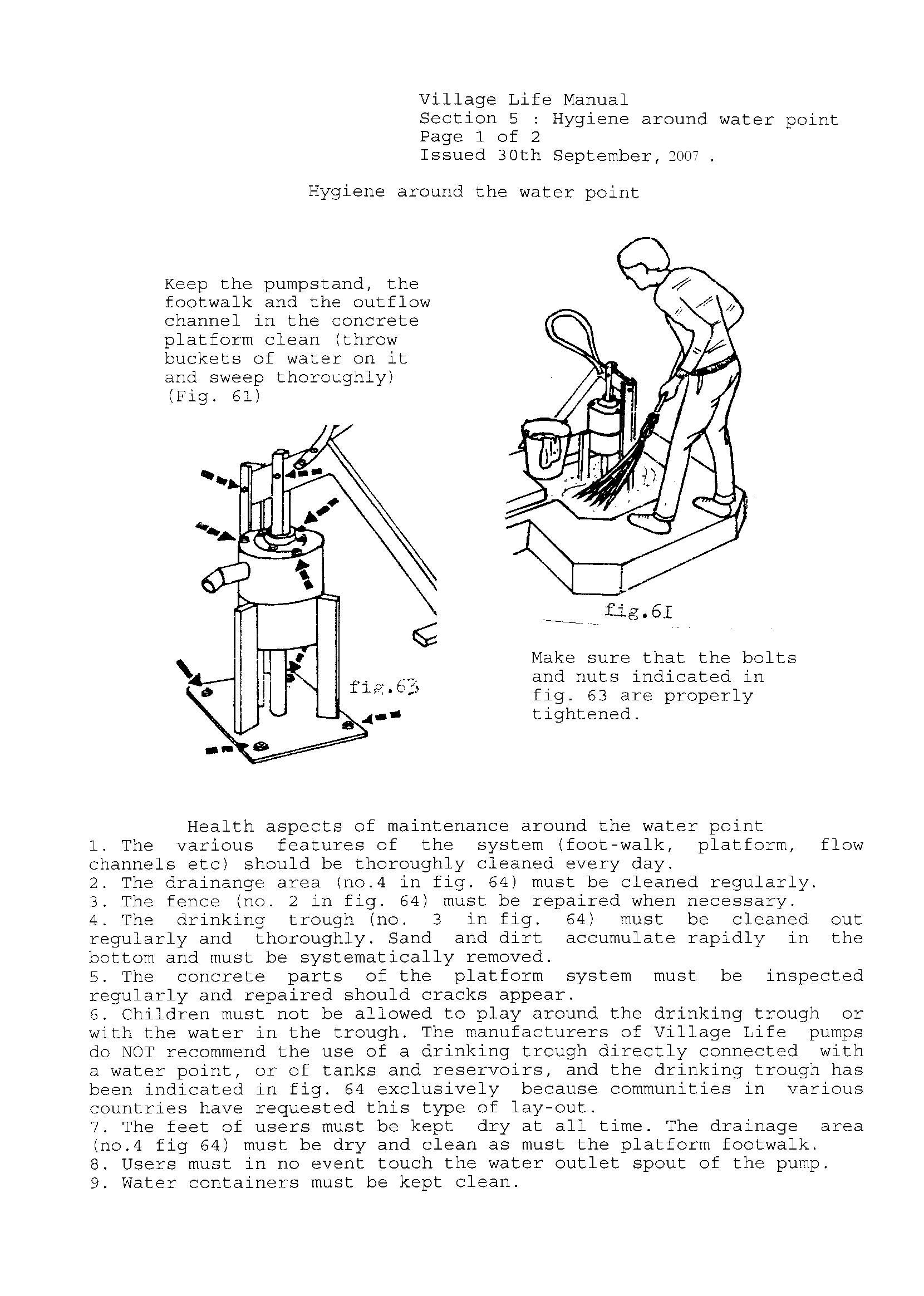

Page 01 :  Hygiene around the water point.

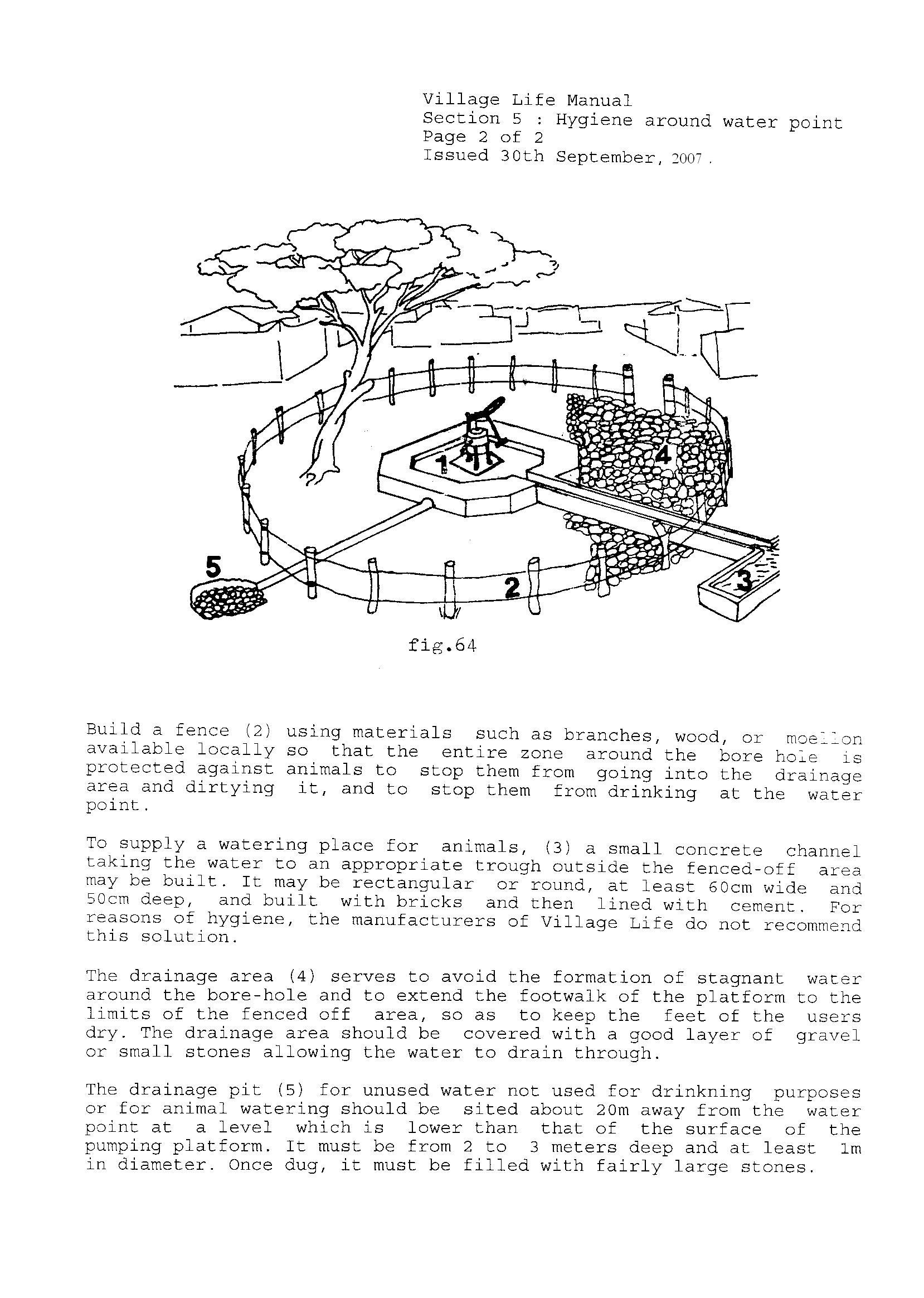

Page 02 :  Hygiene around the water point (continued).
