Edition 9:

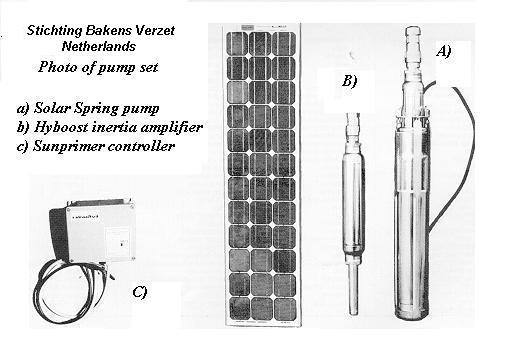

DETAILED
PHOTO OF PUMP (426kb file
without captions for use in the preparation of promotional material).
LAYOUT (Drawing of a typical installation layout.)
(FR) SCHÉMA (Dessin d’une installation typique.)
|

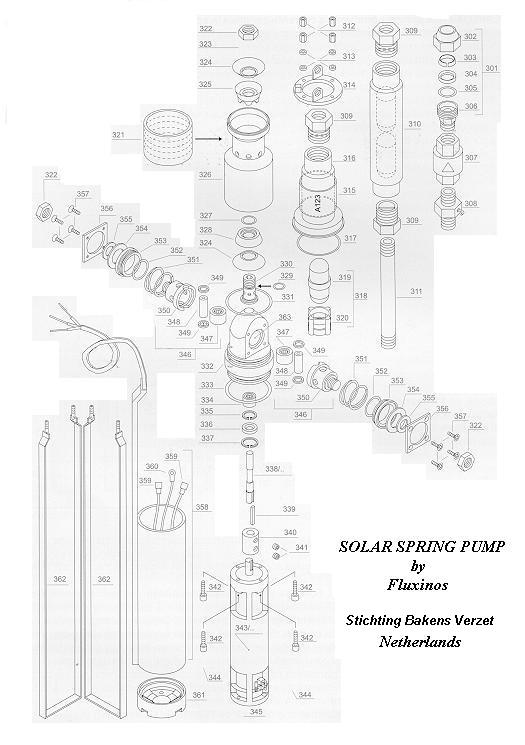

Code |
Description |
Materials |
Dimensions |
No.pieces |
|
10301 |
Coupling rapid complete (parts 301-306) |
Brass, neoprene |
3/4" |
1 |
|
10302 |
Head of rapid coupling |
Brass |
3/4" |
1 |
|
10303 |
Clinching ring for coupling |
Brass |
3/4" |
1 |
|
10304 |
Press ring |
Brass |
3/4" |
1 |
|
10305 |
Coupling "O" ring |
Neoprene |
3/4" |
1 |
|
10306 |
Coupling body |
Brass |
3/4" |
1 |
|
10307 |
Foot valve body with valve |
Brass, polymer |
3/4" |
1 |
|
10308 |
Nipple male-male with bleeder |
Brass, stainless steel |
3/4" |
1 |
|
10309 |
Connector with stop bar |
Brass, stainless steel |
3/4" to 1 1/2" |
1 |
|
10310 |
Ovoid chamber with 2 ovoids |
Stainless steel, elastomer |
|
1 with 3mm units |
|
10311 |
Inertia pipe, male threaded |
Stainless steel aisi 304 |
|
1 with 3mm units |
|
20312 |
Self-locking nuts |
Nickel plated brass |
MA8 |
4 |
|
20313 |
Tie-rod strip washers |
Stainless steel |
|
4 |
|
20314 |
Upper flange with cable guide |
Stainless steel aisi 304 |
|
1 |
|
20315 |
Code plate |
Stainless steel aisi 304 |
|
1 |
|
20316 |
Ovoid chamber |
Stainless steel aisi 304 |
1kg |
1 |
|
20317 |
"O" ring |
Neoprene |
113.7 x 6.99 |
1 |
|
20318 |
Ovoid with support (parts 319-320) |
Elastomer |
|
1 |
|
20319 |
Ovoid |
Elastomer |
|
1 |
|
20320 |
Ovoid centerer |
Elastomer |
|
1 |
|
30321 |
Valve group filter |
Stainless steel aisi 304 |
|
1 |
|
30322 |
Nuts for valve spindle and pistons |
Brass |
|
3 |
|
30422 |
Valve nut |
Stainless steel |
|
1 |
|
30323 |
Upper valve positioning ring |
Brass |
|
1 |
|
30423 |
Positioning ring |
Stainless steel |
|
1 |
|
30324 |
Valve rubber |
Neoprene |
|
2 |
|
30325 |
Upper valve support |
Brass |
|
1 |
|
30425 |
Upper valve rubber support |
Stainless steel |
|
1 |
|
30326 |
Valve chamber |
Stainless steel aisi 304 |
|
1 |
|
30426 |
Passage ring |
Stainless steel |
|
1 |
|
30327 |
Upper spindle "O" ring |
Neoprene |
12.42 x 1.78 |
1 |
|
30328 |
Lower valve support |
Brass |
|
1 |
|
30428 |
Lower valve rubber support |
Stainless steel |
|
1 |
|
30329 |
Lower spindle "O" ring |
Neoprene |
15.6 x 1.78 |
1 |
|
30429 |
Lower spindle sleeve |
Stainless steel |
|
1 |
|
30330 |
Valve spindle |
Brass |
|
1 |
|
30430 |
Valve group bolt |
Stainless steel |
|
1 |
|
30380 |
Complete valve group to B531 (parts 322-330) |
Brass/elastomer |
|
1 |
|
30480 |
Complete valve group from B532 (parts 422-430) |
Stainless steel/elastomer |
|
1 |
|
40331 |
Upper body "O" ring |
Neoprene |
78.47 x 3.53 |
1 |
|
40332 |
Pump body |
Brass <2% lead> |
2kg |
1 |
|
40333 |
Lower body "O" ring |
Neoprene |
81.92 x 5.34 |
1 |
|
40334 |
Shaft bearing |
Special steel |
|
1 |
|
40335 |
Spring clip for shaft bearing |
Steel |
|
1 |
|
40336 |
Oil seal for shaft |
Viton |
24 x 12 x 7 |
1 |
|
40337 |
Spring clip for oil seal |
Steel |
|
1 |
|
40338/20 |
Cam shaft (alternative) |
Special hardened seal |
2.0mm |
(1) |
|
40338/22 |
Cam shaft (alternative) |
Special hardened seal |
2.2mm |
(1) |
|
40338/26 |
Cam shaft (standard) |
Special hardened seal |
2.6mm |
1 |
|
40338/30 |
Cam shaft (alternative) |
Special hardened seal |
3.0mm |
(1) |
|
50339 |
Shaft key |
Steel |
5 x 30 |
1 |
|
50340 |
Cam connector |
Steel |
PR 80 |
1 |
|
50341 |
Grub screws |
Steel |
8 x 8 |
2 |
|
50342 |
Motor screws |
Steel |
5 x 10 |
4 |
|
50343/65 |
Motor group + brushes to B906 (parts 343,344, 365-372) |
Special alloys |
200 W nominal |
1 |
|
50443/65 |
Motor group + brushes from B907 (parts 443,444, 465-372) |
Special alloys |
200 W nominal |
1 |
|
50344 |
Brushes for motor |
Special carbon alloy |
15 x 10 x 5mm |
2 |
|
50444 |
Brushes for motors from B907 |
Special carbon alloy |
15 x 13 x 6mm |
2 |
|
50345 |
Earth screw |
Steel |
|
1 |
|
50365 |
Springs for brushes to B906 |
Steel |
|
2 |
|
50465 |
Springs for brushes from B907 |
Stainless steel |
|
2 |
|
50366 |
Stator for motor |
|
|
1 |
|
50367 |
Brush holder group to B906 |
|
|
1 |
|
50467 |
Brush-holder group from B907 |
|
|
1 |
|
50368 |
Winding for motor |
|
|
1 |
|
50369 |
Motor base section |
Aluminium |
|
1 |
|
50370 |
Tie-rod with nuts for motor base |
Aluminium |
|
2 |
|
50371 |
Motor bearing |
|
|
1 |
|
50372 |
Upper aluminium casing for motor |
Aluminium |
|
1 |
|
50373 |
Sacrificial anode set existing pumps |
Stainless steel/zinc |
|
1 |
|
50374 |
Sacrificial anode |
Zinc |
|
1 |
|
50375 |
Screws for sacrificial anode |
Stainless steel |
|
2 |
|
60346 |
Complete piston group (parts 347-350) |
Bronze/special steel |
|
1 |
|
60347 |
Vertical bearings |
Special steel |
22 x 20 |
2 |
|
60348 |
Piston axis rods |
Special steel |
|
2 |
|
60349 |
Bearing spacer rings |
Steel |
PR 80 |
4 |
|
60350 |
Piston body |
Bronze |
40mm |
2 |
|
60351/10 |
Springs 10kg (standard) |
Spring steel |
|
2 |
|
60352 |
Piston guide "O" rings |
Neoprene |
|
2 |
|
60353 |
Piston guides |
Stainless steel |
47.22 x 3.53 |
2 |
|
60354 |
Piston gaskets |
Neoprene |
|
2 |
|
60355 |
Gasket washers |
Stainless steel |
|
2 |
|
60356 |
Gasket plates |
Stainless steel |
|
2 |
|
60357 |
Conical gasket screws |
Stainless steel |
5 x 16 |
8 |
|
70358 |
Motor shroud with sealed cable |
Stainless steel |
Diameter 98mm |
1 |
|
70359 |
Fast on terminals |
Copper |
|
2 |
|
70360 |
Spade for earth terminal |
Copper |
|
1 |
|
70361 |
Motor cover base |
Stainless steel aisi 304 |
Diameter 98mm |
1 |
|
70362 |
Tie-rod straps |
Stainless steel aisi 304 |
|
2 |
|
70363 |
Electric cable max 1.5 ohm |
Neoprene |
1.5m; 3x1.5mm |
- |
|
80005 |
Sunprimer controller Mk II |
|
|
1 |
|
80020 |
Controller sealing ring |
Neoprene |
|
1 |
|
80050 |
Safety rope |
Polypropylene |
Diameter 6mm |
1 |
|
80051 |
Feed pipe 16 bar nominal |
Polyethylene |
ED 26mm, ID 19mm |
1 |
|
80060 |
Float switch |
LG1120A |
|
1 |
|
80061 |
Float switch wire (for burial) |
|
|
1 |
|
80070 |
Splice kit |
See specifications |
|
1 |
|
90956 |
Non-toxic oil Petro-Canada |
Purity FGA W46 |
40cc |
1 |
Most of the tools are not necessary but are listed for
the eventual convenience of national and local distributors. No maintenance is
required of the end user. Screwdrivers and allen keys used should be of the
highest quality only. Non toxic oil should be used inside the pump body. A
recommended oil is listed, but practically any oil, including edible vegetable
oils can be used.
|
Code |
Description |
Materials |
Dimensions |
No.pieces |
|
90901 |
Piston support tool |
For operator's convenience |
Special tool |
1 |
|
90904 |
Piston spindle driver |
For operator's convenience |
Special tool |
1 |
|
90907 |
Pump body clamp support |
For operator's convenience |
Special tool |
1 |
|
90910 |
Wing nut for clamp |
|
|
1 |
|
90913 |
Valve spindle mounting support |
For operator's convenience |
Special tool |
1 |
|
90914 |
Pump body support tool |
For operator's convenience |
Special tool |
1 |
|
90917 |
Chain wrench |
|
12 MA |
1 |
|
90920 |
Flat screwdriver |
|
no.6 |
1 |
|
90923 |
Star screwdriver |
|
no.6 |
1 |
|
90926 |
Allen key, hexagonal |
|
no.3 |
1 |
|
90929 |
Mallet, small |
Wood or plastic |
|
1 |
|
90932 |
Extension socket spanner |
|
Size 13 |
1 |
|
90935 |
Ring spanner |
|
Size 22 |
1 |
|
90938 |
Ring spanner |
|
Size 36 |
1 |
|
90941 |
Allen key |
|
8mm |
1 |
|
90944 |
Socket spanner |
|
Size 7 |
1 |
|
90947 |
Cable stripper (small) |
|
|
1 |
|
90950 |
Marine grease |
|
|
|
|
90953 |
Silicon (alternative to grease) |
|
|
|
|
90956 |
Non toxic oil Petro Canada |
Purity FGA W46 |
5 liter tins |
|
|
90959 |
Hemp wool |
|
|
|
