WASO INTEGRATED SELF-FINANCING RURAL DEVELOPMENT PROJECT

NEW HORIZONS FOR WASO

SAMBURU DISTRICT,KENYA

INCORPORATING LETS AND COMMUNITY BANKING

PREPARED FOR THE NGO "PARAN INTEGRATED PROGRAMME", ARCHER'S POST, KENYA

BY

PETER GATUNA, READING, ENGLAND

AND

T.E.MANNING, CONSULTANT, WIERINGERWERF, THE NETHERLANDS


Edition 03: 09 October 2003


Extra-short Executive summary

Executive summary

List of key words

The project in detail

THE AUTHORS

Peter Gatuna

Peter Gatuna is a native of the Samburu District.
Curriculum of Peter Gatuna
Photo of Peter Gatuna  (currently not available)

He wishes to cooperate with Terry Manning to promote integrated self-financing development concepts in the Waso area of the Samburu district in Kenya. Mr Gatuna is supported by the Samburu County Council and in particular the three councillors for the Waso project area, by the Member of Parliament for Samburu, and by the national government through the Ministries for Poverty Alleviation, Rural Water Suppply, Rural deveopment, Health, and Education, who collectively wish to co-finance and promote the project.

Terry Manning

Terry Manning is a developer of technologies and self-financing integrated development concepts for the world's poor. He is a 62 year old New Zealand lawyer and the author of the Model on which this project "New Horizons for Waso" has been based. His work has been placed in the public domain and is available for consultation and downloading from the homepage of website www.flowman.nl

Basic concepts

The project is founded on the idea that most people in the Waso project area are able and willing to pay for their own hygiene education, water supply, sanitation, rubbish disposal and bio-mass production structures provided they have the seed money necessary to get started. The seed money will be interest-free.

The project "New Horizons for Waso" will be financed using a 10 year interest-free development loan for Euro 4.500.000, local currency or LETS (Local Exchange Trading) systems and a cooperative interest-free Micro-credit system modelled on the successful Grameen banks in Bangladesh.

There is ample potential to develop the production of goods and services at community level in the project area where development is presently restricted by a chronic lack of formal money. Leakage of financial resources away from the project area makes the problem worse because it artificially limits the people's basic right to produce and exchange goods and services.

The financial proposals allow funds in both the local LETS currencies and the formal, or ordinary, currency to be re-circulated - interest free- as many times as possible within the participating communities. Financial leakage from the project area is discouraged.

A local cooperative bank (the Waso Cooperative Development Bank) dedicated to development in the project area will be set up to support the project by pioneering the introduction of interest-free cooperative micro-credits for productivity development in the Waso Division area.

Mass capacitation techniques, as introduced by the Brazilian Clodomir Santos de Morais, through which the users themselves organise, execute, run, maintain, pay for and own the structures set up under the project are used to set up the main project structures.

The "Gypsum composites " technology developed by the Dutch technology developer Eos Consult enables many items important to local development projects to be made in low cost labour-intensive local production units with 100% local value added without the need for any formal money at all.

Hygiene training programmes based on the formation of Community Health Clubs have been successfully developed and introduced by the NGO Zimbabwe A.H.E.A.D. Hygiene education will also be made available to schools.

Real savings on present fuel costs for cooking and a possibility of qualifying for carbon emission reduction certificates for sale go a long way towards financing the project.

This proposal is essentially self-financing, subject to certain aspects involving interest payments, exchange rate variations and "insurance" set out in detail in the project document.

The NGO Paran Integrated Program

Paran is a non governmental, non profit making community based organization based in the Samburu district of Kenya. It was formed in August 1999 and registered with the Samburu District Council under register number SBU/DSS/CD/1/A568. (Certificate not supplied.) The overall goal of the NGO is to mobilize the community against poverty and to protect the environment.

SCHEDULE 11 Constitution and Statutes of NGO Paran.


THE FOLLOWING DRAWINGS AND GRAPHS FORM AN INTEGRAL PART OF THIS PROJECT PROPOSAL

DRAWING OF INSTITUTIONAL STRUCTURES

AUDITING STRUCTURES

CASH FLOW DIAGRAM

TANK COMMISSIONS - THE KEY STRUCTURES

WELL COMMISSIONS

DRAWING OF LETS STRUCTURES

HOW A LETS TRANSACTION WORKS

DRAWING OF WATER SYSTEM STRUCTURES

DRAWING OF WASTE DISPOSAL STRUCTURES

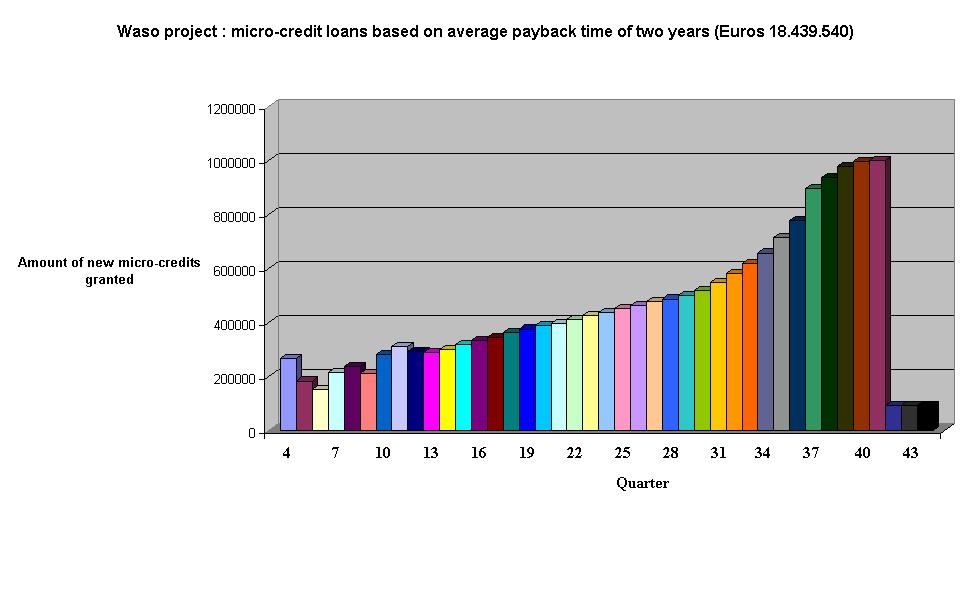

CHART ILLUSTRATING MICRO-LOANS SCHEME

HOW THE ORIGINAL SEED LOAN MONEY IS USED

THE INTEREST-FREE LOAN CYCLE

DRAWING OF TYPICAL WATER TANK AREA

DRAWING OF GYPSUM COMPOSITES  COMPOSTING TOILET TANK

DRAWING OF TYPICAL HIGH EFFICIENCY GYPSUM COMPOSITES  STOVE

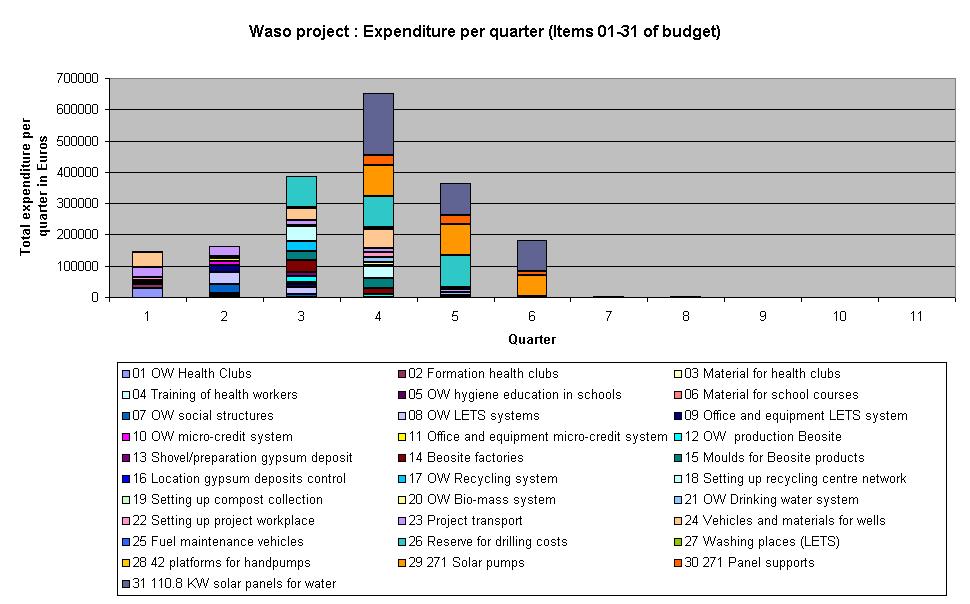

PROJECT EXPENDITURE BY QUARTER (ITEMS 1-29 OF THE BUDGET)

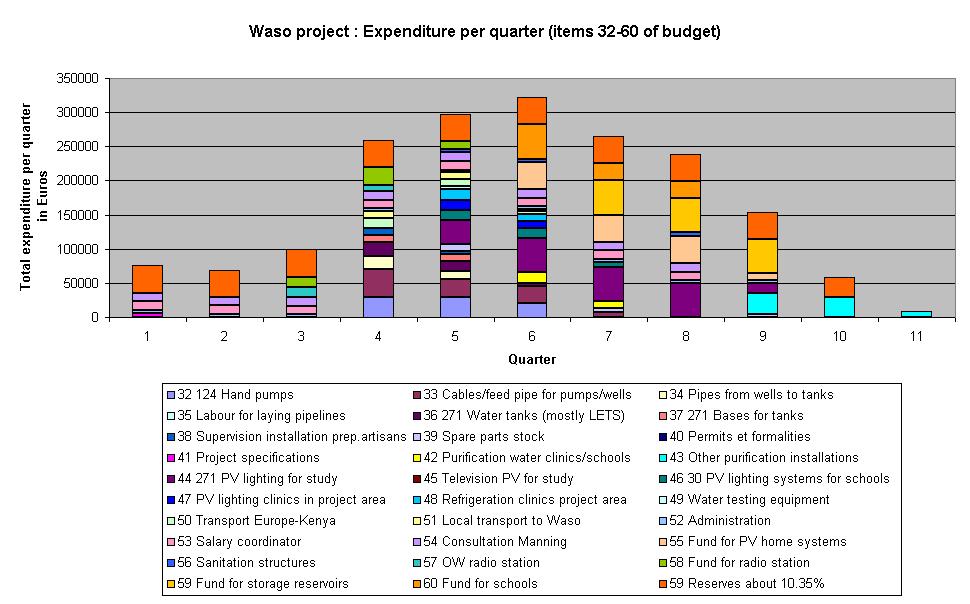

PROJECT EXPENDITURE BY QUARTER (ITEMS 30-58 OF THE BUDGET)

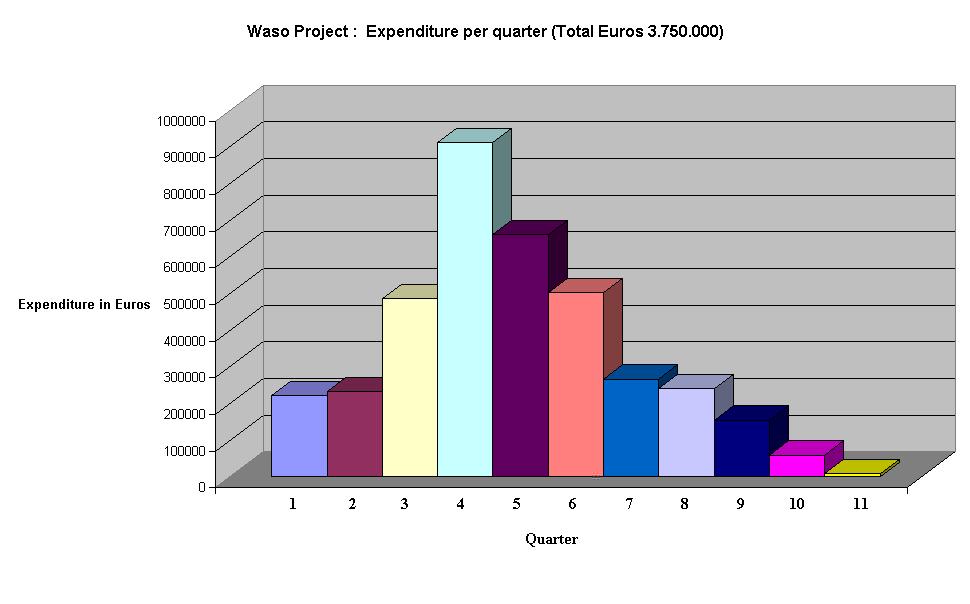

TOTAL PROJECT EXPENDITURE BY QUARTER

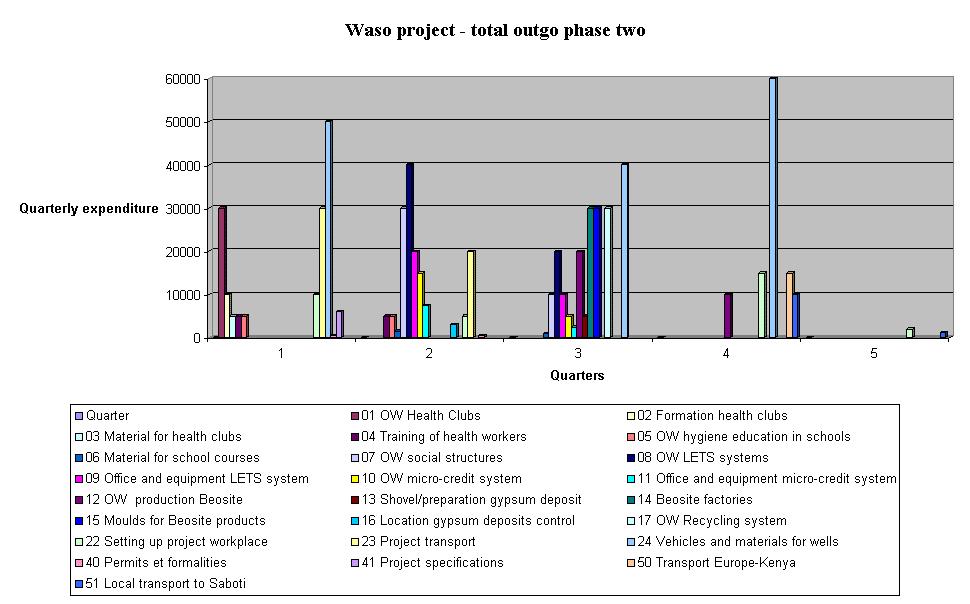

PROJECT EXPENDITURE PHASE 2

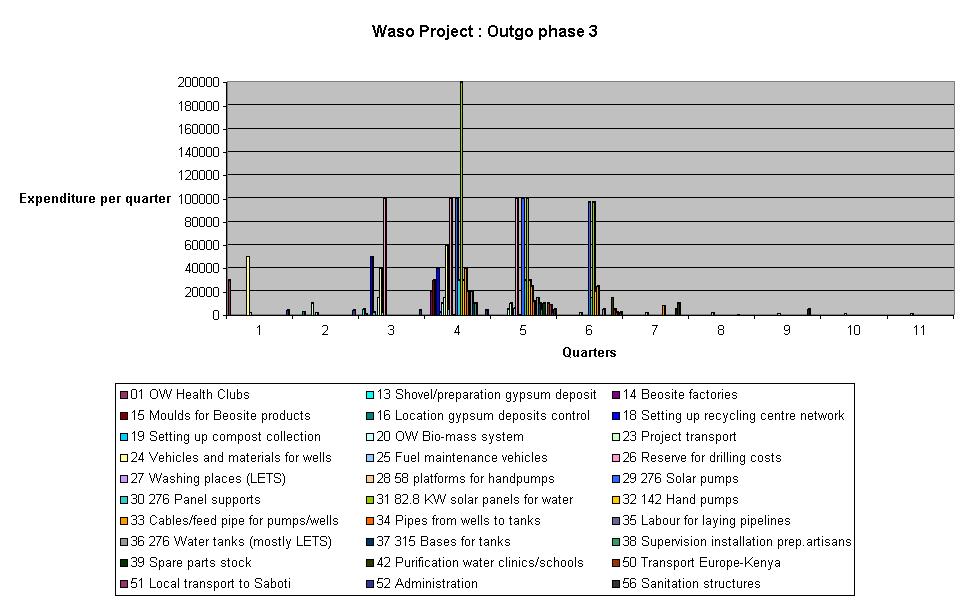

PROJECT EXPENDITURE PHASE 3

PROJECT EXPENDITURE PHASE 4

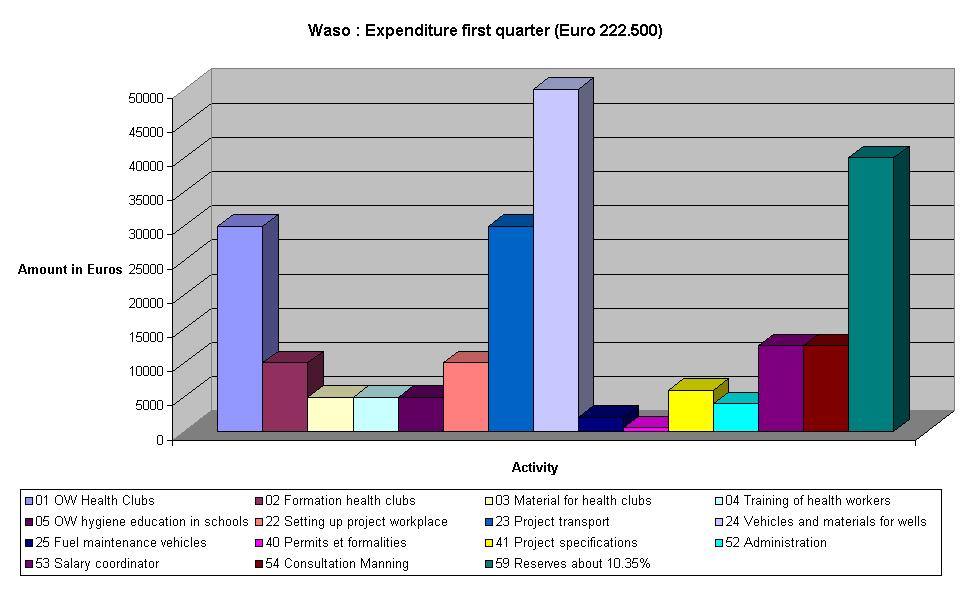

DETAILED EXPENDITURE FIRST QUARTER

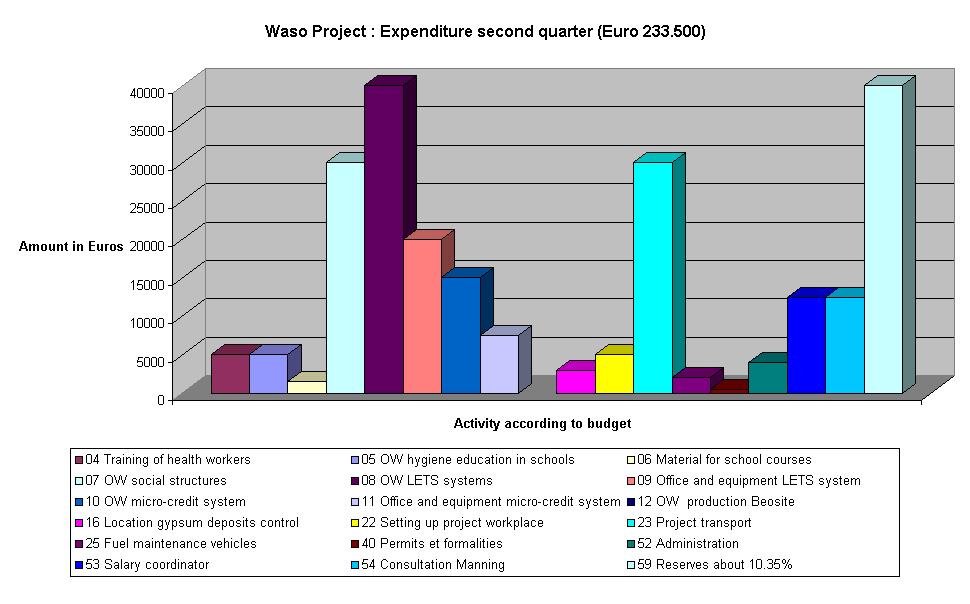

DETAILED EXPENDITURE SECOND QUARTER

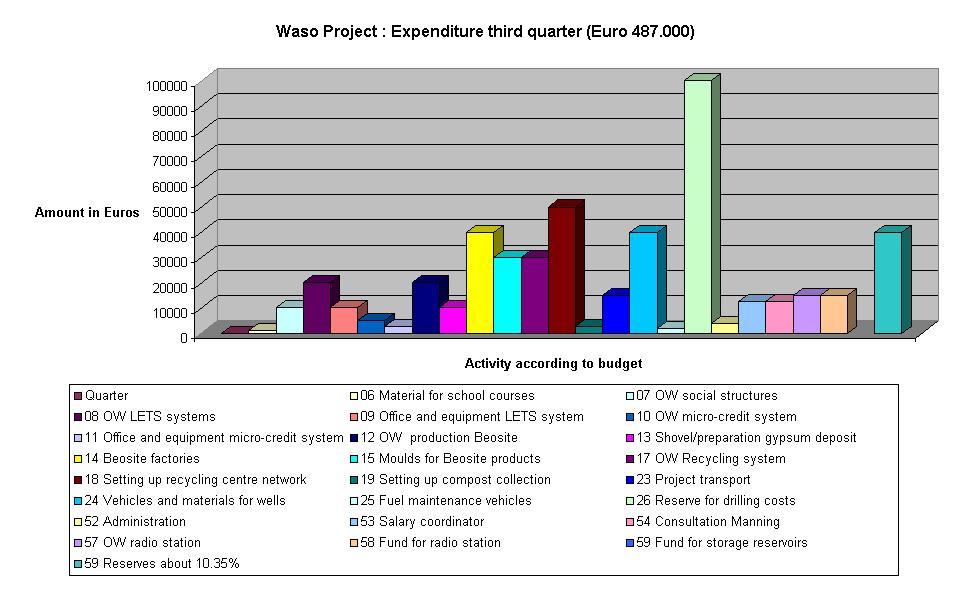

DETAILED EXPENDITURE THIRD QUARTER

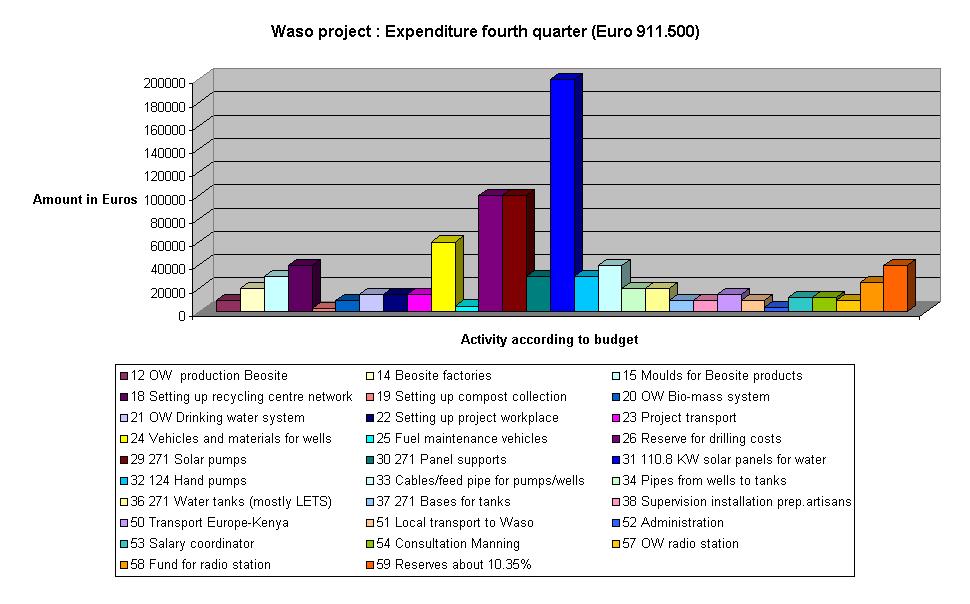

DETAILED EXPENDITURE FOURTH QUARTER

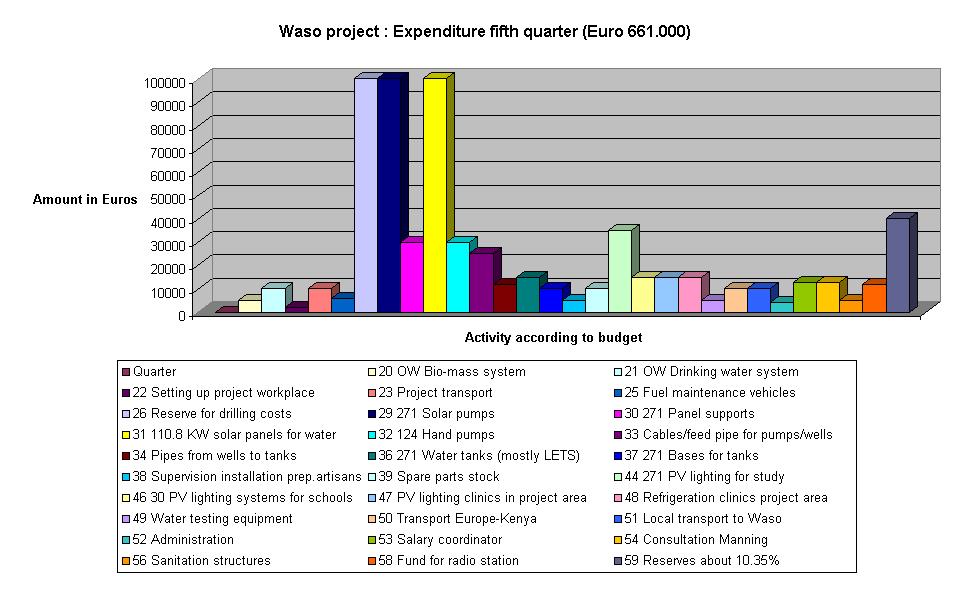

DETAILED EXPENDITURE FIFTH QUARTER

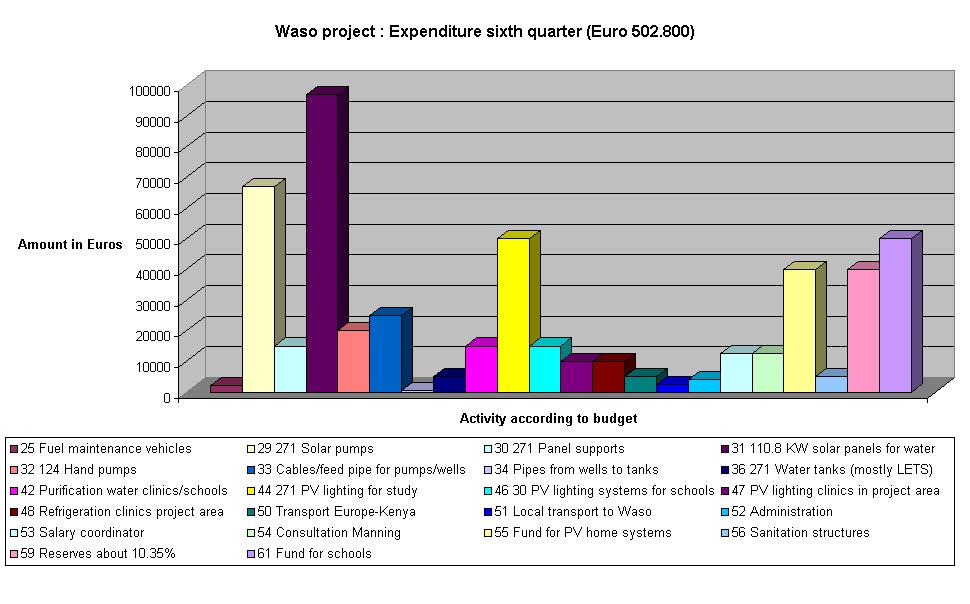

DETAILED EXPENDITURE SIXTH QUARTER

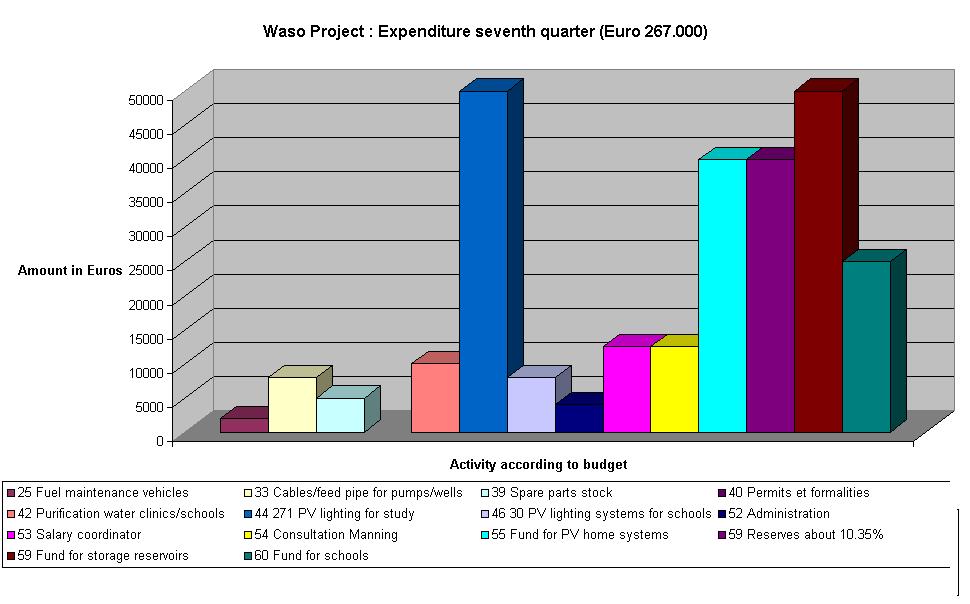

DETAILED EXPENDITURE SEVENTH QUARTER

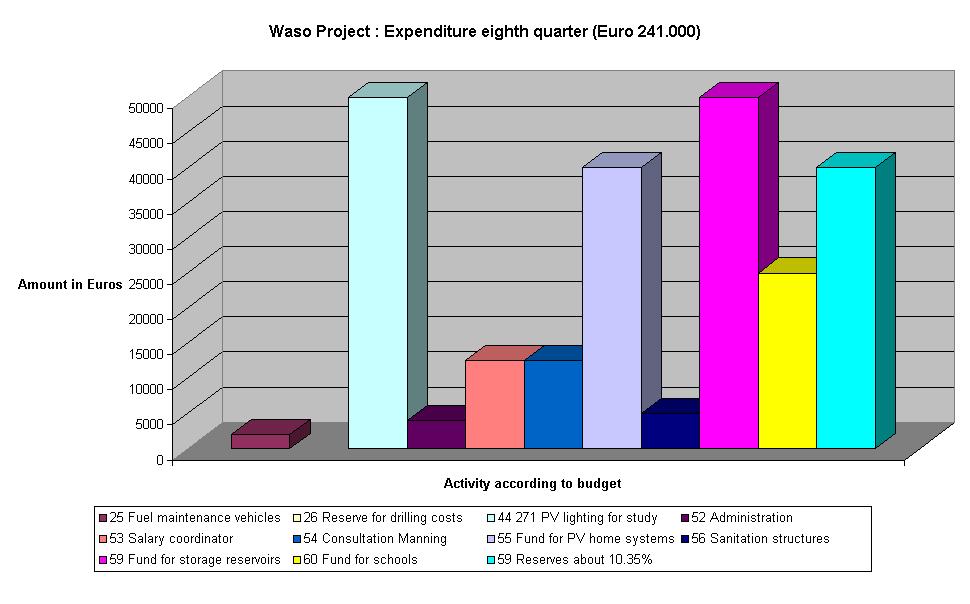

DETAILED EXPENDITURE EIGHTH QUARTER

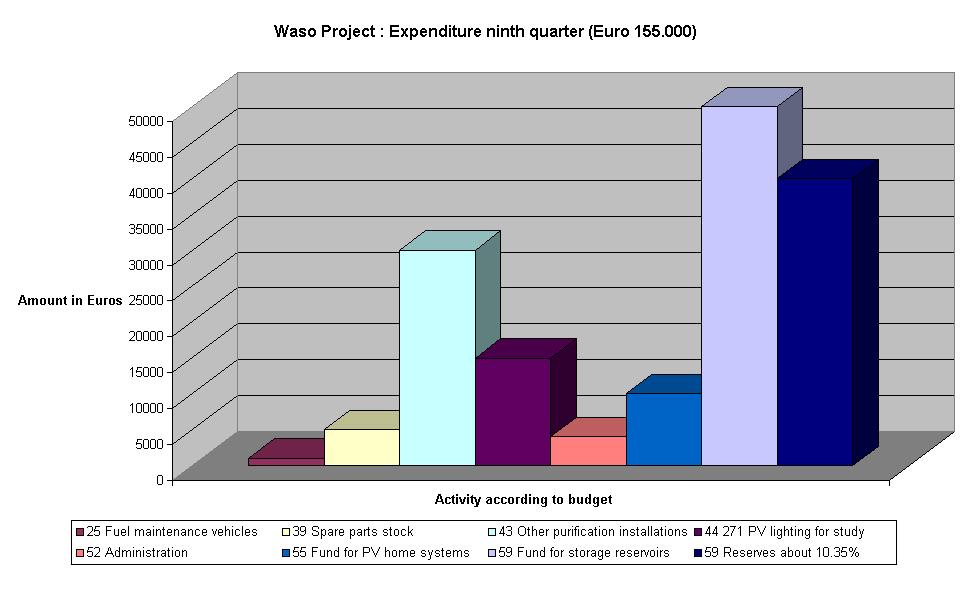

DETAILED EXPENDITURE NINTH QUARTER

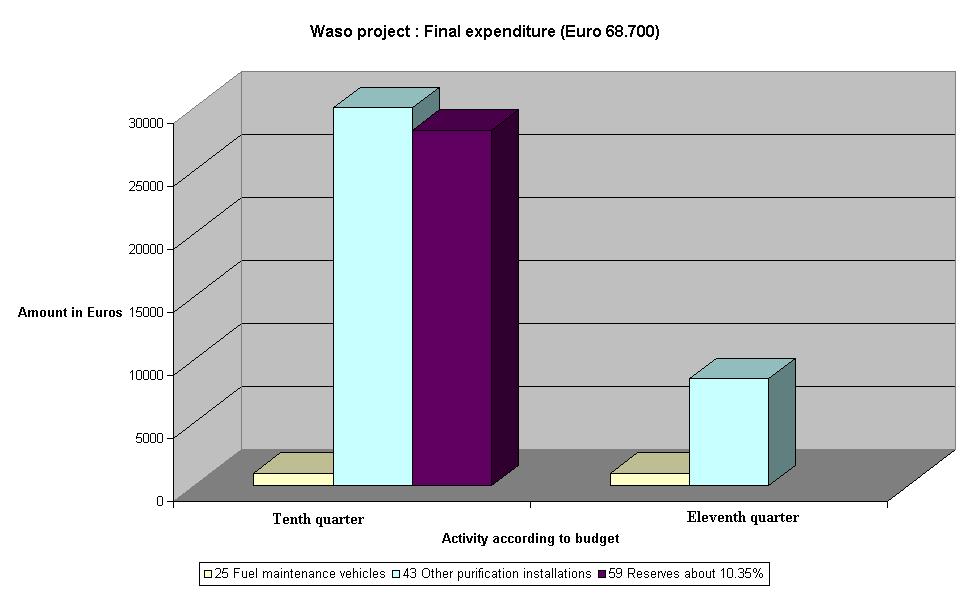

DETAILED FINAL EXPENDITURE




LIST OF ABBREVIATIONS USED

Abbreviation

Description

CASO4

Calcium sulphate

DIAM

Diameter

DIAM EXT

External diameter

DIAM INT

Internal diameter

EG

For example

H2O

Water

LETS

Local exchange trading system

NGO

Non governmental organisation

PV

Photovoltaic

SHS

Solar home systems

TV

Television

UV

Ultra-violet

V

Volt

Wp

Watts peak




CONTENTS

Page

Contents







General cover



Draft letter to Minister



Cover page to executive summary



Executive summary

001

Cover page project document

002

List of key words



Introduction

003

Drawings and graphs part of the project documents

005

Contents





008

1. Project background

011

2. The project

012

2.01 Immediate goals

012

2.02 Long term goals

013

2.03 General economic bases of the project

014

2.04 Principles behind the project

015

2.05 The five conditions precedent for a project applications

016

2.06 Institutional structures

023

2.07 The question of ownership



2.08 Assurances as to performance



2.09 Taxation under the local exchange trading (LETS) systems

024

2.10 The effects of inflation on seed loan payments and gift content

025

2.11 Insurance and gift content

026

2.12 Information flow

027

2.13 Recycling of funds and imported goods

028

2.14 Project auditing





028

3. Planned works and results

029

3.01 Hygiene education structures

029

3.02 Sanitation facilities

031

3.03 Local Gypsum composites  production units

032

3.04 Water supply structures

032

3.05 Institutional developments

034

3.06 PV lighting television and refrigeration

034

3.07 Domestic solar home systems

035

3.08 Underground water storage structures

037

3.09 Local radio station

038

3.10 Education structures

039

3.11 Payments and on-going costs





036

4. Work plan



4.1 First, initial research phase

037

4.2 Second phase



4.2.0 Payment of the project funds



4.2.1 Health Clubs and Hygiene Education in schools

040

4.2.2 Local social structures

041

4.2.3 LETS local money systems

042

4.2.4 Micro-credit system structures

043

4.2.5 Gypsum composites production units

045

4.2.6 Recycling structures

046

4.2.7 Structures for the production of bio-mass for stoves

047

4.2.8 Structures for radio station

049

4.2.9 Structures for drinking water distribution

051

4.3 Third, implementation phase



4.4 Fourth, second implementation phase





052

5. Short indicative budget

053

Outgo (capital)

054

On-going costs and income



Comments

055

Recycling of funds for micro-loans





055

SCHEDULE 1 - The project in detail







01. Justification of the project

057

02.00 Cooperation of the local people

058

02.01 Health clubs and hygiene education

059

02.02 Social structures

060

02.03 Local money LETS structures

062

02.04 Micro-credit structures

063

02.05 Gypsum composites  production units

064

02.06 Recycling structures

067

02.07 Energy efficient stoves and bio-mass production

068

02.08 Drinking water supply



02.08.1 Siting of boreholes and wells

069

02.08.2. Basic project specifications

119

02.08.3. Summary of water supply

120

02.08.4. Principles for siting water supply structures

121

02.08.5. Well linings

121

02.08.6. Equipment of water points near the users' houses

122

02.08.7 Budget items relating to the water supply systems

127

02.09. PV lighting, television and refrigeration

129

02.10. Reforestation and water harvesting

131

02.11. The project and educational structures

132

02.12  The local radio station

133

02.13  Underground water storage for cultivation



List of supporting schedules



Schedule 01 : The project in detail



Schedule 02 : Information on Clodomir Santos de Morais and the Organisational Workshops

 :

SCHEDULE 2 BIBLIOGRAPHY



SCHEDULE 2 ORGANIZATION WORKSHOPS



SCHEDULE 03 Project maps



SCHEDULE 04 Technical information on solar pumps



SCHEDULE 05 Technical information on hand-pumps



SCHEDULE 06 Technical information on the Gypsum composites process



SCHEDULE 07 The hygiene education programme



SCHEDULE 08 Operation of the local currency (LETS) systems



SCHEDULE 09 25 progressive steps for local development



SCHEDULE 10 MATERIAL FOR PRESENTATIONS USING TRANSPARENTS OR POWERPOINT



SCHEDULE 11 Constitution and Statutes of NGO Paran Integrated Programme, Archer's Post



The Role of Micro-credit in integrated self-financing development projects



Water supply issues in self-financing integrated development projects for poverty alleviation



PV and Biomass aspects and their Financing



Integrated bio systems : a global perspective



New horizons for RE technologies in poverty alleviation projects

81

Acknowledgements








1. PROJECT BACKGROUND

1.01 Introduction

Basic hygiene education, sanitation, waste recycling, and clean drinking water are fundamental to healthy life. A third of the world's population still lacks access to clean drinking water. An even larger number lack reasonable sanitation.

Supplying such basic life needs warrants top priority within the framework of foreign aid programmes for the benefit of the poor in developing countries, including Kenya.

Development of local production and services is hindered by a chronic lack of formal money. The little formal money there is leaks from the local economy to national, or more often, international, havens.

The project will permanently improve the quality of life and stimulate on-going local economic development of the people in the project area. It will establish local exchange trading (LETS) systems for the exchange of local goods and services and provide interest-free seed money to fund micro-credit loans. It includes hygiene education, sanitation, clean drinking water, lighting for study, efficient cooking equipment and means of producing bio-mass to fuel the stoves as well as a system for recycling non-organic solid waste. Services may be extended in a later phase to rainwater harvesting and Solar Home Systems. A project radio station will be set up. The project will also encourage local contribution to improved primary and junior secondary education structures.

The proposed hygiene training, sanitation, and drinking water systems take the social structures of the communities into account. All structures are self-financing and remain financially viable and sustainable without the need for further seed money once the initial interest free seed loan has been repaid.

1.02 The Waso project area

The Waso project area is one of the 6 sub-districts of Samburu in Kenya. It is bordered by the Wamba subdistrict of Samburu to the West, and the districts of Marsabit to the North and Isiolo to the East and South. The project area covers about 6000 km2 being 100km north-south and 60 km east west.

The area is divided into 3 administrative divisions, being Waso West to the South West with an expected population of about 22.000, Waso East in the South East with an expected population of about 21.000, and Sere Olipi to the North with an expected population of 14.000.

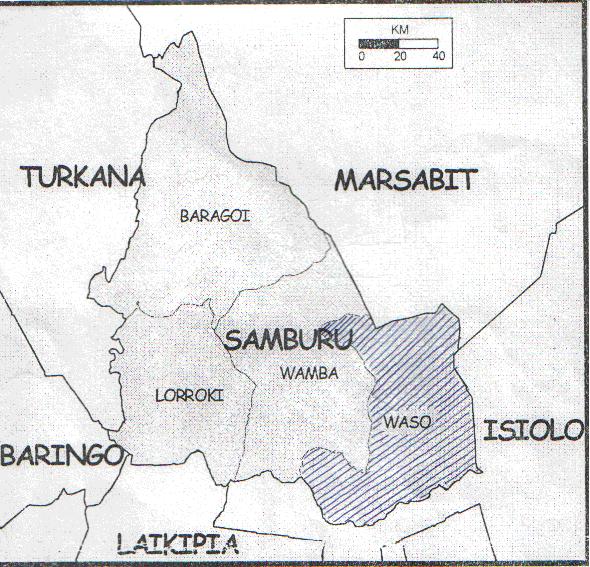

The Samburu district
Waso : concise map

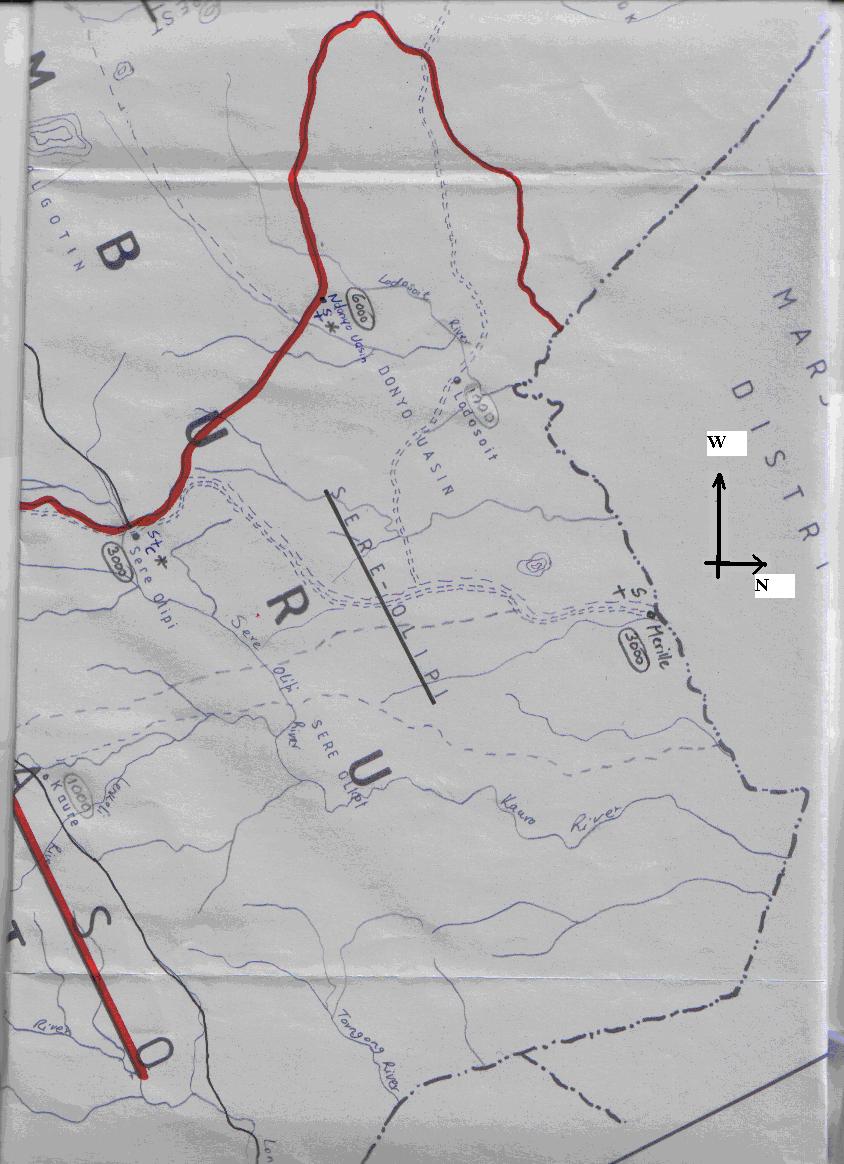

Waso : the Northern part

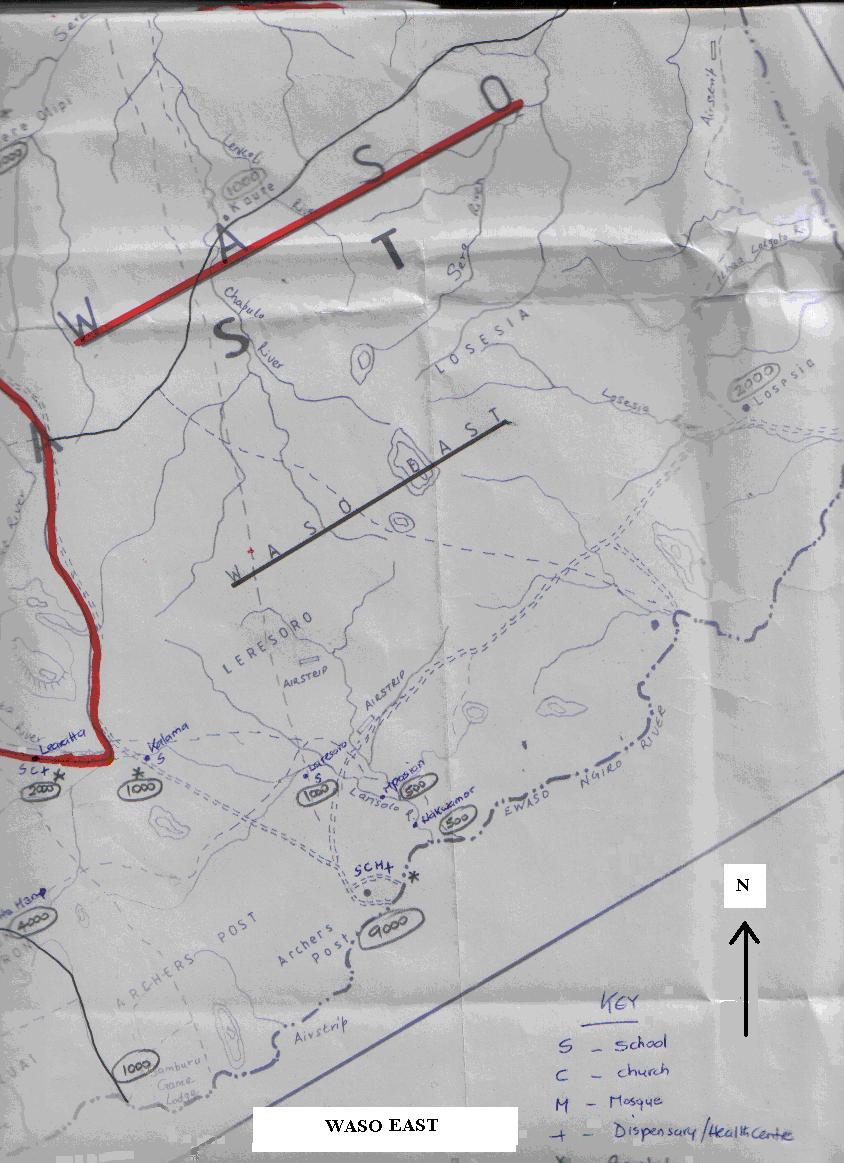

Waso : the Eastern part

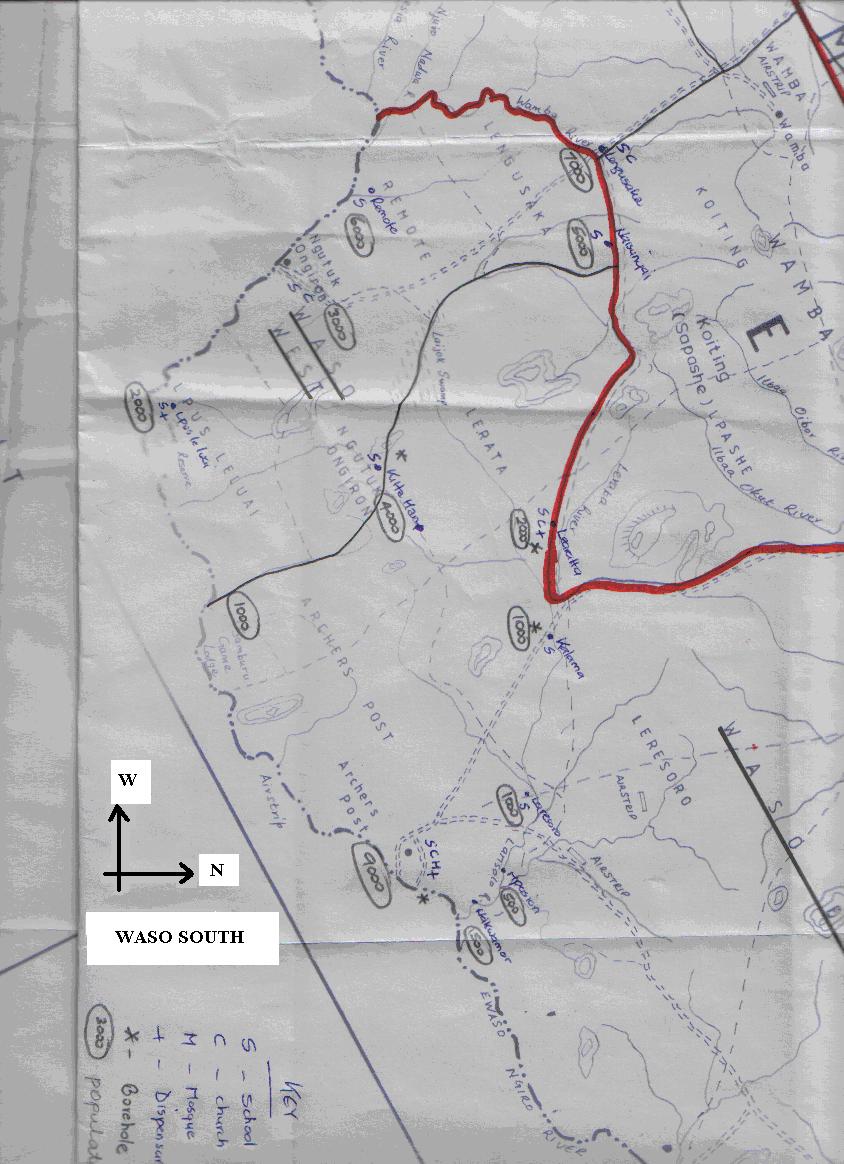

Waso : the Southern part

The geography of the area is irregular with several water catchments with a dominating west-east direction. Particular mention is made of the Sere Olipi river system in the North, the Sera-Lontopa rivers system in the centre, and the Losesia and Lanisolo systems in the South.

Most of the area forms a heavily forested (??) reserve (the future Samburu National Park) which has not yet been declared a national park but which is under the administration of the Ministry of  the Environment ?????

The area is believed to have a population of about 58.000 with an average of about 6 persons per family. The population is mostly made up of Northern Masai tribes.

The people are mainly semi-nomadic pastoralists and still move around from one temporary shelter to another in search of water and pastures. About 90% of the inhabitants are illitreate. The primary school population is just 2000, while less than 100 children go to secondary school.

Each of the three administrative divisions elects a councillor to the Samburu County Council, and together with the adjacent sub-district of Wamba elects one member to the national parliament. The local councillors, F.D.Lolosoli for East Waso, K.Leporole (West Waso) and Lendira (Sere Olipi) gave their formal approval in principle to this project on behalf of the Samburu County Council on 7th March 2003.

The main town is Archer's Post in the extreme South of the area, on the border with the Isiolo district.

Maximum daily temperatures are usually between 34-40 degrees Celsius

1.03 The local economy

Most of the people live off semi-nomadic pastoralism. More recently some have been trying to farm lands. The man is the main bread winner and head of the household. He controls the family wealth. Women do household chores, look after the children, and build shelters. The man herds, seeks employment, feeds, clothes and protects the family. There are rarely any surpluses, but if there are any, they are used to buy livestock.

There is no individual landholding tradition. In pastoral areas people build temporary shelters. In the settlements semi-permanent or permanent structures are built and temporarily leased by the county council.

The general economic situation of the people has been worsening. Dry weather conditions currently prevail. Livestock prices have experienced a downward trend due partly to cattle diseases (lumpy skin disease and east coast fever) and partly to the distance of the area from reliable markets. The people are forced to import even vegetables.

For the few children who go to school, schooling is limited to learning to read and write. The school population is limited to about a thousand pre-school children and 2000 primary school children. Less than 100 children attend the only secondary school in the area. The very few people with more advanced education leave the project area in search of further education or jobs in the cities.

The area has in general been neglected by the successive Kenyan governments.

Available local resources include saltlicks at dry river beds, gemstones, wildlife, sand gravel and building stones.

There is no electricity supply network in the project area, not even in the larger villages. Rural communities depend on other sources of fuel. Over 90% of the people in the area use wood fuel. The total lack of electrification in rural areas is perceived to be a major handicap to their development.

1.04 Water

The project area is arid. Average annual rainfall in the very arid parts is between 150-250mm, while in the arid parts it is 300-350mm. There is a short rainy period between October and November and a longer rainy period from March to May. The rainfall is not enough for crop production. The soil is sandy and its water retention capacity is poor.

There is a general wide-spread scarcity of water for drinking, cooking, and washing. The average amount of drinking water currently available is only about 8 litres per person per day, while the commonly accepted minimum amount required is 20 litres. This water is used for cooking, washing, sanitation, and drinking. Wells are dug in the beds of rivers, most of which are seasonal. In some of the larger centres (Kitta Man, Archer's Post, Sere Olipi, Ndonyo Uasin) some of the people use water pumped from boreholes and springs. Water is not treated and water related diseases are endemic even in the larger centres.

Women fetch the water, which is kept in small calabashes, sometimes in jerry cans, which hold 5- 20 litres. There is no training on how to keep these vessels clean. The average distance walked to fetch water from traditional river wells is 3km. This can be even further for catchment pools. The few available boreholes (there are just 6 of them in an area of 6000km2) are placed closer to the settlements, but even then women have to walk on an average more than 2km to reach them. Where people have to walk to running rivers for their water, this distance can be nearly 5km. Fetching water takes a good deal of their time and effort which could otherwise be used to improve the living conditions of  the families. Supply of readily accessible clean drinking water should improve the health of the whole population and ease the pressure of work on women. Water-borne diseases such as malaria, typhoid, dysentery, gastroenteritis, and skin diseases are endemic. They affect the quality of life and the productivity of the people, and medicines consume vital parts of the incomes of those affected.

In the larger centres, a few cement or PVC water tanks are available for a privileged few.

Because of the semi-nomadic nature of the people, rainwater harvesting is practically unknown in the area. While there is a potential for the creation of (underground) water storage in or near seasonal river beds during the wet season, standard supplies of drinking water are expected to come from dug wells or drilled boreholes. Rain-water harvesting in or near river and stream beds is foreseen for small-scale cultivation during the dry seasons.

Hot water is not available anywhere, except for cooking purposes.

1.05 Diet

Locally available foods are wild berries, barks, wild fruits, gum, leaves, tubers, meat, blood, milk, and, since there is a small local bee-keeping activity, honey. Traditionally the staple foods were meat, blood and milk produced at subsistence level. Now maize flour has become the main food item, together with salt, sugar, tea and oils (fat) and 95% of food requirements are imported into the project area, causing disastrous financial leakage.

There are no facilities, either collective of private, for the storage of food, which is not kept for more than 7 days.

Malnutrition has been increasing in the district. Diet-related diseases as Marasmus, Kwashiorkor are manifest. Cases of malnutrition are highest among the landless population who, because of lack of ownership of land, cannot diversify their food production and intake. They therefore consume the available food (imported maize flour) with total disregard to its nutritional value.

1.06 Cooking

Cooking is the most energy intensive activity in the project area.

Cooking is currently done by women and girls over an open fire in clay posts or deep factory made "sufurias" or pans. Cooking time varies from 15 minutes for maize porridge to 30 minutes and more for boiling meat. In the larger settlements this can lead to air pollution both inside the houses and in the community.

Fuels used for cooking are wood in the pastoral areas and charcoal in the larger settlements. A "debe" (20 litre jerry can) of charcoal per day of wood costs 60 K. shillings (about Euro 0.65). Wood collected from the bush 6-10 km away costs K Shillings (Euro 0.33) per bundle. Large parts of meagre family incomes are therefore spent on fuel for cooking. The unsustainable use of wood leads to de-forestation and erosion, air pollution and health hazards. Moreover, the traditional cooking methods used are inefficient. The project therefore introduces highly efficient stoves. They will be locally manufactured within local currency LETS systems.

Bio-mass needed to produce mini-briquettes to fuel the stoves will also be locally produced and treated, without limiting the use of the natural fertilisers in local agricultural production.

Locally manufactured solar cookers will also be introduced where daytime cooking does not contrast with local customs.  The project will bring major savings in the costs of cooking. These savings alone will cover most if not all of the monthly contributions made by the families to the project.

1.07 Lighting and study

Little lighting is required in rural areas, except for cooking and eating. Some lighting is needed in homes and shops in the larger settlements. The wide-spread need for lighting for study purposes has been confirmed by the people. Inadequate and unhealthy paraffin lamps are being used for form four and other students.

Firewood is mostly used for lighting especially in rural areas. Each family typically uses a bundle a day with a daily cost of K shillings 30 (Euro 0.33) or Euro 10 per month.

Paraffin lamps are used in the larger settlements, at a cost of K.sh.  30 per half litre, with a monthly outgo of Euro 10.

Current outgo for lighting in both rural areas and the larger settlements justifies the setting up of cooperative structures for the interest-free purchase of high efficiency solar lighting systems for individual homes.

1.08 Transport

The few, poor quality (?????), roads in the project area are classified as "all weather" roads, which is an important advantage for the project.

In rural areas donkeys and occasionally camels are used for transport. In the settlements, pickups and trucks are more common. Transport if mostly used for household goods and foodstuffs. The distances covered can be considerable. Costs are involved only when pickups and trucks are used and a ride can cost anything between Euro 0.20 and more than 1 Euro, depending on the distance..

1.09 Communication

The means of communication in rural areas are scarce. Communication is usually by word of mouth, to pass on information and messages.. Games wardens communicate with walkie-talkies in areas where wildlife conservation is practised and for tourist security.

Radio frequencies are controlled by the CCK (?????) and licences are a prerequisite. The use of a local radio system is considered very useful for security purposes and for passing on information. Telephones cost about Euro 0.06 per minute.

Infrastructural development with improved means of communication are perceived to be very important in the project area. Even trading centres in the various sub-locations lack telephone services.

1.10 Hygiene education and health

Basic hygienic principles such as washing hands before meals and after visiting the toilets are not commonly applied. There are no courses available for training women. School courses do not include any basic introduction to personal and environmental hygiene.

Hygiene education in the area must therefore start from scratch.

The health facilities in all the sub-locations in the Waso area are inadequate to serve the populations. The health facilities are ill equipped and often experience shortage of drugs, so that patients may have to travel a long way for treatment. Only six localities (Lpus Leluai, Levatta, Archer's Post, Sere Olipi, Merille and Donyo Uasin) have a dispensary or a health centre.

This imbalance can be only partly addressed under this project, which cannot substitute the basic obligations of the state.

The major causes of infant mortality throughout the project area are malaria, diarrhoea, typhoid, HIV/AIDS and intestinal worms. The project can make an important contribution in the fight against these diseases by providing clean water sanitation and improved drainage, and by eliminating smoke hazards, stagnant waters, and ensuring a more varied diet.

1.11 Sanitation

The people have generally no private sanitation facilities.

Toilet structures (mostly in the towns) are made by use of locally available materials such as bricks, wood and stones. They mostly take the form of the VIP-ventilated improved pit latrine. Urine and excreta are disposed in the same latrine. The cost of building one of these VIP latrines is Euro 200 per latrine. People use leaves, papers and water to clean their bottoms. There are no specific cultural taboos concerning urine and excreta. Customs related to privacy when washing (women together, men together) have, however, to be observed at all times.

Rural areas in the project area lack latrines altogether.

1.12 Rubbish collection

Rubbish in the project area is mostly domestic. Rubbish is simply scattered anywhere and is reported as being "an eyesore". It poses a health hazard and allows flies, rats and other pests to breed. It also causes bad smells.

The project includes setting up local recycling centres to add value to waste products. It enables recycling of some materials within the local currency systems. Export of residual waste materials will provide formal currency income to repay micro-credit loans advanced to the recycling centres.

1.13 Housing

In rural areas women construct temporary shelters due to their nomadic nature. The shelters are made of branches and sticks and covered with mats made from local sisal, hides and skins or cows' dung.

Those living closer to or in larger centres use cartons, pieces of corrugated iron sheet and plastics to make their shelters.

In the larger centres, cement, clay, timber, local stones and corrugated iron sheets are used. Thatching using local down palm is also common.

The buildings can be either temporary, semi-permanent, or permanent. Seasonal heating is not considered necessary.

2. THE PROJECT

The project is centred on basic hygiene education, on the installation of sustainable sanitation, distributed clean drinking water, PV lighting for study, for the people of the Waso area in the Samburu district in Kenya, and on the supply of efficient stoves for cooking, the production of bio-mass to fuel them, and recycling at local level and disposal of non-organic waste.

The project includes setting up Community Health Clubs for hygiene education and hygiene education courses in schools; provides sustainable toilet and wastewater facilities, wells (wherever necessary), pumps, and water tanks; establishes local exchange trading (LETS) systems to promote local exchange of goods and services; and implements an interest-free revolving micro-credit system to pay in formal currency for items and services originating outside the local communities.

The project also refers to PV (photovoltaic) lighting for study and in clinics, and PV refrigeration for medicines. Any PV lighting needed for separate local production initiatives would be included within their respected micro-credit schemes. PV operated TV sets for education can be included. Private Solar Home Systems (SHS) will be introduced through self-terminating cooperative credit groups at tank commission level where users are financially able to sustain such obligations as well as meet their monthly contributions under the project itself.

High efficiency stoves for cooking will be produced with 100% local value added as will the bio-mass necessary to fuel them.

Where daytime cooking is not in conflict with local customs, local manufacture of Gypsum composites  solar cookers will be set up under the LETS systems.

Recycling centres will be set up to recycle non-organic refuse within the local currency systems.

Harvesting rain-water to increase agricultural production and the general quality of life is promoted.

The project cost is Euro 3,750,000, which can be 100% financed through an interest free loan with a 10 year repayment time. Of the interest-free loan, 75% is expected to be made available within the framework of the country programme of one or more aid partners, and 25% by the Government of Kenya.

A detailed indicative budget is set out on page 38.

The project will be continued for at least a further 8 years beyond the initial two years' start-up period. After the initial two years, further development will be generated by the communities themselves under the supervision of the Project Coordinator.

The initial project will take 24 months from the date funding is approved, more particularly:
- Phase 1 : preparation and submission of the basic project.
- Phase 2 : final project preparation, arrangements with tax authorities, formation of Health Clubs and starting hygiene education, starting organisation of Gypsum composites production units, setting up of local currency LETS groups; final project approval : 6 months
- Phase 3 : continuing hygiene education, building the sanitation services, installing wells, pumps and tanks, starting cooker production, organising bio-mass production, setting up the recycling centres : 18 months
- Phase 4 : installing water purification units and PV lighting systems for study purposes. Continued production of cookers and of bio-mass to fuel them. Rain-water harvesting.

From the third year onwards local development will be continued and extended to phase 5.

- Phase 5 : Extension to Solar Home Systems, water harvesting, and soil conservation and reforestation projects.


2.1 IMMEDIATE GOALS

The immediate goals of the project are:

a) To extend existing hygiene education activities by establishing Community Health Clubs in the Waso area and promoting formal hygiene education courses in schools.

b) To install technically appropriate sanitation for the people in the Waso area.

c) To provide a permanent safe drinking water supply in the project area in all foreseeable circumstances.

d) To make safe drinking water available within a radius of 150-200m from users' homes.

e) To contribute to the fight against water-related diseases through hygiene education, the supply of appropriate sanitation and clean drinking water systems.

f) To reduce the work load on women

g) To provide for the continuity of health, sanitation and drinking water systems by establishing appropriate institutional structures.

h) To harvest rainwater for use in small scale cultivation during the dry seasons.

i) To support improved educational facilities and enable students and others who wish to study in the evening to do so.

j) To reduce the use of wood and promote reforestation and sustainable use of the Samburu National Park.

k) To introduce efficient bio-mass fuelled means of cooking and solar cookers for daytime applications.

l) To create added value through recycling of non-organic waste.

m) To keep available financial resources (LETS money and formal money) revolving within the beneficiary communities.

n) To stimulate on-going local industrial and agricultural development through the use of local currency (LETS) and micro-credit systems.

o) To create large-scale job opportunities

2.2 LONG TERM GOALS

The long term goals of the project are:

a)To sustain on-going improvement of the general quality of life wellbeing and health of the local people.

b)To free more human resources for local production and development.

c)To reduce water-borne diseases so that medical staff and financial resources can be re-directed to other health objectives such as vaccination programmes and preventive medicine.

d)To decrease infant mortality and promote family planning.

e)To increase litreacy levels.

f)To eliminate dependency on fuels imported from outside the project area.

g)To help reduce deforestation and global warming.

h)To create value added from locally recycled non-organic solid waste.

i)To create a "maintenance culture" to conserve the investments made.

j)To increase the local pool of expertise so that local people can improve their sustainable well-being and development by identifying and solving problems, including erosion, with a minimum of outside help.

k)To create full employment in the project area.

l)To block migratory movement from rural areas to towns

2.3 GENERAL ECONOMIC BASES OF THE PROJECT

a)The project will be financed by interest-free seed capital in the form of a 'green' loan repayable over a period of 10 years.

b)75% of this capital will be contributed within the framework of the "country programme" of one or more of Kenya's development aid partners, and the remaining 25% by the Government of Kenya through its (Water and Sanitation department).

c)General financial supervision will be in line with section 2.14 of this project, on terms agreed with the lenders of the seed capital, but with the elimination of unnecessary bureaucratic restraints.

d)Seed capital repaid by users in monthly instalments will be retained in the local area until the end of the loan term. During that time, the repayments will be used to grant revolving interest-free micro-credits for local development.

e)Seed capital not required for short term use, will similarly be used to grant interest-free revolving micro-credits.

f)Local currency (LETS) systems set up within the framework of the project will form the general method of payment for most local goods and services produced at community level, including those provided for the project from within the local community.

g)The part of the maintenance money destined for long term replacement of capital items will also be recycled as interest-free micro-credits until it is needed.

h)Users will be 100% responsible for on-going administration, capital repayments, and maintenance costs. Each household will pay a monthly contribution of Euro0.65 per family member (Euro 3.90 per family of 6 per month) to cover all on-going maintenance and capital repayment costs. The instalments will be to a large extent covered by savings on funds traditionally spent on fuel, water and waste removal and by way of registration for Carbon Emission Reduction certificates under the Kyoto treaty.

i)The project encourages open competition and free enterprise within the framework of a cooperative and non-profit-making global financial structure.

j)Administration, construction and maintenance work will be done by local operators and villagers who will be paid mostly in local LETS currencies.

k)Local work will be paid for at current local pay rates expressed in the local LETS currencies.

l)The on-going administration costs of the Project Coordinator are specified in the project budget.

m)Users must make their first monthly contribution in advance, as project structures are put into use.

n)The tank commissions will be paid a small monthly allowance in formal currency, and receive an allowance in local LETS money for their work. The well commissions will be paid a monthly allowance under the local LETS currencies for their work.

o)Individual women or women's groups will, without payment, each look after their own sanitation units.

p)Regular inspection of installations will be paid as necessary in the local LETS currencies.

q)The operation of the local bank (The Waso Cooperative Development Bank) to be set up may be supported by a international Green Bank to be named.

r)The Samburu District County Council, the councillors from Waso, and the National Government (Department of Finance) have undertaken not to intervene to impede the development of the local LETS currencies either during or after the project period.

s)The Project Coordinator will reach a specific agreement with the ( applicable tax authorities) before the start of the project as to taxation of activities under the Local Exchange Trading (LETS) systems.

t)Before the project starts, a formal agreement will be made to ensure ownership of the project is vested in the beneficiary communities, subject to formal handing over when the final instalment of the interest-free seed loan is repaid.

u)The local people design, execute, install, run, maintain, own and pay for all project structures.

v)All products and services supplied by the local people for the project will be paid under the local money systems. Those supplying products or goods for the project before the local money systems are set up will be paid from the project funds in formal currency.

2.4 PRINCIPLES BEHIND THE PROJECT

2.4.1 The basic principles behind the project are:

a)The enhancement of self-sufficiency in local economies.

b)Existing social traditions will not suffer.

c)Local expertise, labour and materials will be used.

d)Women will play an active role in the project.

e)The people of the Waso area must be able and willing to take full responsibility for all goods and services provided under the project and for its administration.

f)The users must contribute financially to loan repayments, cover on-going costs and accept the powers of the elected tank- and well commissions.

g)The project will be self-funding. Savings on traditional fuel costs for cooking and services will cover most of the project costs.

h)The supply of traditional natural fertiliser for agricultural purposes will not be compromised.

i)Each individual user will be enabled to meet his financial commitments to the project.

Household difficulties in meeting monthly quotas can be cushioned either from the monthly allowances received by the tank commissions, or by creating a simple LETS system safety net. Members temporarily in difficulty could be allowed to run up a larger than usual debit balance. Members permanently in difficulty could perform services within the LETS group in exchange for group payment of their outstanding debts.

j)'Small is beautiful'. Small decentralized systems are to be preferred wherever possible. This promotes close contact of the people of the Waso Division with the installation and running of their own local infrastructure.

k) Local LETS currencies will complement the use of formal money. They will make up for the lack of formal money that would otherwise be needed to expand the quantity of local goods and services. Economic development within the LETS systems will also stimulate growth in the formal economy and increase its formal tax base.

l)The seed loan capital will be systematically recycled to users as interest-free micro-credits for productivity development. The micro-credits will allow goods and services that cannot be locally produced to be bought with formal currency outside the project area.

m)Leakage of formal currency out of the project area will be reduced. Seed capital will be retained in the local area during the 10 year interest-free loan period.

2.5 FIVE BASIC CONDITIONS

This project has been worked out with the users, who execute, run, maintain, pay for and own all the structures. Five basic conditions have been accepted by the users. Without them, this integrated self-financing development project could not be executed.

They are:

2.1 Acceptation of Health Clubs. These do not only serve the purposes of offering basic hygiene education courses. They also serve as a platform for women, so that they can organise themselves and participate and play an important role in the various structures foreseen. The health clubs therefore constitute a means of addressing the so-called "gender problem".

2.2 Willingness to pay at least the equivalent in Kenyan Shillings of Euro0.65 per month per extended family of 6 (the equivalent in Kenyan shillings of Euro 3.90 per family of 6 per month) into a Cooperative Development Fund. This payment covers the entire package of basic services foreseen including hygiene education, drinking water supply, sanitation, waste removal, high efficiency stoves and fuel for them, and lighting for study purposes.

2.3 Acceptance of the use of local exchange trading (LETS) systems, which enable goods and services originating in the project area to be exchanged without the need for formal money.

2.4 Acceptance of the GYPSUM COMPOSITES process which enables most of the items required for local development to be made locally with 100% local value added within the framework of the local LETS systems in local low cost labour intensive production units.

2.5 Acceptance of dry composting toilet systems with the separation of urine and faeces. Aspects relating to the form, the colour, the finish, privacy and similar will all be discussed with and decided by the users. The dry toilet systems foreseen enable waste to be recycled at household level so that problems connected with the pollution of surface and ground water can be addressed at local level without the need for major investments.

2.6 INSTITUTIONAL STRUCTURES

FOR A DRAWING SHOWING THE PROJECT STRUCTURES SELECT:

DRAWING OF STRUCTURES
The NGO PARAN INTEGRATED PROGRAMME., KENYA
AUDITING STRUCTURES
CASH FLOW DIAGRAM
HOW THE ORIGINAL SEED LOAN MONEY IS USED
TANK COMMISSIONS - THE KEY STRUCTURES
WELL COMMISSIONS

The responsibilities of the various parties which would presumably be involved in the project are:

2.6.01 THE LOCAL NGO PARAN INTEGRATED PROGRAMME, ISIOLO, KENYA

THE LOCAL NGO PARAN INTEGRATED PROGRAMME

The NGO officially fronts for the project. Its constitution and statutes are attached to this project as Schedule 11. The members of the board of the NGO Paran are fully representative of the people in the Project area and enjoy the full confidence and support of the people. Their functions are honorary.

Financing parties may nominate their representatives (eventually paid by the financing parties themselves) to the board of the NGO, with the task of acting as auditors and for the purpose of monitoring progress.

The NGO approves the project and presents it for financing within the framework of a country programme supported by a donor government.

The NGO nominates the project coordinator and puts the project funds at the free and unconditional disposal of the Project Coordinator in a bank account in the name of the Project.

The NGO does not interfere in the execution of the project, except to carry out its auditing and monitoring duties. It is the counterpart of the project coordinator.

2.6.02 THE PROJECT COORDINATOR (Peter Gatuna)

Peter Gatuna is responsible, together with Terry Manning, for the project preparation, for contacts with local authorities and banks and with the users, for the actual implementation of the project. Gatuna is also responsible for all professional work or operations that cannot, at the time of the project, be provided from within the local communities. He is also in charge of the maintenance of the project, for collecting the monthly contributions of the users (through the tank commissions) and for general supervision of payments out of the project accounts. Mr Gatuna will also coordinate the establishment of the local Gypsum composites  production units and the network of recycling centres. Mr Gatuna's fees are in the public domain and formalised in the Project budget.
Curriculum Mr Gatuna

2.6.03 TERRY MANNING

Terry Manning is responsible for formulating the project, initial coordination with the NGO Zimbabwe A.H.E.A.D., initial contacts for setting up the Organizational Workshops, for the organisation (through the Workshops) of the local money LETS systems, setting up a Micro Credit system, coordinating with EOS Consult in setting up local Gypsum composites production units, delivering pumps, PV-panels and related materials needed to implement the project. He will act as consultant to the Project Coordinator (through the Workshops) for the training and supervision of water supply, water quality and hygiene control and maintenance personnel identified during the Workshops.

2.6.04 ORGANISATIONAL WORKSHOPS

BIBLIOGRAPHY
ORGANIZATION WORKSHOPS

All activities will be executed by the local people themselves. Organizational workshops (mass capacitation workshops or OW's) following the method of the Brazilian Clodomir Santos de Morais will be held for the various sectors of activity involved. During the workshops the users will organise themselves respecting the principles of the division of labour.

See Schedule 2 for information on Organizational Workshops.

Amongst the activities for which Organizational Workshops would be held are:

Setting up Health Clubs
Setting up Tanks and Well commissions
Setting up the local money (LETS) systems
Setting up Gypsum composites production units
Setting up structures for the water supply systems
Setting up structures for the sanitation systems
Setting up structures for the growing of bio-mass to fuel high efficiency stoves
Setting up the local bank and/or the Cooperative Development Fund
Setting up the waste recycling system
Setting up structures for rainwater harvesting
Setting up the local radio station
Setting up export-import cooperatives
Setting up a net-work of local agrarian consultants

The costs of the Workshops are set out separately in the balance sheet.

The Organizational workshops will typically directly involve about 5.000 users representing some 15% of the adult population.

2.6.05 COUNTRY PRORAMME ADMINISTRATOR(S)

The administrators of the country programme(s) who agree to supply external funds will, on acceptance, make available its 75% share of the interest-free loan necessary for the project and nominate structures and channels for supervising the project expenditure and liaising with other parties.

2.6.06 THE KENYAN FUNDING AUTHORITY (to be defined)

The Kenyan funding Authority will be an enabling body only. It will guarantee the continuity of the local currency (LETS) systems. Before the project begins, it will guarantee transfer of ownership of the project to the local communities when the seed loan is repaid. It will ensure, by agreement with the Central Government, that goods imported for the project come into Kenya Duty Free. It will authorise without creating unjustified obstacles the siting of boreholes, wells, feed-pipes, tanks and others structures necessary to the execution of the project.

It may take full political credit for the project, but will agree not to otherwise intervene in its organisation, implementation or day to day running.

2.6.07 LOCALLY ELECTED MP (Mr Sammy Leshore)

The local MP, Mr Sammy Leshore,  has agreed to do everything in his power to guarantee respect by the national, regional and local administrative authorities the continuity of the local currency (LETS) systems, the importation of goods destined for the project without the application of customs duties taxes or other formal levies, and the transfer of the project structures to the users.

He will act as liaison points between the Project Coordinator on the one hand and the Kenyan funding authority and the local political institutions on the other. He may take full political credit for the project, but will agree not to otherwise intervene in its organisation, implementation or day to day running.

2.6.08 THE SAMBURU COUNTY COUNCIL

The Samburu County council will formally approve the project. It will act as an enabling body. It may take full political credit for the project implementation, but will not otherwise intervene in the organisation, implementation or day to day running of the project. It will guarantee and respect decisions of the vested authorities in relation to ownership of the project goods and services, and fully support the local currency (LETS) systems and the duty-free entry into the project area of goods to be used in the project.

The council will approve reasonable project proposals for laying and embedding water pipelines to dedicated water tanks, drilling bore holes, digging wells, locating and building sanitation facilities, siting of Gypsum composites  manufacturing units, siting of, and collection of rubbish by, recycling centres.

2.6.09 THE MINISTRY OF HEALTH and (THE WATER AND SANITATION COMMITTEES)

The Ministry of Health is directly responsible for health services in the project area. It will respect the administrative decisions taken by the Samburu county council relating to the Project and will approve of the use of its own Health Workers within the framework of the Community Health Clubs' hygiene education programme to be set up by Zimbabwe A.H.E.A.D. Full advantage will be taken from existing initiatives.

The health authorities and the water and sanitation committees operating under the District Water and Sanitation Programmes (WASP)will approve that their workers be paid in the local LETS currencies for any work not already covered under their existing salaries.

They will approve that ownership of drinking water facilities, sanitation services where supplied, PV lighting, PV refrigeration, and water testing equipment placed in clinics within the project area be vested in the tank commissions in whose areas the clinics are situated.

They will support formal hygiene education courses in schools in the project area.

They will reach an agreement with the project coordinator to ensure training of (women) users at on-going checks of water quality, and systematic inspections of the sanitation facilities built within the framework of the project. Testing and inspection work not already included within the Health Workers' salaries will be paid for in the local LETS currencies. The equipment for conducting such systematic water quality tests will be made available under the project to a local clinic or hospital and financed by testing work carried out by the clinic for third parties outside of the project area.

PV lighting, sanitation where needed and refrigeration for medicines for the clinics in the project area which are not on the grid will be paid for by the communities as they do for drinking water facilities dedicated to the clinics and schools in the project area. Ownership would in this case be vested in the tank commission in whose territory the clinic is located. PV lighting and refrigeration installations in clinics outside the project area serving users inside the project area need to be separately discussed. The disposal, where required, of specialised waste from clinics will be addressed separately.

The health authorities will help train people to make regular hygiene inspections of the local recycling centres.

2.6.10 THE MINISTRY OF EDUCATION

The education authorities will approve that ownership of drinking water and sanitation facilities and PV lighting placed in schools within the project area be vested in the tank commissions where the schools are located. They will also approve that the teachers' commissions nominated to operate water and sanitation services and PV lighting report to the local tank commissions.

They will support hygiene education courses in the schools in the project area and approve the reasonable course curriculum presented by the Project Coordinator and apply it during normal school hours.

2.6.11 THE LOCAL TAX AUTHORITIES

The Project Coordinator will reach a binding agreement with the tax authorities, before the Project gets under way, to ensure that the tax authorities are not deprived of current tax revenue.

The project is based on a tax moratorium of at least 20 years on all LETS activities.

The tax authorities will define LETS activities carried out in LETS currencies under the project as non-commercial, and therefore non-taxable.

2.6.12 THE WASO COOPERATIVE LOCAL DEVELOPMENT BANK

After its institution, the Waso Cooperative local development bank will administer project funds actually deposited in the Waso County in Kenya. On the instruction of the Project Coordinator, it will formally administer Grameen Bank style interest-free micro-credit loans and repayments and the project funds, in cooperation with the External Green Bank. It will NOT intervene in the decisions relating to the granting of the loans themselves which will be made by the project coordinator in consultation with the communities. All shares in the bank will be held on trust for the people of the project area.

The bank will autonomously finance and administer micro-loans for the installation of solar home systems for individual non-productive household use.

2.6.13 THE EXTERNAL BANK (TO BE DEFINED)

The external funding authority will pass its financial contribution through an appropriate financial institution, where possible a Green Bank willing to act as adviser to the Waso Local Cooperative Development bank. The external Bank will, on the instruction of the project coordinator, administer the project monies deposited in Kenya, under the supervision of the External Funding Authority and will support the Waso Local Cooperative Development Bank in setting up the Micro-credit system for local development.

2.6.14 THE LOCAL GYPSUM COMPOSITES PRODUCTION UNITS

These units will make, with a sanitary finish where necessary, ecological items such as water tanks, water containers, well-linings, san-plats in low cost labour intensive production units with up to 100% local value added. They will also make the high efficiency stoves and solar cookers. The Project will finance them on an interest-free basis with a pay-back period of 3-5 years. They will operate autonomously and negotiate payment of any royalties directly with the Technology Owner. They will usually sell their products within the project areas in the local LETS currencies, and outside the Project areas in formal currency. Precedence will be given to making items of top priority to the Project. Ownership of the production units will pass to the factory owners when the loans have been repaid. Until then the factory owners will be responsible to the Project Coordinator.

2.6.15 TANK COMMISSIONS

TANK COMMISSIONS - THE KEY STRUCTURES.

Every water tank supplies an area or group of households with water. A tank commission, elected by the users, will supervise the use of the tank and its associated works, the collection of the monthly contributions and the carrying out of minor operations such as keeping tank areas clean. Each tank commission will be paid a small monthly fee in formal currency, equivalent to perhaps Euro 5 per month, which it is free to spend as it wishes. Since women enjoy the greatest benefits from the execution and on-going management of the project, they should provide most of the tank commission members.

Ownership of a given tank and its associated works, of the dedicated solar pump, PV array and array support, and of the dedicated pipeline from the pump to the tank is vested in its respective tank commission. Passage of ownership of existing structures to the tanks commissions to be decided by the people themselves.

The tank commissions will nominate one of their members to liaise with the system maintenance structures set up.

The tank commissions would also be responsible for study rooms and PV lighting and for coordination of recycling in their area.

The tanks commissions will be set up using the Moraisian organisational workshop method. Their form may vary from one area of the project to another.

They will nominate a litreate person to liaise with the local LETS system coordinator.

The drinking water installations and sanitation services dedicated to schools and clinics will be supervised by commissions of respectively teachers and medical staff who will report to the tank commissions where the schools and clinics are located. Ownership of these installations will be vested in the local tank commissions with the consent of the local Education and Health authorities. The costs of loan repayment and maintenance of these installations are built into the users' monthly payments.

PV lighting, PV refrigeration, and water testing equipment supplied to clinics in the project area will likewise be run by the medical commission supervising the water supply. Ownership of these structures will be vested, with the consent of the Health Authorities, in the tank commissions where the clinics located. The medical commission will report to the local tank commission.

The problem of specialist waste removal from clinics, where needed, will need to be studied separately.

The tank commissions will also convene regular meetings to discuss activities under their local LETS system and priorities for micro-credits.

The tank commissions will elect the well commissions.

The tank commissions will nominate a female candidate from their own area to carry out cooperative inspection of the sanitation, rainwater harvesting, and cooking facilities installed, and arrange for her training.

The tank commissions will set up local cooperative groups for the purchase of PV solar home systems.

2.6.16 WELL COMMISSIONS

WELL COMMISSIONS

Every well/bore hole area comprises:
- The well or bore hole itself
- The backup hand pump installation
- The washing area
- The enclosure for PV systems and supports
- A guard system for the PV installations

Passage of ownership of existing structures to the well commissions to be decided by the people themselves.

The well commission, elected by the tank commissions, supervises the use of the structures common to the water supply system, and carries out minor maintenance operations such as cleaning washing areas, well areas, and backup hand pump systems. The well commission also regulates use of the well area in case of crisis or calamity. It collectively receives a small monthly payment in the local LETS currency (e.g. the equivalent of Euro 5 per month) which it is free to spend as it wishes. Members can be awarded a salary paid out under the local money LETS system. Since women enjoy the greatest benefits from the execution and on-going management of the project, they should provide most of the well commission members.

The well commission will nominate one of its members to liaise with the system maintenance structures set up and with those responsible at tank commission level for maintenance.

The well commissions will nominate a female candidate from their own area to monitor the cooperative inspection of the sanitation, rainwater harvesting, and cooking facilities carried out at tank commission level, and arrange for her training.

2.6.17 ZIMBABWE A.H.E.A.D.

This NGO from Zimbabwe is the author of the original material for the Health Clubs.

BASIC COURSE FOR HEALTH CLUBS

The Community Health Clubs will be set up, and local health workers trained to lead the hygiene education courses during a Moraisian organizational workshop.

A hygiene education course for use in the schools in the project area will be developed the same way, and health workers and teachers trained to apply it.

2.6.18 EOS CONSULT

This Dutch company is the registered owner of the Gypsum composites process.

It will act as consultant during the Organization Workshop during which the local Gypsum composites  production units in the project area will be set up, and independently negotiate any conditions for technology transfer.

2.6.19 MEDICAL COMMISSIONS

Medical commissions will supervise installations supplied to clinics under the project. They will report to the tank commission where the clinic is situated. They will where required arrange with the Project Coordinator collection of special medical waste products.

2.6.20 TEACHERS COMMISSIONS

Teachers commissions will supervise installations supplied to schools under the project.

They will support and apply the approved hygiene education courses in the schools.

They will report to the tank commissions where the school is located.

2.6.21 THE INDEPENDENT AUDITOR

Financing parties may nominate an independent auditor to co-sign payment authorisations made by the project. The independent auditor answers to the project NGO. See par. 6.14 for more information.

2.7 THE QUESTION OF OWNERSHIP

As project structures are completed, ownership in them will formally pass to the people of the Waso Division, through the Tank Commissions. Until all debts have been repaid, the project coordinator retains the right to recover any installation supplied under the project should the people not meet their financial obligations for them. The interest free loans will be repaid over a period of 10 years. Until repayment has been completed, the project coordinator will retain formal responsibility towards the funding authorities for maintenance and administration.

Before the project starts, the project coordinator will offer to provide on-going maintenance, training of maintenance operators, and administration for an agreed fee for at least ten years. Pumps and structures have a life-span of more than 20 years. Once the seed capital has been fully repaid at the end of ten years, on-going monthly contributions will create a large surplus for future renewals and extensions of the project facilities. Until it is needed, this money can be re-invested interest free in micro-credit loans for local development.

Ownership of drinking water installations, PV lighting and refrigeration and water testing equipment installations in schools and clinics will be vested in the tank commissions where the schools and clinics are located.

Ownership of PV lighting sanitation services and refrigeration installations in clinics outside the project area serving users inside the project area needs to be separately discussed.

2.8 ASSURANCES AS TO PERFORMANCE

The project involves complex on-going interaction amongst several parties. For the project to be finished on time, each party must agree to meet his obligations within the prescribed time. A penalty system may be used in case of late delivery of goods and services. If any party feels unable to meet the proposed time line he must say so when the project details are finalised at the start of phase two. The time line can then be adjusted to suit his needs before work begins.

Financial and political participants should each issue a written warranty that money, permits, and guarantees they have agreed to provide will be forthcoming on schedule.

As the project is cooperative in nature, the participating parties, and in particular those financing the project, are free to impose appropriate reporting and verification procedures which should be simple and direct to eliminate "red tape".

2.9 TAXATION UNDER THE LOCAL EXCHANGE TRADING (LETS) SYSTEMS

For a drawing of the proposed LETS structures refer to:

DRAWING OF PROPOSED LETS STRUCTURES
HOW A LETS TRANSACTION WORKS.



This project is designed to create rapid, sustainable and durable local development.

The project coordinator will reach a binding agreement with the (tax authorities --- name them!!), before the project gets under way, to ensure that the tax authorities are not deprived of current tax revenue.

The tax authorities will define LETS activities carried out in LETS currencies under the project as non-commercial, and therefore non-taxable.

The project is based on a tax moratorium of at least 20 years on all LETS activities.

After the moratorium, the following basic rules will apply:
-1. LETS exchanges where a user helps a friend, or performs a job on a "one-off" basis are not taxable.
-2. LETS exchanges involving activities not part of the normal business activities of the supplier are excluded.
-3. The expression "normal business activities" will be interpreted in the manner most favourable to the users.
-4. Normal LETS exchanges by businesses are taxable.
-5. All costs and business expenses are tax deductible.
-6. Businesses will be taxed in respect of LETS exchanges on the net profits they generate from them.

2.10 THE EFFECTS OF INFLATION ON SEED LOAN REPAYMENTS AND GIFT CONTENT



This project sets up a user friendly interest-free financial environment based on the constructive recycling of a ten year interest-free loan and the creation of local exchange trading systems.

Users repay the interest-free loan after ten years. At that point of time they will have been repaying the loan at the rate of the equivalent in Kenyan shillings of approximately Euro 0.75 per family member (or the equivalent in Kenyan shillings of Euro 4.50 per family of 6 per month) for 120 months. Their repayments are, however, made in the local (formal) currency. Should the local (formal) currency through inflation or exchange measures have devalued against the Euro, the amount in local currency collected by the users will not be sufficient to pay the original loan back . This situation is beyond the control of the parties to the project, and in particular of the users.

A decision on how this risk is to be covered will therefore need to be made when the project is being financed.

Is the interest-free seed loan to be expressed in the local (formal) currency or in Euro?

LOAN EXPRESSED IN LOCAL CURRENCY

If the loan is expressed in the local (formal) currency, then the external bank (working together with the local bank) will need to obtain the acceptance of the lenders that the amount repaid, when reconverted into Euro, may be lower than the original Euro loan.

The following are four possibilities:

1) The lenders or their governments formally accept they are willing to run this risk and write off the eventual difference as a gift.

2) The lenders agree to extend repayment time until the total amount collected in the fund is sufficient to repay the whole loan expressed in Euro. This can lead to a "win-win" situation in that the amount available for recycled micro-loans would remain at a high level. In return for the extra monthly payments, users have more money to recycle in micro-loans than would otherwise have been the case.

3) The lenders require payment of the available funds on expiry, and that the difference be collected using the next following monthly payments, until such time as the original amount expressed in Euro is balanced. This solution is negative for users in that for a shorter or a longer period (depending on the inflation which has taken place) users will not be able to benefit from re-cycled micro-loans and on-going local development will slow down and could, in some cases, even stop.

4) The lenders require repayment of the available funds on expiry but reinvest any difference for a further cycle of ten years. This will reduce users' funds for renewing capital goods or extending services at the end of the second period of ten years, but will not negatively affect recycling of micro-loans for on-going local development under the project.

LOAN EXPRESSED IN EURO

If the loan is to be expressed in Euro, will users' monthly repayments be indexed to the Euro? If so, how will the monthly rate expressing the amount payable in Euro be determined, and by whom? How will the users be advised?

If repayments are to be indexed to the Euro, the total amount collected by users over the ten year period may, when converted into Euro, still be (considerably) less than the total original amount in Euro. This is because the indexing of the local payments to the Euro is progressive over ten years while the exchange rate applicable on repayment of the loan after the ten years' loan period is the one applicable at the moment of the repayment. The difference would normally be less than where the loan is expressed in the local currency, but one of the four options mentioned above would have to be applied to it.

2.11 INSURANCE AND FORFEIT IN THE FORM OF GIFT IN CASE OF LOSS OR DAMAGE TO CAPITAL STRUCTURES

Long term political stability in Kenya is essential to the success of the project, especially during the period of the ten year interest-free seed loan. Without it ongoing integrated development cannot be guaranteed.

While capital structures installed within the framework of the project may, if rarely, be insurable against loss or damage by Act of God such as lightning, hurricanes, or earthquakes, it is not possible to insure them against loss or damage deriving from causes such as Act of Political and Military Authorities, civil war, commotion, rebellion, and strikes. Even if insurance against such risks were to be available the cost would be so high that it would constitute a major on-going financial leakage from the project area, which is just one of the major problems applications under the Model are designed to stop.

What happens in case of loss of or damage to the capital structures installed under the project Model before repayment after ten years of the interest-free seed loan must therefore be clearly addressed at the time the project application is being financed.

The beneficiaries of the project are by definition poor and the loss or damage in question derives from causes entirely beyond their control. To require these poor people to repay a loan after ten years for capital structures they have lost for reasons beyond their control is in profound contradiction with the short term and long term goals of the project. In some cases the lending organisations may have forms of insurance available to cover funds at risk in projects in developing countries. In such cases they would ensure, at their own cost and by way of gift, that funds for the project are insured by such Funds. Where, however, such insurance is not available, the lending organisations should accept that in the case of loss of or damage to project structures deriving from causes beyond the power and control of the users the interest free loan be converted into a gift so that users are freed from their contractual obligations.

Normally, at the time the (uninsured) loss of or damage to the capital structures occurs, users will have paid a part of the loan into the Cooperative Development Fund.

The project must clearly whether the money which has already been collected in the Cooperative Development Funds at the time the loss of or damage to the capital structures occurs:
a) Must be used immediately to reinstate the capital goods lost or damaged
b) Has to be repaid to the lenders at the end of the original ten years' interest free loan period.
c) Has to be repaid immediately
d) Will, subject to analysis of the current political situation, be integrated by a further loan to enable complete reinstatement of the capital structures so that the project application can make a re-start.

2.12 INFORMATION FLOW

The three main lines of information flow foreseen under the project are:

a) Transfer of information within project applications

- Vertical, from project coordinator (who would also liaise with external sources involved, such as education authorities, schools, health authorities, clinics) to well commission level to tank commission level to individual user and return back up the line
- Horizontal, for instance within the LETS groups and between LETS groups, between tank commissions, and between well commissions
- Combination of both - through a project level radio station
- Project website mainly as a source for b) and for information sharing in general for (c) below

b) Local consultants, activity groups, and schools

-Through local consultants with small businesses set up under interest-free micro-loans under the project, who help local people choose crops to grow, instruct on agricultural methods, give professional advice on productivity questions etc
-Local translation bureaus set up under interest-free micro loans under the projects to put material into a form the local people can understand
-Activity groups working under the LETS systems with any of the parties in a), such as the Health Clubs foreseen, groups of actors etc
-Local schools, information and courses for children and, eventually, adults

c) Transfer of information from and to external sources

- Incoming through information shops set up as private businesses (as in b) " local consultants") under the project. These would have telephones, faxes, computers.
- Outgoing, through cultural and economic websites ( recent experiments in India), where individual interest groups make their cultural activities and their wares known to the outside world, either independently or through the information shops.

Communication and monitoring

Within each of the above specific sectors, rather complex interdisciplinary relationships can arise. Just to cite one typical example, to make the integrated sanitation system foreseen work, users need to be advised on the benefits of better hygiene (Health Clubs) then practise what they have learned and install their new toilet (and, eventually, water harvesting) systems. A system of cooperative inspection then needs to be put in place. A home inspection report has to be developed. Local women nominated by the tank committees have to be trained to apply the report system and to advise and help users where they are doing something wrong. Women nominated by the well commissions have to be trained to monitor the work of the local inspectors. A woman nominated by the (unified) well commissions will have to check the work of the well commission monitors. Information and experiences would need to be exchanged both vertically and horizontally under a).

The same users will at the same time need separate instruction on how best to recycle their urine, and later, their composted faeces. Basic recommendations will be developed under the projects for this, although single users, the local tank commissions, or the project coordinator could also obtain consultancy under b). Where the project supplies recommendations, cooperative structures similar to those described for hygiene would need to be developed to make sure they are applied properly.

2.13 RECYCLING OF FUNDS AND IMPORTATION OF CAPITAL GOODS



Purchases in formal money of capital goods for production purposes will normally need to be imported into Kenya.

The first series of such purchases is usually made with the original loan funds. Since the original loan funds are made available in Euro or other leading international currency, and converted into the local currency for the purposes of the project, their re-conversion where necessary from the local currency into the international currency should not pose a problem.

The amount of capital goods needed for local productivity increase under recycled micro-loans could, however, amount to several times (5 or 6 times or more) the amount of the original interest-free loan expressed in foreign currency.

A condition for the granting of an interest-free loan under the project is, normally, that the beneficiary be able initially to sell some of the goods or services in question outside the project area for formal money to enable him to repay the loan. The beneficiary therefore exports the goods or services outside the project area for formal local currency, but not necessarily outside the national borders. Since capital goods may often need to be imported into the country where the project area is situated, a situation of financial leakage of formal national currency occurs for the purpose of buying the foreign currency necessary for the purchase of new capital goods for production purposes. This financial leakage is not desirable but it may in part be offset by the increase of local production tending towards a reduction in the need for imported goods. The leakage can only be completely avoided where the project area succeeds with time to export directly outside national boundaries enough of its production to earn enough foreign currency to cover the costs of the imported goods. It is unlikely this be possible at least in the early phases of a project application. The local government must therefore when it approves a project application under the Model accept that this (temporary) financial leakage is going to take place during the initial stages of the project. Its Finance Ministry must ensure flexibility in granting leave to convert local formal money into the foreign currency necessary for the purchase of the capital goods. Failure of the Ministry to do so would in practice lead to serious delays in project execution. The more often the project funds are recycled the more rapidly the project area will develop. The Project Coordinator, on the other hand, is bound to endeavour to reduce the financial leakage of formal currency in question by purchasing capital equipment, where available, which has already been imported and is available on the local market.

The following schedule will produce a zero national import/export balance for the project during its execution and a long-term ongoing credit balance:
First two (executive) years : zero franchise
Third year, at least 35% of imported value exported
Fourth year, at least 50% of imported value exported
Fifth year, at least 75% of imported value exported
Sixth year, at least 100% of imported value exported
Seventh and following years, at least 110% of imported value exported

2.14 AUDITING STRUCTURES

AUDITING STRUCTURES.

The project is based on separation of powers between the controlling party (the NGO Paran) and the project coordinator nominated by the NGO to execute the project.

Financing parties have, if they wish, two structures enabling them to carry out on-going audits of the project works.

1. The project NGO fronts for the project and maintains on-going auditing powers to ensure correct project execution. The statute of the project NGO allows the financing parties to nominate executive auditors to the Board of Directors. The nominated auditors may be paid salaries by the financing parties. For practical purposes they should be resident in or near the project area. The NGO does not intervene directly in the execution of the project, as this is the responsibility of its nominee project coordinator.

2. Financing parties may also nominate an independent auditor to act the with project coordinator to co-sign payment authorisations and conduct an on-going audit of project out-go. The independent auditor answers to the Board of the NGO, which includes executive audit nominees of the financing parties. His salary is paid by the financing parties. The independent auditor may not intervene in the running of the project itself. For practical purposes the independent auditor must be resident in the project area.

To avoid conflict of interest,neither the project coordinator nor the independent auditor may be a member of the NGO. They both report, independently of each other, to the NGO.

3.00 Planned works and results

3.01 Hygiene education structures

Voluntary Community Health Clubs are set up within the project area. The members of each Health Club, which can include men, follow a course normally lasting at least six months. During the course, hygiene-related topics are discussed under the leadership of a specially trained Health Worker.

The structures, rules and administrative aspects of the Health Clubs will be established during one or more Organisational Workshops, during which the Health workers will also receive due training.

For some indicative information on the courses, refer to Schedule 7.BASIC COURSE FOR HEALTH CLUBS. This material is subject to adaptation according to the preferences expressed by the Workshop participants.

The Health Clubs will continue to meet regularly after the course has finished. Their role is fundamental to the project. They serve as a forum for identifying community needs, assisting with project planning and implementation, and developing the sense of unity and cooperation on which the success of the project depends.

A system will be set up to provide on-going inspection of the individual sanitation and water supply systems by local Health workers.

Water quality will be systematically monitored by a local clinic or hospital using testing equipment supplied under the project.

Hygiene education courses will be established in the schools in the project area. They will be supported and approved by the local Health and Education authorities. They will be applied during normal schools hours under the supervision of the teachers' commissions.

3.02 Sanitation facilities.

For a diagram of the proposed waste disposal system see:



DRAWING SHOWING PROPOSED WASTE DISPOSAL STRUCTURES.
DRAWING OF COMPOSTING TOILET TANK MADE FROM GYPSUM COMPOSITES

These are based on the separation of urine, faeces, and grey water.

In urban areas, urine, grey water and fertiliser can be used in vertical gardens made from Gypsum composites blocks under the LETS systems.

The number of users for each toilet unit will be decided during phase 2 of the project based on users' preferences and customs in accordance with the decisions reached during the organisation workshops to be held. Units could be for an individual or a group of related families.

A typical unit will comprise a small toilet building containing three Gypsum composites tanks. One tank will be used for urine. The other two tanks will be used as aerobic composting toilets. Building support structures, san-plats for urinals and toilet seats will also be supplied by the local Gypsum composites production units. The toilet structures will be built by local builders or cooperative groups and paid for using the LETS local currencies. Use of improved evaporation systems could eliminate one of the composting toilets. For health reasons we prefer the twin tank method.

Almost the whole sanitation project can be done under local exchange trading (LETS) systems, with nearly 100% local value added.

The toilets will be supplied with appropriate washing and cleaning means for personal hygiene.

A small quantity of locally available lime, ash, sawdust or similar would be added to the urine tank once or twice a day and to the faeces after use. The contents of the urine tank can be emptied at any time. A mixture containing one part urine and ten parts of water can be safely used for watering plants. This high quality product has been known to more than double the productivity of a household garde. An average family with 6 members can produce about 30m3 of this fertiliser per year.

Users not wishing to dispose of the urine themselves will hire local operators to do it for them under the local LETS currency systems. The development using LETS currencies of a collection system may be needed in poor urban areas where users have no gardens or are unable to dispose of their urine.

With the double composting dry toilet system, one properly aerated toilet tank is used until it is more or less full. It is then sealed and allowed to compost for at least 9-12 months while the second toilet tank is being used. The contents need to be moved from time to time. During that time, the compost in the sealed tank reduces to about one wheelbarrow full of soil per adult person per year. After 9-12 months composting, the soil can be safely and profitably used as soil conditioner.

Users not able to dispose of the soil conditioner will hire local operators to do so under the local LETS currency systems.

Organic material other than urine and faeces will be composted in simple compost boxes built and supplied under the local LETS currency systems. Alternatively it can used for animals and/or collected under the local LETS currency waste recycling structures.

In rural project areas, grey household water from the kitchen and from household cleaning can be collected in an appropriate closed container and spread on the family vegetable plot once a day, avoiding the formation of open or stagnant pools and concentrations of water. It can also be used to dilute urine. Users not able to dispose of their grey water will hire local operators to do so under the local LETS currency systems.

In urban areas, grey water may need to be regularly collected, possibly together with urine, and taken to the countryside nearby where it can be recycled. This work would be done under the local LETS currency systems.

Non-organic solid waste products will be recycled in recycling centres operating under the local currency (LETS) systems, creating more local added value. In larger communities the centres may be specialised to some extent. Collection charges will depend on the kind of material being recycled. Environmentally harmful materials will be charged for at a higher rate than other materials. Special waste from clinics will be addressed separately.

Appropriate sanitation services where needed for schools and clinics in the project area will be included in the project.

Useful references for further information on dry sanitation are:
a)Winblad Uno et al, "Ecological Sanitation", SIDA (Swedish International Development Cooperation Agency), Stockholm 1998. ISBN 91 586 76 12 0
b)Del Porto David & Steinfeld Carol, "The composting toilet system book", CEPP (Centre for Ecological Pollution Prevention), Concord Massachusetts 1999. ISBN 0-9666783-0-3
c)Sawyer Ron (editor), "Closing the Loop - Ecological sanitation for food security", UNDP-SIDA, Mexico 2000 ISBN 91-586-8935-4

3.03 Local Gypsum composites production facilities

The project requires the supply of many water tanks, water containers, well-linings, san-plats, toilet seats, and support structures. Many of these are traditionally made from concrete, using materials that have to be paid for in formal currency and are usually not available locally. Concrete and cement are environmentally unfriendly and are difficult to dispose of after use. Concrete water tanks can cost up to Euro 4000 per tank. Concrete products are also subject to production faults and cannot always be repaired when damage damaged. They are heavy and difficult to transport.

A practical alternative to concrete, is to use a new-age product like Gypsum composites. Gypsum composites production units can be established wherever there are local deposits of cheap gypsum (CaSO4 + water) or anhydrite (CaSO4 + 1/2 water) which are very common, occurring naturally in most parts of the world. They can be used to make cheap, ecological, hygienic tanks, well-linings, toilets and other products. Gypsum composites is a state-of-the-art technology originating in the Netherlands. It can easily be transferred to Kenya. The Gypsum composites  production units can make a major contribution to the regional economy after the project has been completed as well as manufacturing the products needed for the project itself.

Gypsum composites production units are permanent industrial assets. They will be used to make various load-bearing structures and other building materials. Gypsum composites  can even be used to weather-proof the mud walls of locally built houses and as a substitute for construction timber, reducing de-forestation.

Gypsum composites will also be used to make high efficiency stoves. The stoves can stand temperatures of up to 500 degrees C. They will recycle heat from smoke circulated around the pot. The stoves can be safely carried by hand with boiling water in the pot and fire in the stove. Although they will work with any sort of fuel, mini-briquettes made from bio-mass will be produced locally under the project.

Gypsum composites will also be used to make solar cookers under the LETS systems in applications where daytime cooking is not in contrast with local customs.

The modest cost of Gypsum composites production units will be funded within the project by interest-free green loans repayable over a period of 4 years. The initial casting moulds for gypsum composites products can cost several thousand Euro. These costs will restrict the initial range of products any single production unit can make. The top priority will be to service the needs of the project itself. Additional copies of the initial moulds are, however, very cheap to make.

The entire system for the production of items in Gypsum composites from cheap gypsum or anhydrite, the management of the deposits of raw materials, the construction of the factories, the production and installation on the items manufactured will be organised during a series of Moraisian workshops for which a separate allowance has been made in the budget.

While the workshops will work out the details, it is foreseeable that the Gypsum composites production be highly labour intensive calling for minimum capital outlay. The products can be made manually without the need for any machinery, with a western-level finish.

Refer to Schedule 6 for more information on the Gypsum composites:

NOTES ON GYPSUM COMPOSITES
PREPARATION OF GYPSUM COMPOSITES PRODUCTS.

3.04 Water supply structures.

For a diagram of the water supply structures refer to:

DRAWING OF WATER SUPPLY STRUCTURES

Organised drinking water supply systems in the Waso Division project area are limited to (part of) the larger towns. This project will be decentralised. Large diameter boreholes will be drilled using local labour, construction methods and materials supplied under the local LETS systems.

About 6-9 solar submersible horizontal axis piston pumps will be installed in each borehole. Each of the pumps will supply water to a dedicated water tank serving a local community. The well is the hub of the supply system. The water pipelines radiating from it are its spokes.

Schools will each receive one dedicated tank. Clinics, for further safety, will be served by two tanks each with its own pump.

Each borehole will be equipped with back-up hand-pumps (see Schedule 5 for a complete description of the hand-pumps). The hand-pumps will provide minimum water facilities during unusually long periods of bad weather.

Where culturally appropriate, there will be a communal washing area near each well so that women used to doing their washing in groups can continue to do so. The backup hand-pumps may also be used to service the washing areas and in cases of emergency.

The drinking water supply is based on a water consumption of 25 litres per person per day. Since solar energy is to be used to pump the water, bad weather must be taken into account. For that reason, the tanks need to have a capacity for three days' use. Each tank will supply about 200 people. The capacity required to give 25 litres per day to 200 people for three days is 15m3, the planned size of the tanks.

Where the water table is not deep, hand-dug wells instead of drilled boreholes will be prepared.

According to the wishes of the people in each tank commission and/or well-commission area, existing water supply structures can be upgraded to the requirements of this project and possession in them handed over to the tank commissions and well commissions who would then be responsible for their administration.

3.05 Institutional developments.

For a drawing of the institutional structures foreseen refer to:

DRAWING OF STRUCTURES.
CASH FLOW DIAGRAM.
HOW THE ORIGINAL SEED LOAN MONEY IS USED
THE INTEREST-FREE LOAN CYCLE

Permanent on-going procedures to maintain and administer the system will be worked out with the users themselves during Organization Workshops to be run for this purpose, with the involvement of Terry Manning as consultant, the project coordinator, the tanks and wells commissions, maintenance and inspection staff, and the local private bank that administers the micro-credit loans.

The purpose is to create a "maintenance culture".

Structures to be created include the Health Clubs, the local money systems, the Gypsum composites factories, systems for installation and maintenance of the drinking water supply system, waste recycling structures, structures for the production of bio-mass, the local banking and micro-credits system, the tank and well commissions, not to forget the local radio station.

Multiple re-cycled interest-free micro-credits will provide formal money needed to develop local production capacity. The rest of the development will be done with the LETS systems.

The capital available for re-cycling in the form of micro-credits is made of:
a) Part of the initial seed money until it is needed for the project.
b) Seed loan repayments.
c) Micro-credit repayments.
d) The long term maintenance fund.
e) The system capital replacement fund which will be built up after the ten years' seed loan has been fully repaid.

For instance, a woman may need a sewing machine to be able to make clothes. She will need "formal" currency to buy the sewing machine. That money will be available in the form of an interest-free micro credit. She will sell outside the local LETS system some of the clothes she makes to earn the "formal" money she needs to repay her loan. The rest of the clothes can be sold within the local currency LETS system.

As she repays her loan, the repaid capital can be loaned again for another interest free micro-credit project, so the available seed money repeatedly re-circulates within the local economy. <

Establishing local exchange trading (LETS) systems to overcome the chronic lack of "formal" money in the Waso Division is fundamental to the project. LETS systems create local currency units to exchange goods and services. They eliminate common complaints concerning the operation of development projects such as:

"There's no money to pay people to write out the water bills"
"There's no money to collect the monthly contributions"
"The people can't afford san-plats for their toilets"

Very often, all that is needed is a way to transfer goods and services within the community without having to use formal money.

We propose to make participation in the LETS systems compulsory for all people in the project area of working age because everybody will benefit from and participate in some of the community level initiatives undertaken within the project. For instance, PV lighting for study will be financed at local tank commission level and its costs written off against the users in that tank area only. Others, such as tree-planting or road building may benefit the whole community and every member will be charged for his share. Compulsory membership is also needed where common assets are being used or sold or when goods and services for the project have to be supplied in the local currencies.

Nearly all LETS transactions are open to normal "free market" negotiation between the parties.

Many goods and services like those provided by the Community Health Clubs, and those needed to build the sanitation and water supply services can be paid for using the LETS systems. We have included some formal currency estimates for these goods and services so that enough micro-credit loan money is available to start developing local production.

For more information on the nature and organisation of LETS systems, refer to Schedule 8.

LETS systems will be set up in Waso West, Waso West and Waso North.

3.06 PV lighting, television and refrigeration

A PV lighting system for study can be installed in each tank area once a study area has been built there using the local LETS currency. The cost of the study area would be equally debited to all LETS members in the tank area.

Enough money has been set aside in phase 4 of the project to cover 375 PV lighting systems.

The purchase of a PV operated TV set for each of study area is subject to discussion and has been listed "pro-memorium" in the budget. We have done this because:
- it is not known how much suitable educational material is available in the local languages (??????)
- the TV set would need to be safely housed in a weather-proof environment
- of maintenance and security problems

The purchase of PV lighting and refrigeration for clinics in the project area is covered.

PV lighting facilities for evening classes in schools has also been included in the budget. This has been set at two sets per school pending more information on the individual schools and their real needs with respect to evening classes.

3.07 Domestic solar home systems.

Home lighting in the project area is usually fuelled by wood and kerosene lamps and the average cost of which is about Euro 10 per family of 6 per month. Kerosine costs about Euro 0.50 per litre, and an average family uses about 20 litres per month. This outgo constitutes a serious financial leakage from the project area which should be stopped. Some families may be able to finance the purchase of solar home systems through savings effected on the costs of petroleum and, for instance, batteries consumed for radios. The project will set up a separate cooperative interest-free fund level under which solar home systems can be installed and more efficient radios purchased within interest-free self-terminating building society structures set up at tank commission level.

The tank commissions will decide the social priorities for the gradual distribution of these systems. They may for instance decide priorities by drawing lots. The seed fund is purely to set an example, and cannot supply more than 150-200 systems to launch the system. The rest of the money must come from the cooperative contributions made by the users participating.

The speed of the distribution of the systems will depend on the time required to reimburse the credits received by each family. A family accustomed to paying Euro 10 a month for lighting and batteries will be able to repay a system from savings within about 4 years. A poorer family would need more time. Alternatively each family can pay an affordable amount into the Tank Commission fund and new systems distributed by lot each time there is enough money in the fund.

Distribution of solar home systems is expected to commence in the last, phase 4, of the project. Various activities currently cause of financial leakage from the project area will then be taking place under the local money (LETS) systems, and it is conceivable that (some) users have more formal money available than before. They can therefore form buying cooperatives for solar home systems at tank commission level, whereby each family contributes an amount (eg Euro5) each month into its cooperative lighting fund. This would allow one family out of 20 to install a system each 16 weeks. This would mean that each family would have a solar home system installed within about 6 years after the start of the cooperative and the elimination of financial leakage from the project area due to lighting and radios within 6-7 years.

Financial leakage through the use of inefficient battery-driven radios could be stopped by the use of high efficiency radios and/or mechanical wind-up radios. It should be possible to recover the cost of the new radios through savings on batteries within one year.

3.08 Water harvesting for underground storage.

Arid conditions with a very low rainfall dominate the project area. Numerous water courses form in spacious catchment areas during the rainy season, often because of the limited capacity of the dry sandy soils to absorb  rainwater when it does fall.

For health reasons, and because of risk of  loss through evaporation, harvesting part of this water in open ponds and reservoirs is not considered a valid option.  An alternative is creating underground water storage facilities in or near river and stream beds for use for value cash crops during the dry season.

These storage facilities are of special interest to the local people. They will be placed in the vicinity of inhabited centres for small scale gravity drip irrigation of cultivated plots. Based on a water supply of 20m3 per day per hectare, water storage needed for a dry period of 200 days amounts to 40000m3 per hectare. Assuming each family cultivate an average area of 500m2, each hectare will contain gardens for 20 families. The total amount of water to be stored is 19.320.000m3. This represents an area of approximately 10km2 with a depth of 2 meters.

While most of the costs of constructing the tanks are expected to be covered under the local money systems, a reserve has been set up to meet imported costs eventually involved.

The tanks will become the property of the tank commission or the well commission in whose area they are built.

3.09 Local radio station.

The establishment of a local radio station is an integral part of the project. The station is a part of the management of communications concerning the project. Radio is an excellent way to spread information on the project developments and the management of the structures set up. It also enables users to discuss initiatives taken and to be taken, and to express their criticisms. It can also become a vehicle for local commerce.

The station will have two transmitters one placed in Kitta Many and one in Sere Olipi so as to limit the transmission radius. A PV operated station may be preferred to one running on "imported" electricity, as this increases the autonomy of the station and reduces long term financial leakage from the project area.

3.10 Educational structures

It is not the purpose of this project to substitute the state's obligations for the supply of proper scholastic structures in the project areas, except for safe drinking water, sanitation facilities, and, eventually PV lighting for evening classes.

Formal currency investments in school structures are not susceptible to the rapid interest-free re-cycling of funds at the basis of self-financing development projects.

Where, however, local school systems are mostly to the charge of the parents and there is an acute lack of:

a) Building infrastructure
b) School furniture
c) Didactic material
d) Teachers

it may in some cases be possible to improve circumstances under the project by taking advantage of the possibilities offered by:

>a) The local tank commissions
b) The local money LETS systems
c) The local Gypsum composites factories.

In practice any goods and services which are locally available can be paid for under the local money systems. These goods and services can include:

a) Gypsum composites elements, including load bearing structures, for school buildings
b) Gypsum composites school furniture
c) Services of teachers willing to work under the local money systems with salaries paid in the local LETS points
d) Reproduction of didactic material through PV television systems and/or through documentary reproduction by local consultants set up under the micro-credit systems.

Groups of parents and or groups of tank commissions can take initiatives under the local money systems and distribute their costs (expressed in LETS points) amongst the groups directly involved. In this sense the groups involved can be registered under the LETS systems in the same way as clubs or other social groupings.

The above comments apply both to basic education structures (primary and secondary schools) and to ("polytechnic") structures where young people can learn a trade after leaving school. The local people have indicated a high priority for this form of practical education. For these schools an application will have to be made to the Department of Education of the State of Kenya to contribute the remaining formal currency costs.

A fund has been set aside to enable the project to take practical steps to further educational structures in the project area.

3.11 Payments and on-going costs.

The following drawings and graphs form an integral part of this project proposal.

GRAPH SHOWING DEVELOPMENT OF MICRO-LOANS.
THE INTEREST-FREE LOAN CYCLE.
HOW THE ORIGINAL SEED LOAN MONEY IS USED.
TYPICAL PROJECT EXPENDITURE BY QUARTER (Items 1-28 of the budget).
TYPICAL PROJECT EXPENDITURE BY QUARTER (Items 29-58 of the budget)
TOTAL EXPENDITURE PER QUARTER
DETAILED EXPENDITURE PHASE TWO
DETAILED EXPENDITURE PHASE THREE
DETAILED EXPENDITURE PHASE FOUR
DETAILED EXPENDITURE FIRST QUARTER
DETAILED EXPENDITURE SECOND QUARTER
DETAILED EXPENDITURE THIRD QUARTER
DETAILED EXPENDITURE FOURTH QUARTER
DETAILED EXPENDITURE FIFTH QUARTER
DETAILED EXPENDITURE SIXTH QUARTER
DETAILED EXPENDITURE SEVENTH QUARTER
DETAILED EXPENDITURE EIGHTH QUARTER
DETAILED EXPENDITURE NINTH QUARTER
DETAILED FINAL EXPENDITURE

The people of the Waso Division area in the Samburu County in Kenya are poor and plagued by a low quality of life. The initial seed capital will therefore come from donors in the form of an interest free loan repayable over a period of ten years.

The users will pay a monthly fee to be decided during phase 2 of the project. It is expected to be the equivalent in Kenyan shillings approximately Euro 0.65 per family member (or the equivalent in Kenyan shillings of Euro 3.90 per month for an average family of six. This sum will be used:

- to repay the loan itself. This money will be re-cycled interest-free for use as micro-credits to develop local production capacity.

- to pay on-going administration and maintenance costs. This money pays the monthly fees of the project coordinator and the salaries and transport costs of maintenance and inspection personnel and of the tank commissions.

- to set up reserves for long term maintenance. These funds will also be re-cycled for micro-credits but managed so that the capital is available when it is needed.

Once the original seed money has been repaid, the monthly payments will create a large fund for use to extend the basic services provided under this project.

The whole cost of the Gypsum composites production units will be covered by interest-free loans repayable over 4 years. This capital can also be re-cycled as it is repaid.

There will be large savings in the traditional cost of fuel for cooking. The savings will come from using high efficiency Gypsum composites  stoves and local production of bio-mass for fuel.

Provision of drinking water under the project will help avoid health hazards, improve productivity, and avoid the need to purchase expensive water from vendors in the larger communities.

Waste re-cycling under the project will produce savings by creating value added from resources currently unused and because payments for collection and handling of the waste will be kept inside the local economy.

4. Work Plan

4.1 First, initial, research phase

Relevant details have been collected and a budget developed. Contacts have been made with potential suppliers and the basic project technologies selected. The project coordinator has contacted the local people to discuss their wishes and willingness and ability to meet any net financial commitments under the project after taking into account direct savings.

Users have accepted the five conditions precedent to the success of self-financing development projects of the type here presented:

4.1.1 Acceptation of Health Clubs. These do not only serve the purposes of offering basic hygiene education courses. They also serve as a platform for women, so that they can organise themselves and participate and play an important role in the various structures foreseen. The health clubs therefore constitute a means of addressing the so-called "gender problem".

4.1.2 Willingness to pay the equivalent in Kenyan shillings of at least Euro 0.75 per family member (or the equivalent in Kenyan shillings of at least Euro 4.50 per month per average family of 6) into the Waso Cooperative Development Fund. This payment covers the entire package of basic services foreseen (hygiene education, drinking water supply, sanitation, waste removal, high efficiency stoves and fuel for them, and lighting for study purposes.

4.1.3 Acceptance of the use of local exchange trading (LETS) systems, which enable goods and services originating in the project area to be exchanged without the need for formal money.

4.1.4 Acceptance of the GYPSUM COMPOSITES process which enables most of the items required for local development to be made locally with 100% local value added within the framework of the local LETS systems in local low cost labour intensive production units.

4.1.5 Acceptance of industrial quality dry composting toilet systems with the separation of urine and excreta. Aspects relating to the form, the colour, the finish, privacy and similar will all be discussed with and decided by the users. The dry toilet systems foreseen enable waste to be recycled at household level so that problems connected with the pollution of surface and ground water can be addressed at local level without the need for major investments.

The key project sites including clinics and schools are shown on the map of the project area and on the settlement schedules, all of which are included in Schedule 3.

There is no budget included for the work during this first phase which has been carried out free of charge.

4.2 Second phase lasting about 9 months.

DETAILED EXPENDITURE PHASE TWO
GRAPH SHOWING DEVELOPMENT OF MICRO-LOANS

THE INTEREST-FREE LOAN CYCLE.
HOW THE ORIGINAL SEED LOAN MONEY IS USED.
TYPICAL PROJECT EXPENDITURE BY QUARTER (Items 1-21 of the budget).
TYPICAL PROJECT EXPENDITURE BY QUARTER (Items 22-58 of the budget).
DETAILED EXPENDITURE FIRST QUARTER.
DETAILED EXPENDITURE SECOND QUARTER.
DETAILED EXPENDITURE THIRD QUARTER.

This is the most critical phase during which the basic structures necessary for the operation of the entire system are set up by way of a series of organizational workshops following the method introduced by the Brazilian sociologist Clodomir Santos de Morais.

Refer to Schedule 2 for some material and a bibliography on Organisational Workshops.

BIBLIOGRAPHY
ORGANIZATION WORKSHOPS

The sequential order of the workshops is very important. The first workshops are the ones setting up the Health Clubs, which offer women a platform from which they can organise themselves. After that, the tanks commissions, which are the heart of the system, can be established. The third structure is the local money LETS systems, followed by the micro-credit system, the Gypsum composites factories, the water supply system, the recycling system and the radio station.

4.2.0 PAYMENT OF THE PROJECT FUNDS

A plan for the effective payment of the project funds to the local NGO is prepared.

Since the local Waso Cooperative Local Development bank will be instituted later on, if no suitable banking institution is present in the project area, the funds will have to be paid into a temporary account in the name of the NGO in Nairobi or the nearest larger town with a suitable bank.

4.2.1 HEALTH CLUBS AND HYGIENE EDUCATION IN SCHOOLS.

4.2.1.1 Health clubs.

The Health Clubs must form a socially acceptable platform to get users, and especially women, to work together as this is the base of the project. They will create a forum for women, so that they can identify the needs of the community and participate fully in the planning and execution of the structures to be set up.

Three Moraisian workshops will probably be held (one in Waso West, one in Waso East; and one in Waso North) during which draft Health Clubs rules will be prepared and discussed with the local people so the community fully "owns" the project. The Health Clubs will be a socially acceptable method of getting people used to working together, the cornerstone for a successful project. Local Health Workers will be trained to lead Health Club discussions. Material for the Health Clubs and for hygiene education courses in schools will be adapted, preferably using local artists. Preference will be given to the use of traditional local art styles.

Indicative participation (all workshops together)

The Moraisian trainers
The project coordinator
The Zimbabwe AHEAD Consultant
Representative of the ONG
At least 5 observers (possible coordinators for future projects)
20 qualified istructors indicated by the Ministry of Health to guide the Health Club lessons
300 female initiative takers at the level of the future Tank Commissions.

Duration of each workshop: about three weeks.

The Workshops will be expected to produce the following structures:

a) A system coordination structure for coordination:
- with the project coordinator
- amongst the main project areas
- with the Health ministry
- amongst the Health Ministry trainers and the women locally responsible
- the statues and ruls for the running of the clubs

b) A materials structure
- discussion with potential members of the Health Groups
- definition of the content of the courses according to local requirements
- adaptation of the material according to local customs (illustrations, languages etc)
- actual physical preparation of the course
- distribution of the material

c) A methodical structure
- how to use the material
- the role of the Health Ministry specialists
- the role of the local Health Club leaders
- practical exercises
- how to call meetings and lead the first lessons
- continuation of the Health Clubs after the termination of the courses

d) A communications structure
- vertical, at project level (coordinator, Health Clubs leaders, Health ministry teachers)
- horizontal, amongst local Health Club leaders, (future) radio programme

e) A structure at local Tank Commission level

- Payment of the local Health Club leader once the local money systems have been formed - Relationship between the local Health Club leader and the (future) Tank Commission - Relationship between the local Health Club leader and the Health ministry teacher responsible for the area - Discussion with persons (women) interested in the (future) local Tank Commission - Registration of Health Club members - Practical organisation of the lessons and later group meetings

BASIC INDICATIVE COURSE FOR HEALTH CLUBS.

4.2.1.2 Hygiene Education in the Schools

One Moraisian workshop will be held during which Local Health Workers will be trained to lead hygiene education courses in the schools. Material for the courses in schools will be adapted, preferably using local artists. Preference will be given to the use of traditional local art styles.

The Moraisian trainers
The project coordinator
The Zimbabwe AHEAD Consultant
Representative of the ONG
Representative of the Health Ministry
Representative of the Education Ministry
At least 5 observers (possible coordinators for future projects)
20 qualified instructors indicated by the Ministry of Health to guide the lessons
50 teachers from the schools

Duration of each workshop: about three weeks.

The Workshops will be expected to produce the following structures:

a) A system coordination structure for coordination:

- with the project coordinator- with the Health ministry
- with the Education ministry
- amongst the Health Ministry trainers and the teachers' commissions

b)A materials structure:
- discussion of course content according to the different levels of the pupils
- definition of the content of the courses according to age groups (illustrations, language etc)
- adaptation of the material according to local customs (illustrations, languages etc)
- actual physical preparation of the course
- distribution of the material

c) A methodical structure
- how to use the material
- the role of the Health Ministry specialists
- the role of the teachers
- planning the courses
- continuity

d) A communications structure
- vertical, at project level (coordinator, Health ministry specialists, teachers' commissions)
- horizontal, amongst the teachers' commissions and the families, (future) radio programme

e) Formalities
- Payment in local LETS currencies of the teachers involved.

4.2.2 LOCAL SOCIAL STRUCTURES

Three Moraisian workshops will be held, one in Waso West, one in Waso East and one in Waso North. The Tank Commissions form the basic project structure and the workshops can involve up to 1500 people.

Indicative participation (all workshops together)

The Moraisian trainers
The project coordinator
Consultant Terry Manning
Representative of the ONG
Representative of the Finance Ministry
Representative of the Rural Development ministry
At least 5 observers (possible coordinators for future projects)
1300 (mostly female) persons interested in participating with responsibility for the management of projects structures as members of the Tank Commissions. 35% of these people might be indicated by the traditional chiefs, 65% by the local Health Clubs.

Duration of each workshop: about four weeks.

The Workshops will be expected to produce the following structures:

a) Definition of the social form of the tanks commissions and the well commissions
- statutes
- rules
- financial aspects
- definition of the tasks

b) Organisation
- meetings
- use of tanks and well areas

c) Coordination
- with project coordinator
- (future) local SEL-LETS system
- between local tank commissions and the well commission
- with local schools
- with local clinics/hospitals
- with (future) recycling systems
- with (future) micro-credit structures

d) A communications structure
- vertical, at project level (coordinator)
- horizontal, with the +/- 40 local families

e) Individual initiatives

- Payment of the local Health Club leaders once the local money systems have been formed - Relationship between the local Health Club leader and the (future) Tank Commission - Relationship between the local Health Club leader and the Health ministry teacher responsible for the area - Discussion with persons (women) interested in the (future) local Tank Commission - Registration of Health Club members - Practical organisation of the lessons and later group meetings

4.2.3 THE LETS LOCAL MONEY SYSTEMS

For detailed information on LETS systems refer to appendix 8

Three Moraisian workshops will be held, one in Waso West, one in Waso East and one in Waso North, for each local money LETS system.

Indicative participation (all workshops together)

The Moraisian trainers
The project coordinator
Consultant Terry Manning
2 representatives of the ONG
Representative of the Finance Ministry
Representative of the Rural Development ministry
At least 5 observers (possible coordinators for future projects)
100 persons, indicated by the well commissions, who will have indicated their interest in registering transactions
400 persons (men and women) indicated by the Tank Commissions interested in taking responsibility for the management of the LETS systems at tank commission level.

Duration of each workshop: about six weeks.

The Workshops will be expected to produce the following structures:

a) Definition of the social form of the LETS structures
- statutes
- rules
- professional and administrative structures
- financial aspects
- relationships with other non-formal local money systems

b) Structure for the registration of transactions
- physical working space (offices)
- adaptation of environments against weather and dust
- safety and back-up procedures to protect information
- purchase of computers, printers, equipment for registration of members et electrical connections eventually using PV
- distribution of physical structures: LETS boxes, notice boards
- preparation of cheques or other instruments of exchange to be used
- publication of the services available within the system

c) Coordination with users
- preparatory meetings with users at tank commission level
- presentation of the local coordinator
- registration of members
- distribution of cheques or other instruments of exchange
- starting transactions

d) A communications structure
- vertical, at project level (project coordinator, transaction registrars, those responsible at tank commission level, users)
- horizontal, with the various persons responsible at the same level (amongst transaction registrars, amongst tank commission level operators)
- horizontal, amongst local money systems
- commercial, radio, website

4.2.4 MICRO CREDIT SYSTEM STRUCTURES.

For details of how the system works, refer to:

CHART ILLUSTRATING DEVELOPMENT OF THE MICRO-LOANS SCHEME
HOW THE ORIGINAL SEED LOAN MONEY IS USED
THE INTEREST-FREE LOAN CYCLE

The Waso Cooperative Local Development Bank will manage formal currency funds necessary for running the project, acting on instructions of the project coordinator given on receipt of the indications received from those responsible at tank commission level. The funds do not belong to the bank, which will intervene only in the practical management and transfer of the funds. The decisions are taken by the users' structures set up under the project. The funds formally belong to the users until the expiry of the 10 years' interest-free credit term. The interests of the financing parties are protected by their representatives nominated to the board of the ONG, who will be invited to participate in the workshop.

The services of the bank will be paid in local LETS monies at a fixed rate per transaction to be set during the workshop. The bank can then use its LETS credits to purchase goods and services inside the project area and sell them for formal money outside the project area.

One Moraisian workshop will be held to prepare the Bank structures.

Indicative participation

The Moraisian trainers
The project coordinator
Consultant Terry Manning
2 Representatives of the ONG acting on behalf of the financing parties
Representative of the Finance Ministry
Representative of the Rural Development ministry
At least 5 observers (possible coordinators for future projects)
At least 6 qualified persons, 3 indicated by the ONG and 3 by the project coordinator
350 persons, indicated by the tank commissions, interested in participating with responsibility for credit arrangements at tank commission level.

Duration of the workshop: about six weeks.

The Workshop will be expected to produce the following structures:

4.2.4.1 The bank

a) Definition of the social form
- statutes
- rules
- professional and administrative structures
- financial aspects
- relations with the LETS local money systems

b) Physical aspects
- land
- office
- safety
- communications

c) Financial aspects (Definition of initiatives at each structural level. How much money is to be distributed at each level?)

- funding of initiatives at general project level (recycling structures, important productivity initiatives, public works)
- funding of initiatives at intermediate, well commission, level
- funding of initiatives at local tank commission level
- funding of socially based initiatives (clubs, interest groups etc)
- traditional banking activities

4.2.4.2 Organisation of operations

a) Central structure

b) De-centralised structure
- Preparation operators
- Meetings at tank commission level

c) Coordination
- With LETS structures
- With tank commissions
- With project coordinator

d) Financing of specific projects
- Relations with financiers

e) Communications structure
-Vertical, at project level (project coordinator, transactions operators, tank commission level operators, end users)
Commercial, radio, website

4.2.5 GYPSUM COMPOSITES PRODUCTION UNITS.

For information on the Gypsum composites process refer to:

NOTES ON GYPSUM COMPOSITES.
PREPARATION OF GYPSUM COMPOSITES PRODUCTS.

Three Moraisian organisational workshops will be held, one for each production unit planned. Localities to be decided in accordance with the local availability of gypsum or anhydrite or the need to import it into the project area.

Indicative participation (all workshops together)

The Moraisian trainers
The project coordinator
Consultant EOS Consult
At least one representative of the NGO
Representative of the Ministry of Health
Representative of the Rural Development ministry
At least 5 observers (possible coordinators for future projects)
150 persons (men and women), indicated during meetings held at Tank Commission level, interested in participating in the activities of the factories. Where opportune, according to local political structures and traditions, up to 25% of the people could be indicated by the local chiefs.

Duration of each workshop: about six weeks.

The Workshops will be expected to produce the following structures:

a) Definition of the social form of the production units
- statutes
- rules
- professional and administrative structures
- financial aspects
- relationship with the local LETS systems

b) A structure for the supply of materials
- geological research for gypsum and/or anhydrite deposits
- locations of gypsum/anhydrite quarries, permits
- activities preparatory to exploitation
- logistics
- coordination of materials depots with the factories

c) Definition of the items to be made (tanks, toilets, stoves, solar cookers etc)
- coordination with the other production units (specialisation)
- contacts with families
- definition of requirements : articles and specifications
- definition of requirements : design, productive capacity
- definition of the necessary procedures
- preparation of moulds
- tests
- decision on priorities to be given to the various items

d) A structure for the factories
- land and necessary structures
- design of factories
- construction of factories
- purchase of necessary equipment

e) A production structure
- organisation of the production
- commercial organisation

f) A structure for the installation of the items produced
- Relationship factory-installers
- Preparation of the installers
- Installation
- Siting of boreholes/wells
- After sales backup and service

g) A structure for communications
- Vertical, at project level (project coordinator, factory manager, factory commissions, installers, end users)
- Horizontal, between production units
- With the local money LETS systems
- Commercial, radio, website

4.2.6 THE RECYCLING STRUCTURES

A special fund is included in the budget to cover the costs of setting up the recycling structures, which have priority. The funds will be repaid by the beneficiaries in the same way as those made available to the Gypsum composites factories. They will take the form of interest-free credits repayable according to the real possibilities of those involved as decided during the organisational workshops during which the structures are set up. The repayments will be financed by sale of materials such as fertilisers and compost outside the project area and by the "exportation" of solid non-organic waste which are not recyclable within the project area itself. For an illustration of a possible general structure for the integrated recycling of waste in project areas refer to:

DRAWING OF WASTE DISPOSAL STRUCTURES.

The work of the recycling structures will be carried out within the local money LETS systems already set up. One of the more interesting features of LETS systems is that, in contrast with what happens in the western monetised economies, work considered as "dirty" and/or "heavy" is usually better paid than "clean" and/or "light" work as the rates charged will normally be related to the perceived value of an hour's work in the foreseeable normal working situation.

Two Moraisian workshops will be held, one for each LETS local money system.

Indicative participation (both workshops together)

The Moraisian trainers
The project coordinator
Consultant Terry Manning
At least one representative of the ONG
Representative of the Finance Ministry
Representative of the Health Ministry
Representative of the Rural Development ministry
At least 5 observers (possible coordinators for future projects)
150 persons (male and female)indicated by the tank commissions, interested in participating.

Duration of each workshop: about six weeks.

The Workshops will be expected to produce the following structures:

a) Definition of the social form of the structures
- statutes
- rules
- professional and administrative structures
- financial aspects including relations with the Micro-credit institution
- relations with the local money LETS systems

b) Analysis of requirements

c) A structure for the recycling centres
- Definition of the land requirements and the physical structures necessary
- formalities and permits
- design of the centres
- construction of the centres
- purchase of the necessary equipment

d) A structure for the collection/deposition of waste
- urine
- composted excreta
- waste water
- other organic waste
- non organic solids
- special industrial wastes
- medical wastes
- who will do what
- definition of individual zones
- definition of specialisations

e) A commercial structures
- definition of the tariffs applicable to the various types of material
- distribution of urine and composted excreta
- direct recycling of certain materials
- contacts for the exportation of materials not recyclable locally

f) A monitoring structure
- sanitary conditions
- ecological conditions
- safety conditions

g) A communications structure
- vertical, at project level (coordinator, centre managers, collection structures, end users)
- horizontal, between centres
- relations with local money LETS systems
- commercial, radio, website

4.2.7 STRUCTURES FOR THE PRODUCTION OF BIO-MASS FOR STOVES.

For a typical possible high efficiency stove design refer to:

DRAWING OF TYPICAL HIGH EFFICIENCY GYPSUM COMPOSITES STOVE.

The structures foreseen are for the production of mini-briquettes for the stoves to be made by the Gypsum composites production units and for the production of bio-masse to make the mini-briquettes.

One Moraisian workshop will be held.

Indicative participation

The Moraisian trainers
The project coordinator
Consultant Terry Manning
Consultant EOS advises
At least one representative of the ONG
Representative of the Health Ministry
Representative of the Rural Development ministry
At least 5 observers (possible coordinators for future projects)
50 persons indicated by the tank commissions interested in the production of mini-briquettes
150 persons indicated by the tank commissions, interested in producing bio-masse for the mini-briquettes.

Duration of the workshop: about four weeks.

The Workshop will be expected to produce the following structures:

a) A coordination structure
- definition of the social form
- statutes
- rules
- professional and administrative structures
- financial aspects including payments
- relations with the local money LETS systems

b) Analysis of requirements
- detailed analysis of the present systems
- demand in the project area
- demand outside the project area

c) Analysis of the bio-masse resources available

d) Definition of the recipes (mixtures) socially acceptable

e) Creation of the physical structures for briquette production

f) Logistics
- Assembly and stocking of materials
- distribution of mini-briquettes

g) Organisation of the cultivation of bio-mass

h) Commercial
- Availability of micro-credits for growers
- Availability of micro-credits for briquette makers
- Prices for briquette distribution according to the various mixtures

4.2.8 STRUCTURE FOR THE RADIO STATION.

The establishment of a local radio station is an integral part of the project. The station is a part of the management of communications concerning the project. Radio is an excellent way to spread information on the project developments and the management of the structures set up. It also enables users to discuss initiatives taken and to be taken, and to express their criticisms. It can also become a vehicle for local commerce.

The station will have two transmitters one placed in Kiia Han and one in Sere Olipi so as to limit the transmission radius. A PV operated station may be preferred to one running on "imported" electricity, as this increases the autonomy of the station and reduces long term financial leakage from the project area.

The management of the station will be completely autonomous.

Without influencing this independence in any way, the programme could indicatively comprise the following elements:

(a) Transmission of information on project activities (news bulletins)
- Convocation of meetings for structures (tanks commissions, LETS systems etc)
- Information on decisions taken during meetings
- Information on progress made with the installation/setting up of the various structures
- Information of interest-free micro-credits conceded

(b) Transmissions by interest groups
- Initiatives the groups wish to take
- Information on initiatives under way

(c) Information on cultural and sporting activities in the project area

(d) Emergency services

(e) Promotion of the project towards the outside.

FINANCING

The setting up of the station is covered by a separate item in the indicative balance sheet.

The workshop must decide how the station reimburse this interest-free credit.

- Work is carried out under the local LETS money systems - Expenses in formal currency (electricity?, equipment and the costs of running it) would need to be paid back over 3 or 4 years. How:
-a) Collection of a small (formal currency) contribution at household level?
-b) Payments for services rendered to people living in the areas surrounding the project area
- c) Advertising by producers in the project area towards people living in the surrounding areas Usually just one Moraisian workshop will be held in a given project area.

Indicative participation

The Moraisian trainers
The project coordinator
Consultant Terry Manning
At least one representative of the ONG
Representative of the Ministry of Communications
At least 5 observers (possible coordinators for future projects)
20 persons indicated by the tank commissions interested in participating in the management of the station.
50 persons indicated by the tank commissions, interested in producing programmes for the station

Duration of the workshop: about three weeks.

The Workshop will be expected to produce the following structures:

a) A coordination structure
- definition of the social form
- statutes
- rules
- professional and administrative structures
- financial aspects including payments
- relations with the local money LETS systems

b) Analysis of requirements
- detailed analysis of the communications needs of the individual structures created under the project
- demand in the project area
- demand outside the project area

c) Material structure
- Land
- Permits
- Office/studio
- Transmission equipment
- Equipment for production and storing of programmes

d) Logistics
- Transport
- Storage of materials
- Organisation of network

4.2.9 STRUCTURES FOR THE DRINKING WATER DISTRIBUTION SYSTEM.

DRAWING OF WATER SYSTEM STRUCTURES.
DRAWING OF TYPICAL WATER TANK AREA

One Moraisian workshop will be held.

Indicative participation

The Moraisian trainers
The project coordinator
Consultant Terry Manning
Consultant EOS Consult
At least one representative of the NGO
Representative of the Health Ministry
Representative of the Rural Development ministry
At least 5 observers (possible coordinators for future projects)
30 persons indicated by the tank commissions interested in the systematic maintenance of the structures
80 persons indicated by the tank commissions, interested in drilling boreholes, drilling wells and building the associated civil and associated works

Duration of the workshop: about four weeks.

The Workshop will be expected to produce the following structures:

a) A coordination structure
- definition of the social form
- statutes
- rules
- professional and administrative structures
- financial aspects including payments
- relations with the local money LETS systems

b) Analysis of requirements
Refer to Schedule 1 for full details)

c) Hydro-geological research

d) Preparation of maps showing:
- sites of boreholes and wells
- tank sites
- feed-pipe installation lines

e) Specifications
- Work bases/depots
- Boreholes/wells
- Solar pumps
- Hand pumps
- Washing areas
- Solar panels
- Panel supports
- Borehole/well surroundings
- Laying of pipelines
- Installation tanks
- Eventual installation of UV purification units
- Training of well commissions
- Training of tank commission

f) Permits

g) The civil works
- Base for storage of equipment and materials
- Formation of teams
- Planning of works
- Logistics
- Equipment and materials

h) Installation of the structures

i) Maintenance
- Creation of the maintenance structure
- Relations with suppliers
- Importation and management of spare parts
- Planning of preventive maintenance
- Maintenance kits
- Monitoring system
- System of statistics

f) Logistics
- Assembly and stocking of materials
- distribution of mini-briquettes

g) Organisation of the cultivation of bio-mass

h) Commercial
- Availability of micro-credits for growers
- Availability of micro-credits for briquette makers
- Prices for briquette distribution according to the various mixtures

4.3 THIRD, IMPLEMENTATION PHASE

The structures created during the second phase execute the works they have planned:
- On-going work in the Community Health Clubs
- On-going hygiene education in schools
- On-going operation of the local LETS currency systems
- Start-up of the Micro-credits
- Start-up of recycling
- Start-up of mini-briquette and bio-mass production
- Completion of Gypsum composites  production units
- Start-up production of Gypsum composites  items for the project, including stoves and solar cookers
- Digging and lining of the wells and boreholes
- Construction of platforms for backup hand-pumps
- Construction of washing places
- Laying of water pipelines to the tanks
- Installation of the tanks.
- Installation of purification devices at schools and clinics
- Start-up of waste collection networks
- Installation of solar panels and pumps
- Installation of hand pumps
- Production of sanitation units started
- Operation of radio station

DETAILED EXPENDITURE PHASE THREE
DETAILED EXPENDITURE THIRD QUARTER.
DETAILED EXPENDITURE FOURTH QUARTER.
DETAILED EXPENDITURE FIFTH QUARTER.
DETAILED EXPENDITURE SIXTH QUARTER.
DETAILED EXPENDITURE SEVENTH QUARTER.

4.4 FOURTH, SECOND IMPLEMENTATION PHASE

On-going production of Gypsum composites  products
- PV lighting for study
- (Pro-memorium) PV television for study purposes
- PV lighting in schools
- PV lighting and refrigeration in clinics in the project area
- Further PV water purification
- (Pro-memorium) Soil conservation and reforestation initiatives started
- (Pro-memorium) Rainwater harvesting begun

DETAILED EXPENDITURE PHASE FOUR
DETAILED EXPENDITURE EIGHTH QUARTER.
DETAILED EXPENDITURE NINTH QUARTER.
DETAILED FINAL EXPENDITURE.

5. Short indicative budget

Item

Outgo (Capital)

Phase

Estimate (Euro)

01

OW health clubs

2

30.000

02

Formation of health clubs

2

10.000

03

Material for health clubs

2

5.000

04

Training of health workers

2

10.000

05

OW health courses in schools

2

10.000

06

Material for school courses

2

2.500

07

OW social structures

2

40.000

08

OW LETS systems

2

60.000

09

Office and equipment LETS systems

2

30.000

10

OW Micro-credit system

2

20.000

11

Office/equipment Micro-credit system

2

10.000

12

OW Gypsum composites production units

2

30.000

13

Shovel/preparation anhydrite supply site

2/3

10.000

14

Construction and equipping anhydrite factory (*20000 FOR EACH FACTORY) ASSUMING 3 UNITS

2/3

60.000

15

Moulds for anhydrite products (*20000 FOR EACH FACTORY) ASSUMING 3 UNITS

2/3

60.000

16

Location gypsum depots and quality control

2

3.000

17

OW recycling system

2

30.000

18

Setting up recycling centre network

3

 90.000

19

Setting up compost collection network

3

5.000

20

OW Bio-mass system

3

15.000

21

OW Drinking water system

2/3

25.000

22

Setting up of project workplace

2

32.000

23

Project transport

2

100.000

24

Vehicles and materials for wells

3

150.000

25

Fuel and maintenance vehicles

3

26.000

26

Drilling/lining costs

3

300.000

27

Labour for wells - LETS systems

3

pro-memorium

28

42 Washing places- LETS systems

3

pro-memorium

29

42 Platforms for hand-pumps - LETS systems

3

pro-memorium

30

271 Solar Pumps

3

267.000

31

271 Supports for solar panels

3

75.000

32

Solar panels (113.2 kW)

3

396.800

33

Hand-pumps groups (124 pumps)

3

80.000

34

Cables, feed-pipe for pumps/wells

3

98.000

35

Pipe lines from wells to tanks - 50000m @ Euro 0.65

3

32.500

36

Labour for laying water pipelines- LETS

3

pro-memorium

37

271 Water tanks (@ 2m * 1.7m)- mostly LETS

3

40.000

38

271 Bases for water tanks - mostly LETS

3

20.000

39

Supervision of installation and training maintenance operators

3

15.000

40

Purchase spare parts supplies

3

20.000

41

Permits and formalities

2

1.000

42

Preparation and formulation of project specifications

2

6.000

43

50 Solar water purification installations for clinics and schools

3

25.000

44

450 Solar water purification installations (inc.15.000 Wp panels)

4

  68.500

45

271 PV lighting units for study purposes

4

200.000

46

PV television for study

4

pro-memorium

47

20 PV lighting systems for schools

4

38.000

48

PV lighting for clinics outside the project area

4

pro-memorium

49

PV lighting for clinics inside the project area

4

25.000

50

PV refrigeration for clinics @ Euro 5000/clinic

4

25.000

51

Water testing equipment

4

5.000

52

Transport costs Euro to Kenya

2/3

30.000

53

Transport costs internal to Waso

2/3

22.500

54

Administration and supervision at Waso Kenya

3/4

36.000

55

Fee Project coordinator @Euro 50000/year

1/5

100.000

56

General project consulting Manning @Euro 50000/year

1/5

100.000

57

Fund for PV lighting solar home systems

4

130.000

58

Sanitation facilities with exception of some additives will be manufactured and installed within the local LETS systems

3/4

15.000

59

OW radio station

4

25.000

60

Fund for radio station

4

52.000

61

Fund for underground storage reservoirs

4

150.000

62

Fund for trades schools

4

100.000

63

Reserves approx 10.35% of total

5

388.200

62

General total

5

3.750.000

SHORT ANALYSIS

ON-GOING COSTS

INCOME

Comments

1. The above net income is sufficient to finance and repay an interest free loan for Euro 3.750.000 over a period of 10 years, taking the various reserves into account.
2. Interest-free loan for Gypsum composites  each factory Euro 40.000, for repayment over a period of 3-5 years is included in the above figures.
3. At the end of the ten years' period, on repayment of loan, large capital reserves will be built up for use in Micro-credits and, subsequently, for the extension and renewal of the capital goods.
4. Payments for water facilities for schools and clinics are included in the users' monthly contributions.
5. Payments and financing for eventual PV lighting and refrigeration facilities in clinics within the project area are covered in the users' contributions. Those for clinics and schools outside the project area partly serving users within the project area to be discussed.
6. Payments for PV lighting installations for study purposes will be financed by each tank commission area separately.
7. Savings on the purchasing of bio-mass for cooking and the costs of drinking water will at least partly offset the costs of the project.

GRAPHS FORMING AN INTEGRAL PART OF THE PROJECT DOCUMENT

GRAPH SHOWING DEVELOPMENT OF MICRO-LOANS.
CASH FLOW DIAGRAM.
THE INTEREST-FREE LOAN CYCLE.
HOW THE ORIGINAL SEED LOAN MONEY IS USED.
TYPICAL PROJECT EXPENDITURE BY QUARTER - budget items 01-29.
TYPICAL PROJECT EXPENDITURE BY QUARTER - budget items 30-58.
PROJECT EXPENDITURE BY QUARTER.
EXPENDITURE PHASE 2.
EXPENDITURE PHASE 3.
EXPENDITURE PHASE 4.
DETAILED EXPENDITURE FIRST QUARTER.
DETAILED EXPENDITURE SECOND QUARTER.
DETAILED EXPENDITURE THIRD QUARTER.
DETAILED EXPENDITURE FOURTH QUARTER.
DETAILED EXPENDITURE FIFTH QUARTER.
DETAILED EXPENDITURE SIXTH QUARTER.
DETAILED EXPENDITURE SEVENTH QUARTER.
DETAILED EXPENDITURE EIGHTH QUARTER.
DETAILED EXPENDITURE NINTH QUARTER.
DETAILED FINAL EXPENDITURE.

THE INTEREST-FREE MICRO-CREDIT LOANS SYSTEM

GRAPH SHOWING DEVELOPMENT OF MICRO-LOANS.
THE INTEREST-FREE LOAN CYCLE.
HOW THE ORIGINAL SEED LOAN MONEY IS USED.

The funds recycled are approximately 18.439.540 Euro. They are made up of:

a) Repayments of the interest-free seed loan itself. These are shown as horizontal lines at the bottom of the micro-loans graph. They are constant. During quarters 42-45 the amounts left for repayment UNDER THE PROJECT are reduced to zero. However users continue to make monthly contributions on their own account, so the recycling of funds will in practice continue. The capital fund will build up again as shown in the micro-loans graph. It will drop again when replacements of the original capital goods are made or the system services extended. It will then build up for a third time to cover further collective capital investments and so on for so long as the users continue making their monthly contributions.

b) Certain capital sums (e.g. repayments for the Gypsum composites  factories) and reserves.

c) Repayments under the micro-loans. These are seen as diagonal lines in the micro-loans graph. Towards the end of the project period, payback times are shortened to ensure capital re-enters in time for repayment of the original seed loan.

LIST OF SUPPORTING SCHEDULES

Schedule 1 : The project in detail
Schedule 2: Information on Clodomir Santos de Morais and the Organisational Workshops:
BIBLIOGRAPHY ORGANIZATION WORKSHOPS
BASIC INFORMATION
Schedule 3: Project maps.
Schedule 4: Solar submersible horizontal axis piston pumps.
Schedule 5: Spring rebound inertia hand pumps
Schedule 6: Gypsum composites technology:
NOTES ON GYPSUM COMPOSITES
PREPARATION OF GYPSUM COMPOSITES PRODUCTS
Schedule 7: Health Clubs courses.
Schedule 8: Information on LETS local money systems
Schedule 9: A list of 25 progressive steps for development
Schedule 10: Material for presentations using transparents or Powerpoint
Schedule 11: NGO Paran : Statutes and information
Curriculum of Peter Gatuna


ACKNOWLEDEGMENTS

The authors express their thanks to the following persons who made very useful suggestions incorporated in the original model project:

Mr L.F.Manning,
New Zealand, who also painstakingly re-edited the early drafts of the Model
Mr Taake Manning, Netherlands
Mr Eric Meuleman, of EOS Advises, Netherlands
Mrs Juliet Waterkeyn, of Zimbabwe AHEAD, Zimbabwe


Details of the Waso project.


List of draft projects in English and in French.

Main project programme.

Model homepage.

Bakens Verzet homepage.
